IKSEMICONDatasheet (PDF)

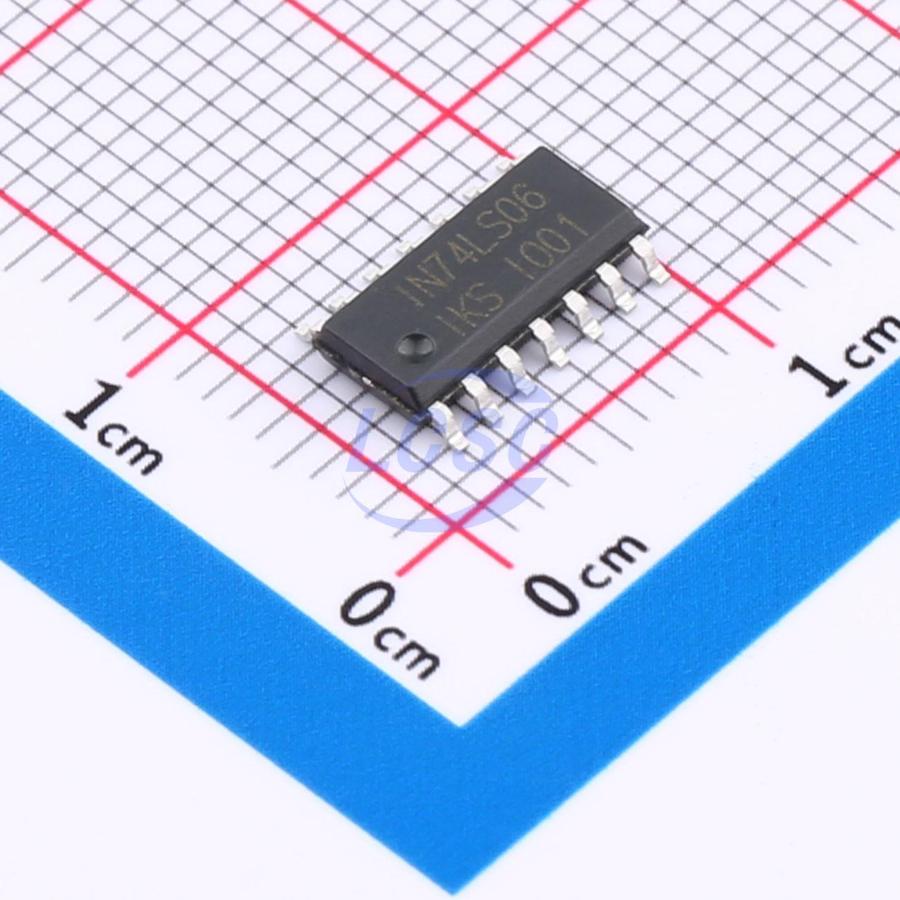

IN74LS06DT
4.75V~5.25V 20ns@5V,15pF 6 SOIC-14 Gates and Inverters
SOIC-14RoHSActive
Hex Inverted Buffers with Open-Collector Outputs
- Manufacturer
- IKSEMICON
- Manufacturer part #
- IN74LS06DT
- Store part #
- C19725829
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C19725829
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.39 | ₹176.95 |
| 50+ | ₹31.32 | ₹1,566.00 |
| 150+ | ₹29.57 | ₹4,435.50 |
| 500+ | ₹27.39 | ₹13,695.00 |
| 2,500+ | ₹26.42 | ₹66,050.00 |
| 5,000+ | ₹25.84 | ₹1,29,200.00 |
5 × ₹35.39
₹176.95
excl. GST
₹208.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IN74LS06DT
₹176.95 for 5 + GST
Specifications
- output type
- Open Collector
- Logic Family
- 74LS
- Voltage - Supply
- 4.75V~5.25V
- Propagation Delay
- 20ns@5V,15pF
- Output Logic Level - Low
- 700mV
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Operating Temperature
- 0℃~+70℃
- Output Logic Level - High
- 30V
- Number of Channels
- 6
- Current - Output High(IOH)
- 250uA
- Current - Output Low(IOL)
- 40mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.329 g
Overview
This device contains hex inverted buffers with open-collector. It performs the Boolean function Y = A(overline) in positive Logic.
Key features
- High Output Voltage (30 V)
- High Speed (t(PD) = 8.5 ns typical)
- Low Power Dissipation (P(D) = 18 mW per Gate)
