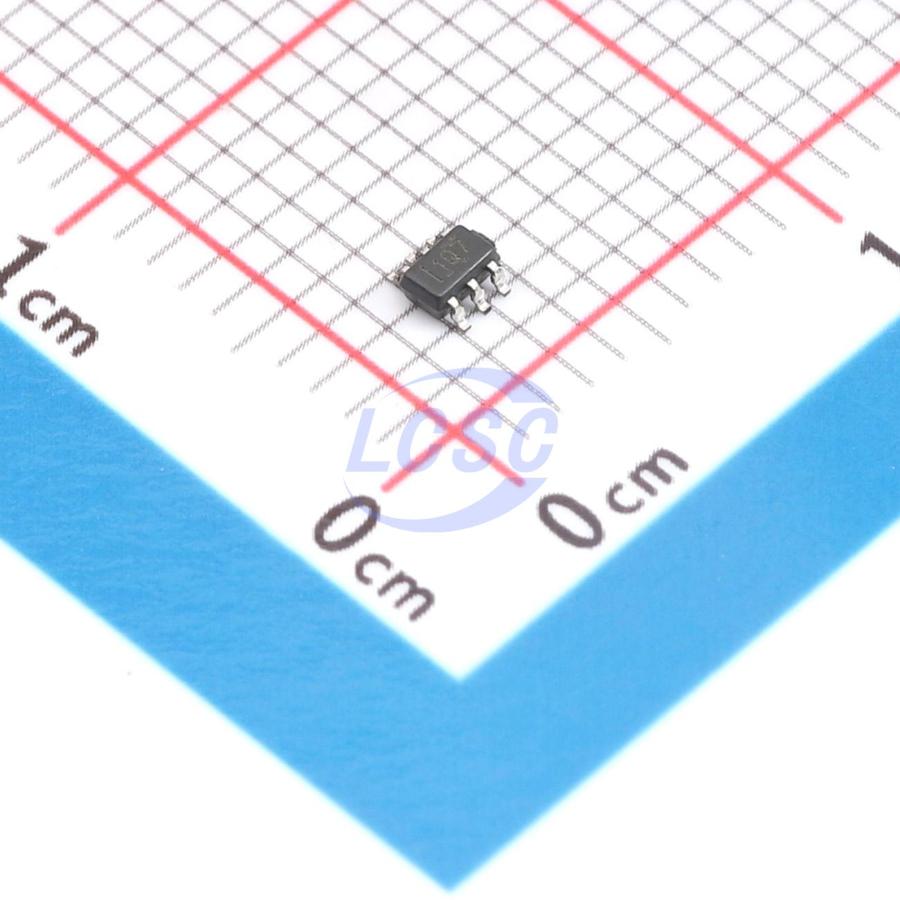

INA181A4QDCKRQ1
8mA 1 100uV -200mV~26V 2V/us 100dB 6uA 195uA 200V/V SC-70-6 Instrumentation, Op Amps, Buffer Amps RoHS
SC-70-6ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- INA181A4QDCKRQ1
- Store part #
- C36509001
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C36509001
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.90 | ₹53.90 |
| 10+ | ₹52.81 | ₹528.10 |
| 30+ | ₹51.94 | ₹1,558.20 |
| 100+ | ₹51.07 | ₹5,107.00 |
1 × ₹53.90
₹53.90
excl. GST
₹63.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
INA181A4QDCKRQ1
₹53.90 for 1 + GST
Specifications
- Output Current
- 8mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 100uV
- Vcm - Common Mode Voltage
- -200mV~26V
- Slew Rate
- 2V/us
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 6uA
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- -3dB Bandwidth
- 105kHz
- Quiescent Current
- 195uA
- Gain
- 200V/V
- Features
- Bidirectional detection;Analog output interface;Programmable output reference level
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Differential Voltage
- ±28V
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
