TIDatasheet (PDF)

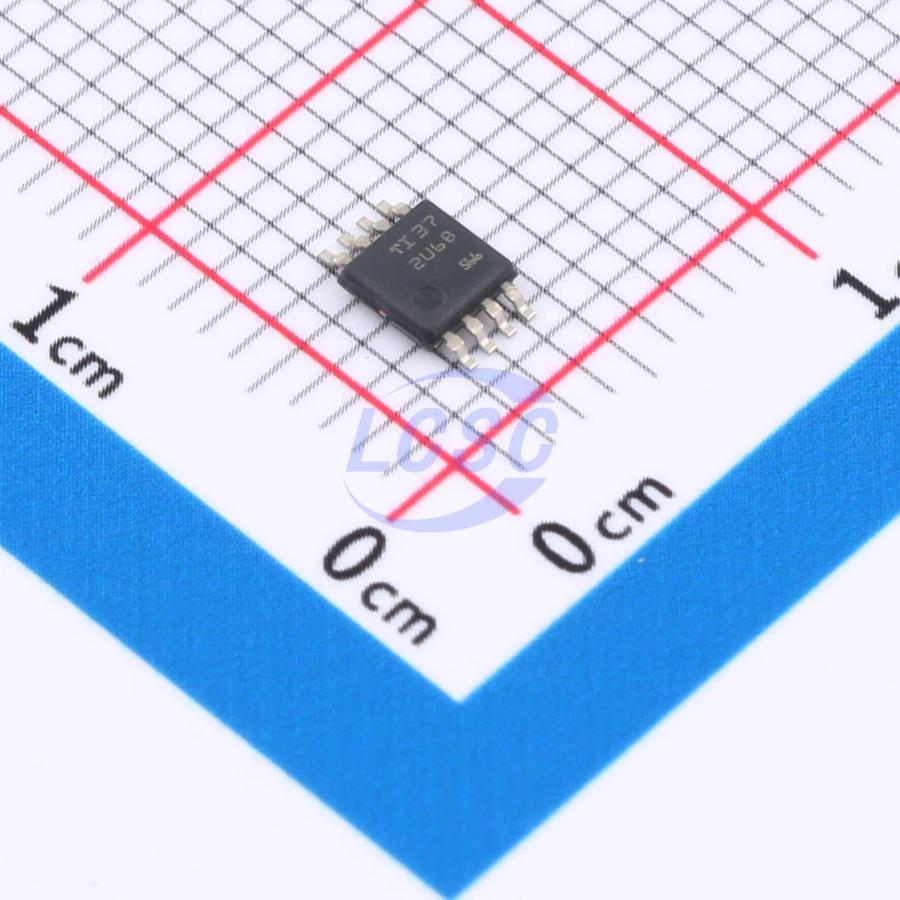

INA241A1IDGKR
5uV -5V~110V 8V/us 35uA 166dB 2.5mA 10V/V VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
VSSOP-8ROHS3 CompliantActive
-5V to 110V, bidirectional, ultra-precise current sense amplifier with enhanced PWM rejection
- Manufacturer
- TI
- Manufacturer part #
- INA241A1IDGKR
- Store part #
- C22433220
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C22433220
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹680.80 | ₹680.80 |
| 10+ | ₹607.14 | ₹6,071.40 |
| 30+ | ₹559.99 | ₹16,799.70 |
| 100+ | ₹514.34 | ₹51,434.00 |
1 × ₹680.80
₹680.80
excl. GST
₹803.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
INA241A1IDGKR
₹680.80 for 1 + GST
Specifications
- Vos - Input Offset Voltage
- 5uV
- Vcm - Common Mode Voltage
- -5V~110V
- Slew Rate
- 8V/us
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 35uA
- Common Mode Rejection Ratio(CMRR)
- 166dB
- -3dB Bandwidth
- 1.1MHz
- Input Offset Voltage Drift(Vos TC)
- 0.1uV/℃
- Quiescent Current
- 2.5mA
- Gain
- 10V/V
- Features
- Bidirectional detection;Zero drift / auto-zero;Programmable output reference level
- Input Voltage Noise Density
- 62nV/√Hz@1kHz
- Differential Voltage
- ±30V
- Single Supply
- 2.7V~20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.52 g
