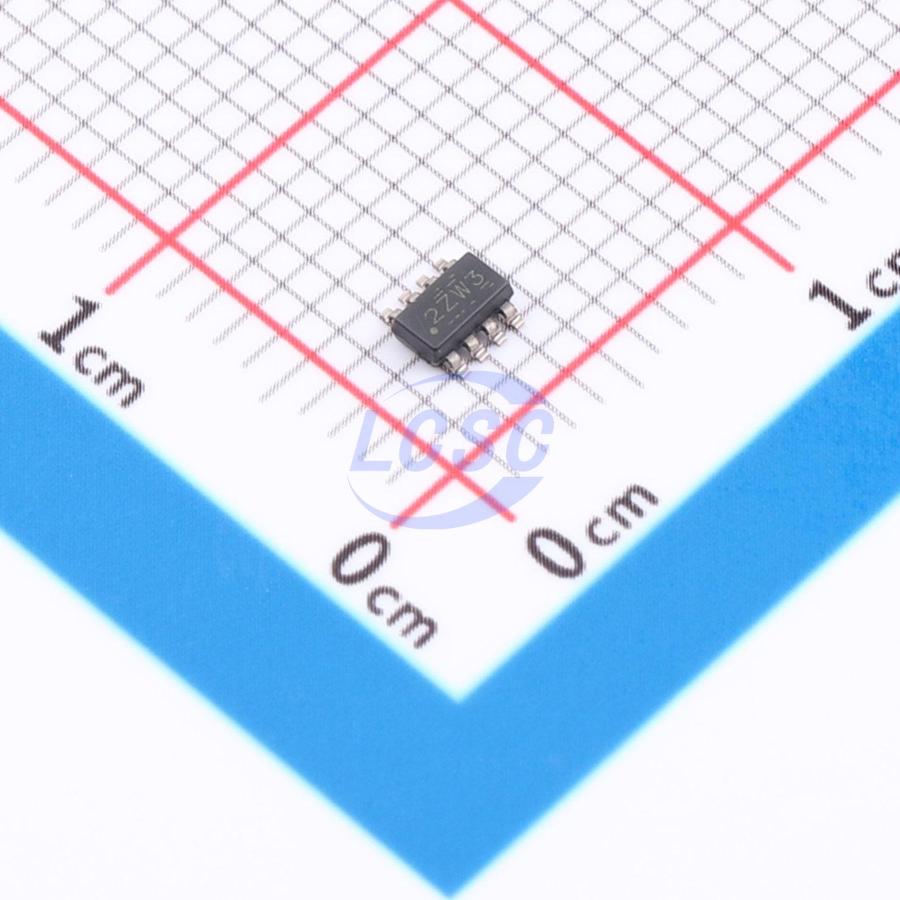

INA241B5QDDFRQ1

-5V~110V 150uV 8V/us 35uA 130dB 2.5mA 200V/V SOT-23-THIN-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-THIN-8ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: INA241B5QDDFRQ1
Store part #: C18212428
Package / case: SOT-23-THIN-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C18212428

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
1+	₹468.38	₹468.38
10+	₹456.41	₹4,564.10
30+	₹448.50	₹13,455.00
100+	₹440.37	₹44,037.00

Quantity (min 1)

1 × ₹468.38

₹468.38

excl. GST

₹552.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

INA241B5QDDFRQ1

₹468.38 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Vcm - Common Mode Voltage: -5V~110V
Vos - Input Offset Voltage: 150uV
Slew Rate: 8V/us
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 35uA
Common Mode Rejection Ratio(CMRR): 130dB
-3dB Bandwidth: 1.1MHz
Input Offset Voltage Drift(Vos TC): 0.5uV/℃
Quiescent Current: 2.5mA
Gain: 200V/V
Features: Bidirectional detection;Programmable output reference level;Zero drift / auto-zero
Differential Voltage: ±30V
Single Supply: 2.7V~20V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.35 g

Overview

The INA241x-Q1 is an ultra-precise, bidirectional current sense amplifier than can measure voltage drops across shunt resistors over a wide commonmode range from -5 V to 110 V, independent of the supply voltage. The high-precision current measurement is achieved through a combination of low offset voltage (±10 μV, maximum), small gain error (±0.01%, maximum) and a high DC CMRR (typical 166 dB). The INA241x-Q1 is designed for high voltage, bidirectional measurements in switching systems that see large common-mode voltage transients at the device's inputs. The enhanced PWM rejection circuitry inside the INA241x-Q1 ensures minimal signal disturbance at the output due to the common-mode voltage transitions at the input. The INA241x-Q1 operates from a single 2.7 V to 20 V supply, drawing 2.5 mA of supply current. The INA241x-Q1 is available in five gain options: 10 V/V, 20 V/V, 50 V/V, 100 V/V, and 200 V/V. Multiple gain options allow for optimization between available shunt resistor values and wide output dynamic range requirements. The INA241x-Q1 is specified over operating temperature range of -40 ℃ to +125 ℃.

Applications

eTurbo/charger
Electric power steering (EPS)
Starter/generator
Regenerative breaking
Brake system

Key features

AEC-Q100 qualified for automotive applications: Temperature grade 1: -40 ℃ to +125 ℃, TA
Functional Safety-Capable Documentation available to aid functional safety system design
Enhanced PWM rejection optimized for systems subject to switching common-mode voltages Supports switching frequencies up to 125 kHz
Wide common-mode voltage: Operational voltage: -5 V to +110 V Survival voltage: -20 V to +120 V
Bidirectional operation
High small signal bandwidth: 1.1 MHz (at all gains)
Slew rate: 8 V/µs
Step response settling time to 1%: 1 µs
Excellent CMRR 166 dB DC-CMRR 104 dB AC-CMRR at 100 kHz 89 dB AC-CMRR at 1 MHz
Accuracy:
Gain error (maximum) Version A: ±0.01%, ±1 ppm/℃ drift
Version B: ±0.1%, ±5 ppm/℃ drift
Offset voltage (maximum) Version A: ±10 μV, ±0.1 μV/℃ drift
Version B: ±150 μV, ±0.5 μV/℃ drift
Available gains:
INA241A1-Q1 : 10 V/V
INA241A2-Q1 : 20 V/V
INA241A3-Q1 : 50 V/V
INA241A4-Q1 : 100 V/V
INA241A5-Q1 : 200 V/V
Package options: SOT23-8, VSSOP-8, SOIC-8, VSSOP-10
