TIDatasheet (PDF)

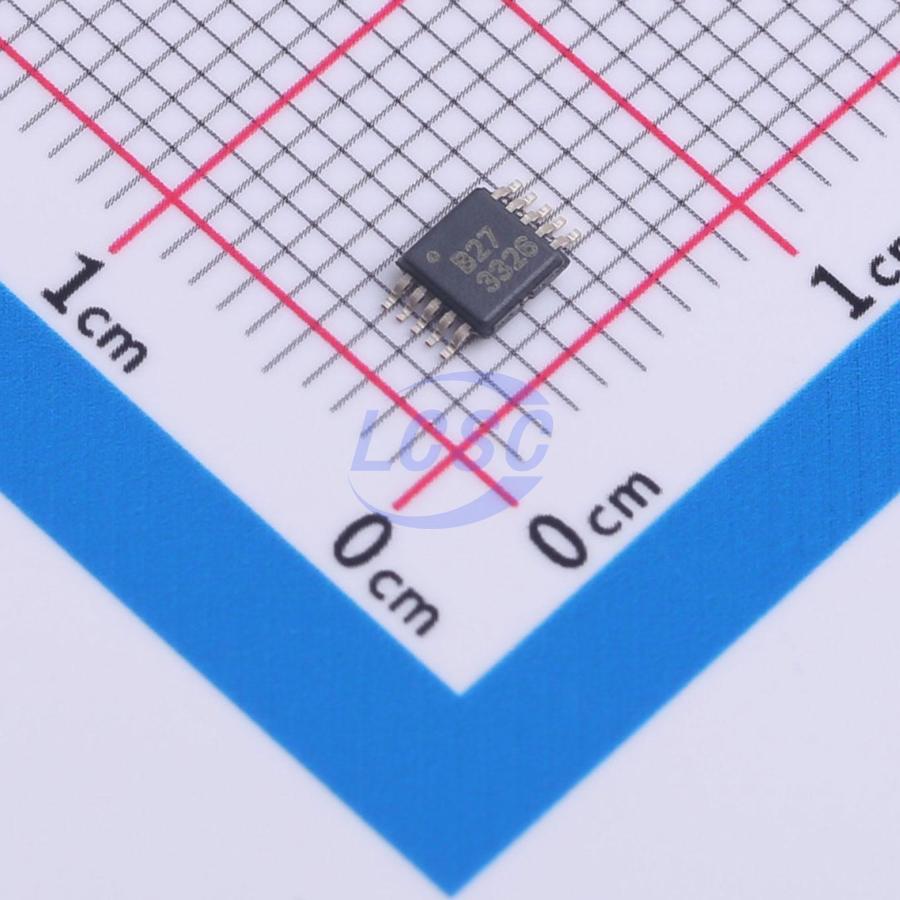

INA327EA/2K5
1 20uV 100dB 200pA 2.4mA Rail-to-Rail Input, Rail-to-Rail Output MSOP-10 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-10ROHS3 CompliantActive
Precision, Rail-to-Rail I/O Instrumentation Amplifier
- Manufacturer
- TI
- Manufacturer part #
- INA327EA/2K5
- Store part #
- C4370672
- Package / case
- MSOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,148 in stock
#C4370672
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹750.83 | ₹750.83 |
| 10+ | ₹673.21 | ₹6,732.10 |
| 30+ | ₹623.34 | ₹18,700.20 |
| 100+ | ₹575.43 | ₹57,543.00 |
1 × ₹750.83
₹750.83
excl. GST
₹885.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
INA327EA/2K5
₹750.83 for 1 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 20uV
- Input Offset Current(Ios)
- 200pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 200pA
- Input Offset Voltage Drift(Vos TC)
- 100nV/℃
- Quiescent Current
- 2.4mA
- Features
- External resistor gain;Enable/shutdown function;Overvoltage protection
- Input Voltage Noise Density
- 33nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.138 g
Overview
The INA326 and INA327 (with shutdown) are high-performance, low-cost, precision instrumentation amplifiers with rail-to-rail input and output. They are true single-supply instrumentation amplifiers with very low DC errors and input common-mode ranges that extends beyond the positive and negative rails. These features make them suitable for applications ranging from general-purpose to high-accuracy. Excellent long-term stability and very low 1/f noise assure low offset voltage and drift throughout the life of the product. The INA326 (without shutdown) comes in the MSOP-8 package. The INA327 (with shutdown) is offered in an MSOP-10. Both are specified over the industrial temperature range, -40°C to +85°C, with operation from -40°C to +125°C.
Applications
- LOW-LEVEL TRANSDUCER AMPLIFIER FOR BRIDGES, LOAD CELLS, THERMOCOUPLES
- WIDE DYNAMIC RANGE SENSOR MEASUREMENTS
- HIGH-RESOLUTION TEST SYSTEMS
- WEIGH SCALES
- MULTI-CHANNEL DATA ACQUISITION SYSTEMS
- MEDICAL INSTRUMENTATION
- GENERAL-PURPOSE
Key features
- LOW OFFSET: 100μV (max)
- LOW OFFSET DRIFT: 0.4μV/°C (max)
- EXCELLENT LONG-TERM STABILITY
- VERY-LOW 1/f NOISE
- TRUE RAIL-TO-RAIL I/O
- INPUT COMMON-MODE RANGE: 20mV Below Negative Rail to 100mV Above Positive Rail
- WIDE OUTPUT SWING: Within 10mV of Rails
- SUPPLY RANGE: Single +2.7V to +5.5V
- SMALL SIZE microPACKAGE: MSOP-8, MSOP-10
- LOW COST
