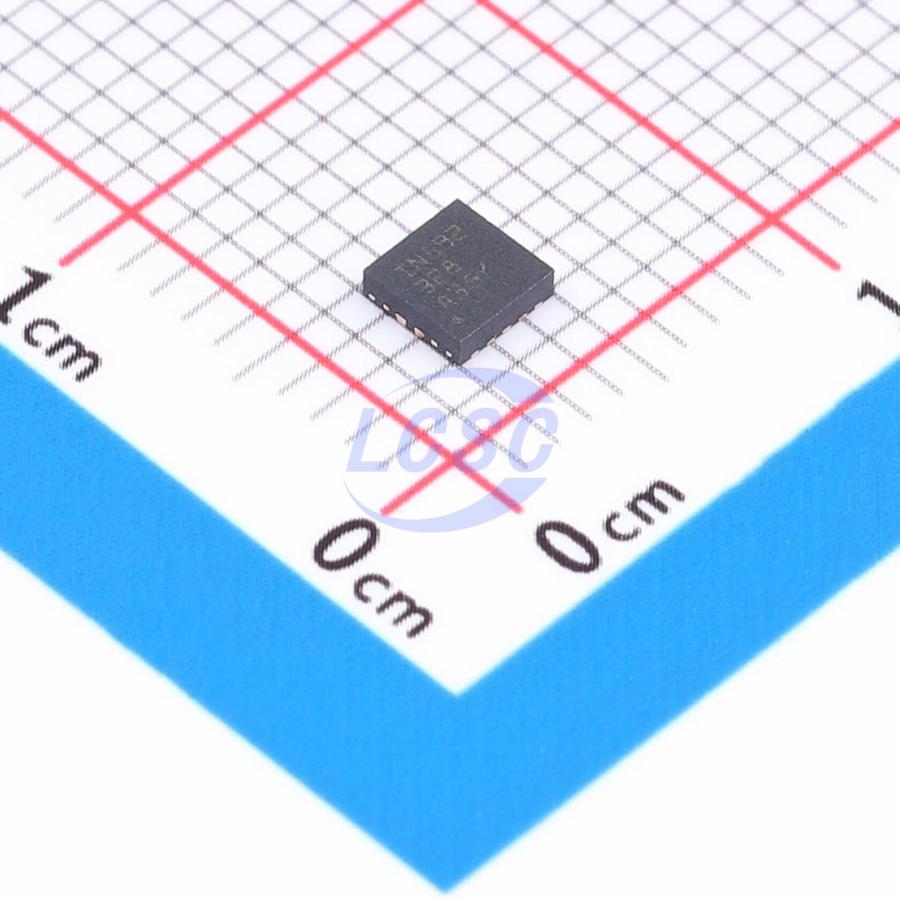

INA592IDRCR

The INA592 device is a low-power, wide-bandwidth differential amplifier composed of a precision operational amplifier (op amp) and a precision resistor network. The excellent tracking performance (TCR) of the resistors maintains gain accuracy and common-mode rejection over the full temperature range. Unique characteristics such as low offset voltage of 40 μV (maximum), low temperature drift (2 μV/°C maximum), high slew rate (18V/μs), and high capacitive load drive up to 500pF make the INA592 a robust, high-performance differential amplifier suitable for various high-voltage industrial applications. The common-mode range of the internal operational amplifier extends to the negative supply, enabling the device to operate in single-supply applications. The device operates from a single supply (4.5V to 36V) or dual supplies (±2.25V to ±18V). Differential amplifiers form the cornerstone of many commonly used circuits. The INA592 provides this circuit functionality without the need for expensive precision resistor networks.

Applications

• AC drive position feedback
• Servo drive position feedback
• Status monitoring module (voltage, current)
• Power supply module
• Semiconductor testing

Key features

• Amplifier G=1/2
• Amplifier Q=2
• Low offset voltage: 40 μV (maximum)
• Low offset voltage drift: ±2 μV/°C (maximum)
• Low noise: 18nV/√Hz at 1kHz
• Low gain error: ±0.03% (maximum)
• High common-mode rejection: 88 dB (minimum)
• High bandwidth: 2MHz GBW
• Low quiescent current: 1.1 mA per amplifier
• High slew rate: 18V/μs
• High capacitive load drive capability: 500pF
• Wide supply voltage range:
• Single supply: 4.5V to 36V
• Dual supply: ±2.25V to ±18V
• Rated temperature range:
• -40°C to +125°C
