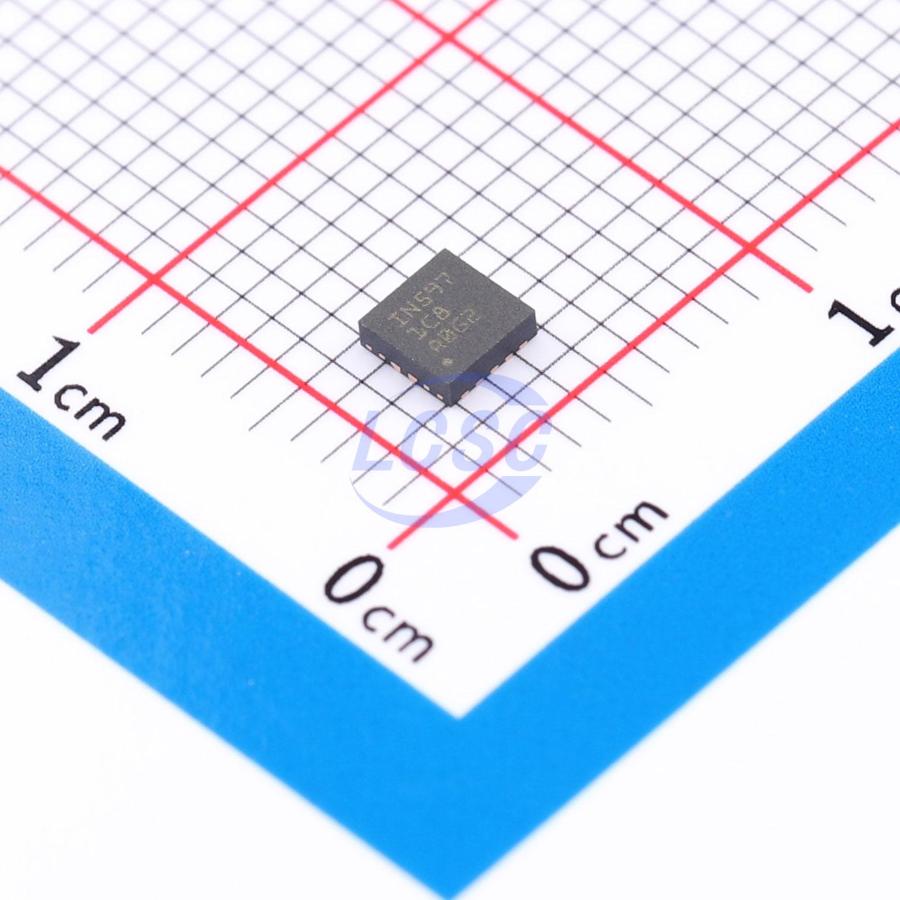

INA597IDRCR

The INA597 is a low-power, high-bandwidth differential amplifier suitable for cost-sensitive applications. The INA597 consists of a precision operational amplifier and a precision resistor network. The excellent tracking performance of the resistors maintains gain accuracy and common-mode rejection over the operating temperature range. The INA597 features unique characteristics such as low offset voltage (200 μV maximum), low temperature drift (5 μV/°C maximum), high slew rate (18V/μs), and the ability to drive high capacitive loads up to 500pF. It is a stable and reliable high-performance differential amplifier suitable for various high-voltage industrial applications. The common-mode range of the internal operational amplifier extends to the negative supply, enabling the device to operate in single-supply applications. The device operates from a single supply (4.5V to 36V) or dual supplies (±2.25V to ±18V). Differential amplifiers form the cornerstone of many common circuits. The INA597 provides this circuit functionality without the need for expensive precision resistor networks.

Applications

• Data Acquisition (DAQ)
• Sensor modules and tags for asset tracking
• Flow transmitters
• Optical modules
• Power modules
• AC drive position feedback
• Servo drive position feedback
• Voltage regulation modules

Key features

• Low offset voltage: 200 μV (max)
• Low offset voltage drift: ±5 μV/°C (max)
• Low noise: 18 nV/√Hz at 1 kHz
• Low gain error: ±0.03% (max)
• High common-mode rejection: 88 dB (min)
• High bandwidth: 2 MHz GBW
• Low quiescent current: 1.1 mA per amplifier
• High slew rate: 18 V/μs
• High capacitive load drive capability: 500 pF
• Wide supply voltage range:
• Single supply: 4.5 V to 36 V
• Dual supply: ±2.25 V to ±18 V
• Rated temperature range: -40°C to +125°C
• Package: 8-pin SOIC and VSSOP, 10-pin VSON
