IC Plus

IP101GRR

3.3V Ethernet Transceiver VQFN-32-EP(4x4) Drivers, Receivers, Transceivers RoHS

VQFN-32-EP(4x4)ROHS CompliantActive

Single Port Fast Ethernet Transceiver

Manufacturer: IC Plus
Manufacturer part #: IP101GRR
Store part #: C5454490
Package / case: VQFN-32-EP(4x4)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13,121 in stock

#C5454490

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹65.91	₹65.91
10+	₹52.70	₹527.00
30+	₹47.06	₹1,411.80
100+	₹39.90	₹3,990.00
500+	₹36.21	₹18,105.00
1,000+	₹34.27	₹34,270.00

Quantity (min 1)

1 × ₹65.91

₹65.91

excl. GST

₹77.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

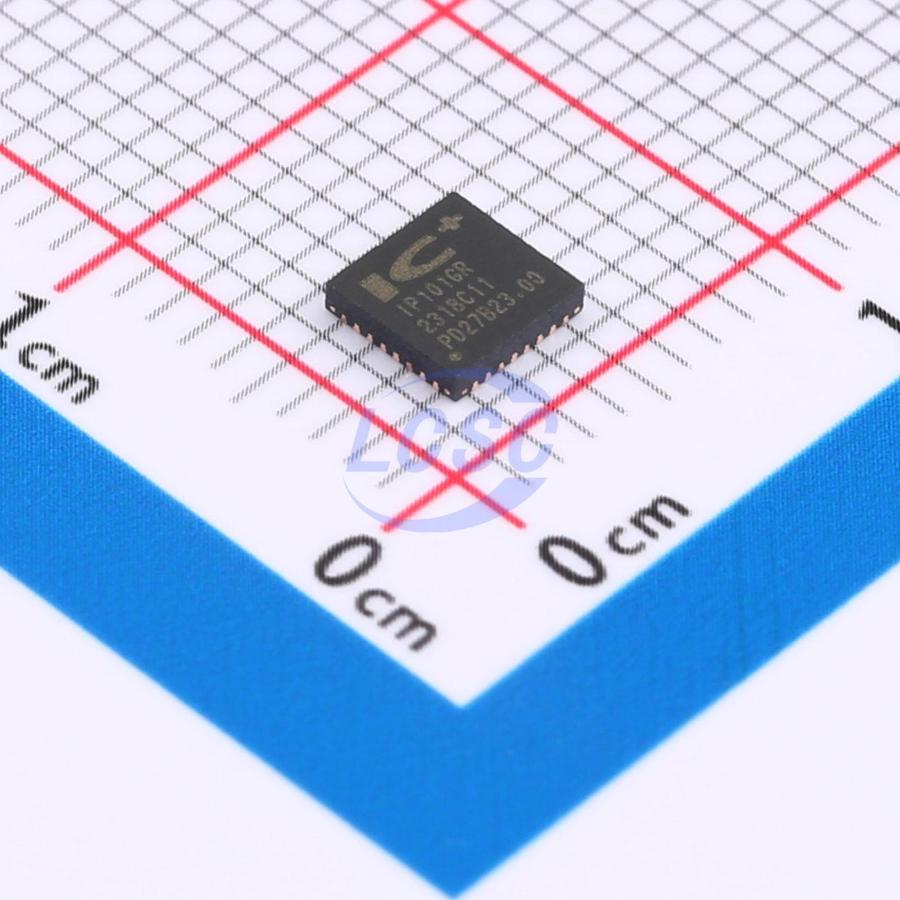

IP101GRR

₹65.91 for 1 + GST

Specifications

Voltage - Supply: 3.3V
Type: Ethernet Transceiver
Ethernet Speed Standards: 10BASE-T;100BASE-TX;100BASE-FX
number of channels: 1
Data Rate: 10Mbit/s;100Mbit/s
Features: Support optical fiber;Programmable LED indication;Low-power mode
Interface: MII;RMII

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.161 g

Overview

IP101G is an IEEE 802.3/802.3u compliant single-port Fast Ethernet Transceiver for both 100Mbps and 10Mbps operations. It supports Auto MDI/MDIX function to simplify the network installation and reduce the system maintenance cost. To improve the system performance, IP101G provides a hardware interrupt pin to indicate the link, speed and duplex status change. IP101G provides Media Independent Interface (MII) or Reduced Media Independent Interface (RMII) to connect with different types of 10/100Mbps Media Access Controller (MAC). IP101G is designed to use category 5 unshielded twisted-pair cable or Fiber-Optic cables connecting to other LAN devices. A PECL interface is supported to connect with an external 100Base-FX fiber optical transceiver. Except good performance, reliability, rich power saving method and extreme low operating current, IP101G provides a serial tool for system designers to complete their projects easily. They are System Debug Assistant Tool and EMI Management Tool. IP101G is fabricated with advanced CMOS (85nm) technology and design is based on IC Plus’s 5th Ethernet-PHY architecture, this feature makes IP101G consumes very low power. Such as in the full load operation (100Mbps_FDX), it only takes below 0.15W. IP101GA&IP101GAI / IP101GR&IP101GRI are available in 48LQFP/32QFN, lead-free package.

Applications

NAS
Network Printers and Servers
IP Set-Top Box
IP/Smart TV
Game console
IP and Video Phone
PoE Telecom
Fiber device

Key features

10/100Mbps IEEE 802.3/802.3u compliant Fast Ethernet transceiver
Supports 100Base-TX/FX Media Interface
Supports MII/ RMII Interface
Supports Auto MDI/MDIX function
Power Management Tool APS, auto power saving while Link-off 802.3az, protocol based power saving WOL+, light traffic power saving PWD, force-off power saving Supports MII with LPI for RX and TX Supports RMII with LPI for RX Supports Base Line Wander compensation
Supports Interrupt function
Built in synchronization FIFO to support jumbo frame size up to 12KB in MII mode (10KB in RMII 100Mbps mode)
Supports MDC and MDIO to communicate with the MAC
EMI Management Tool F/W based control 4 levels for mapping the difference layout length on the PCB Single 3.3V power supply
Built-in Vcore regulator
DSP-based PHY Transceiver technology
System Debug Assistant Tool 16 bit RX counter 9 bit RXError/CRC counter Isolate MII/RMII RX to TX Loopback Loopback MII/RMII Using either 25MHz crystal/oscillator or 50MHz oscillator REF_CLK as clock source
Built-in 49.9ohm resistors for simplifying BOM
Flexible LED display
Process: 85nm
