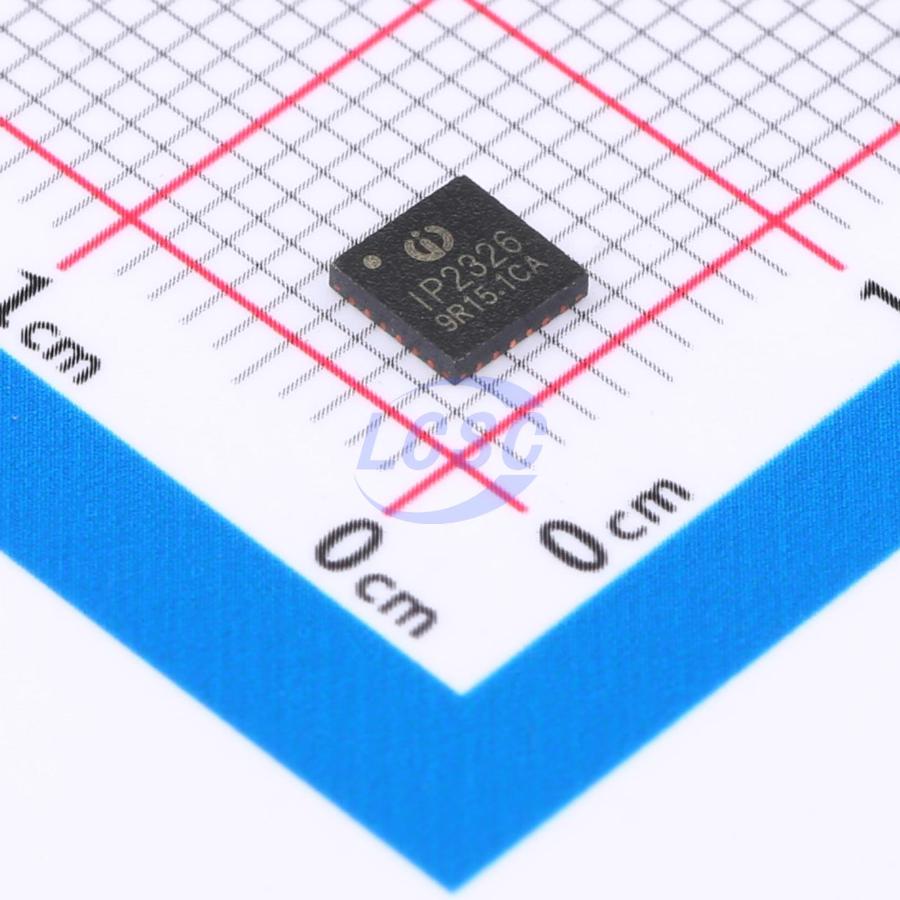

IP2326
Battery Charging IC Battery Balancing IC Lithium-ion/Polymer VQFN-24-EP(4x4)
Step-up charging IC for 2-cell/3-cell series-connected lithium batteries supporting 15W fast charging
- Manufacturer
- INJOINIC
- Manufacturer part #
- IP2326
- Store part #
- C2832094
- Package / case
- VQFN-24-EP(4x4)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,192 in stock
#C2832094
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.97 | ₹81.97 |
| 10+ | ₹66.86 | ₹668.60 |
| 30+ | ₹59.54 | ₹1,786.20 |
| 100+ | ₹53.07 | ₹5,307.00 |
| 500+ | ₹40.55 | ₹20,275.00 |
| 1,000+ | ₹39.48 | ₹39,480.00 |
1 × ₹81.97
₹81.97
excl. GST
₹96.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IP2326
₹81.97 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Quiescent Current
- 700nA
- Operating Voltage
- 4.5V~9.5V
- Type of Battery
- Lithium Battery
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overcurrent Protection;Overvoltage protection;Under-voltage lockout;Cell balancing
- The Chip Type
- Charging IC;Balancing IC
- Charge Current - Max
- 1.5A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.149 g
Overview
IP2326 is a 2-cell/3-cell series lithium battery boost charging IC supporting 15W fast charging. With integrated power MOSFETs and a synchronous switching architecture, it requires minimal external components, effectively reducing overall solution size and BOM cost. The boost switching charge converter operates at 500KHz; maximum 15W input charging, with 94% conversion efficiency at 5V input/8V/1A output and 92% at 8V/1.5A output. Features input voltage limiting to intelligently regulate charging current and adaptively match adapter load capability. Supports external pin selection for 2-cell or 3-cell lithium battery charging configuration; capable of requesting fast charging input based on current battery voltage to improve charging efficiency and reduce charging time. Integrated 2-cell charge balancing circuit monitors individual cell voltage during charging to ensure voltage balance between the 2 cells. Integrated NTC protection function enables charging NTC protection in conjunction with an NTC resistor. Available in 4×4mm QFN24 package.
Applications
- 2S/3S lithium/Li-ion battery charging
Key features
- 15W synchronous boost charging
- 94% boost charging efficiency, integrated power MOSFETs
- Integrated charge balancing circuit
- Supports input fast-charge negotiation; automatically requests fast-charge input based on battery voltage to improve charging efficiency
- Constant voltage charging voltage adjustable via external resistor
- Pin-selectable 2S or 3S series lithium battery charging
- Charging current adjustable via external resistor
- Automatically requests fast-charge input based on battery voltage
- Automatically adjusts input current, adaptive to adapter load
- Supports charging NTC temperature protection
- Input overvoltage/undervoltage protection, adjustable via external resistor
- Charging timeout protection, adjustable via external resistor
- Supports LED charging status indication
- 500KHz switching frequency, compatible with 2.2μH inductor
- Output overcurrent, overvoltage, and short-circuit protection
- IC over-temperature protection
- 25V input voltage rating
- ESD 4KV
