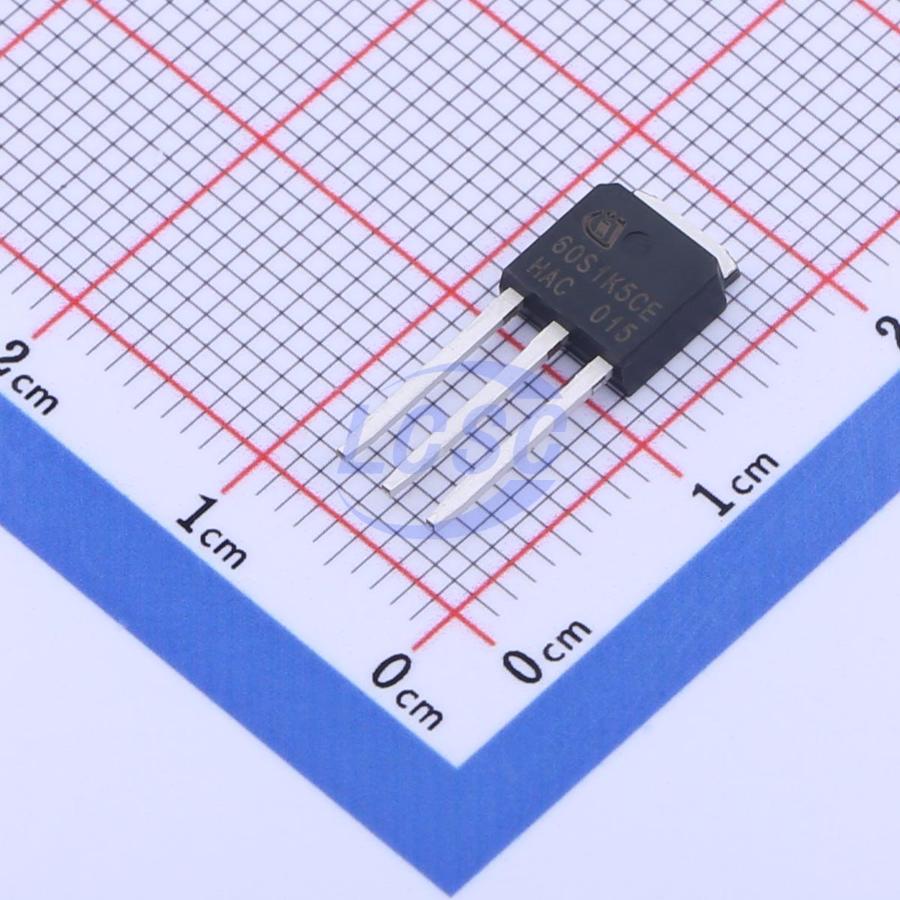

IPU60R1K5CE
N-Channel 650V 5A 49W Through Hole TO-251-3
TO-251-3ROHS3 CompliantActive
MOSFET N-CH 650V 5A TO-251-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPU60R1K5CE
- Store part #
- C476114
- Package / case
- TO-251-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C476114
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.89 | ₹93.89 |
| 10+ | ₹77.53 | ₹775.30 |
| 30+ | ₹69.34 | ₹2,080.20 |
| 75+ | ₹53.83 | ₹4,037.25 |
| 525+ | ₹48.88 | ₹25,662.00 |
| 975+ | ₹46.52 | ₹45,357.00 |
1 × ₹93.89
₹93.89
excl. GST
₹110.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
IPU60R1K5CE
₹93.89 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 16pF
- Current - Continuous Drain(Id)
- 5A
- Ciss-Input Capacitance
- 200pF
- Pd - Power Dissipation
- 49W
- RDS(on)
- 1.26Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.4nC@480V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.72 g
Overview
CoolMOS is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. CoolMOS CE is a price-performance optimized platform enabling to target cost sensitive applications in Consumer and Lighting markets by still meeting highest efficiency standards. The new series provides all benefits of a fast switching Superjunction MOSFET while not sacrificing ease of use and offering the best cost down performance ratio available on the market.
Applications
- PFC stages
- Hard switching PWM stages
- Resonant switching stages for e.g. PC Silverbox, Adapter, LCD & PDP TV and indoor lighting
Key features
- Extremely low losses due to very low FOM Rdson*Qg and Eoss
- Very high commutation ruggedness
- Easy to use/drive
- Pb-free plating, Halogen free mold compound
- Qualified for standard grade applications
