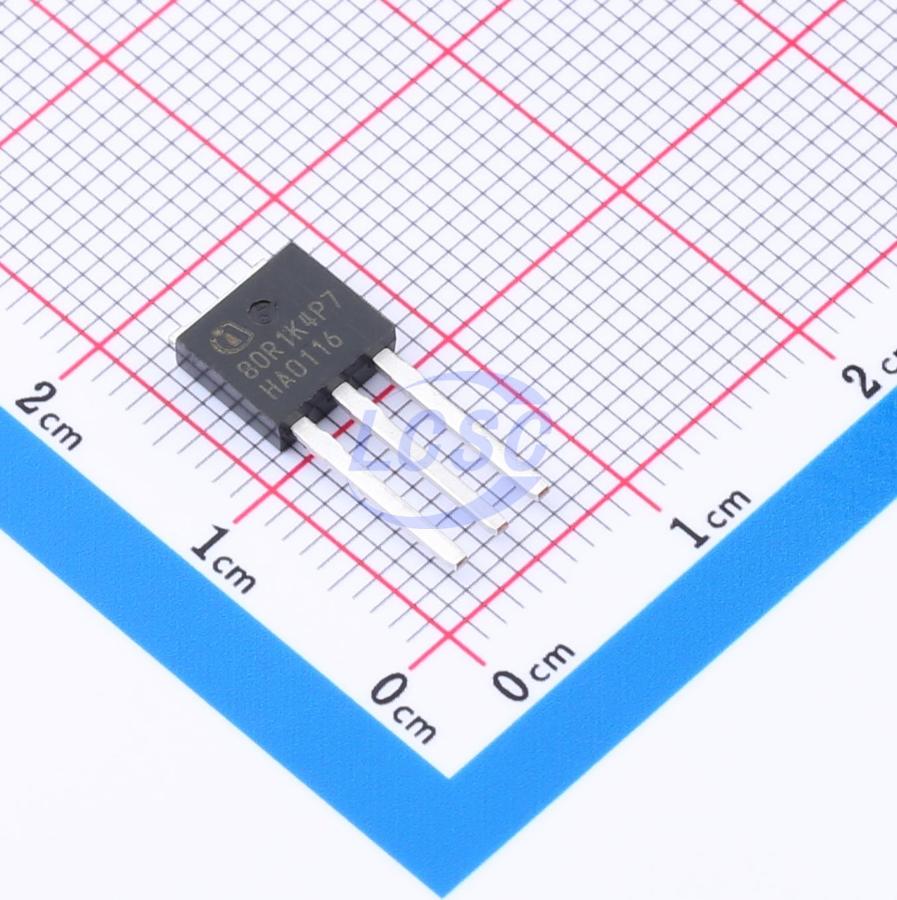

IPU80R1K4P7
N-Channel 800V 4A 32W Through Hole TO-251-3
TO-251-3ROHS3 CompliantDiscontinued
MOSFET N-CH 800V 4A TO-251-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPU80R1K4P7
- Store part #
- C531223
- Package / case
- TO-251-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C531223
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹388.95 | ₹388.95 |
| 10+ | ₹332.35 | ₹3,323.50 |
| 30+ | ₹297.09 | ₹8,912.70 |
| 100+ | ₹260.80 | ₹26,080.00 |
| 500+ | ₹244.40 | ₹1,22,200.00 |
| 1,500+ | ₹237.23 | ₹3,55,845.00 |
1 × ₹388.95
₹388.95
excl. GST
₹458.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per tube
IPU80R1K4P7
₹388.95 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 250pF
- Pd - Power Dissipation
- 32W
- Reverse Transfer Capacitance (Crss)
- 6.5pF
- RDS(on)
- 3.1Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 1,500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.8 g
Overview
The latest 800V CoolMOS™ P7 series sets a new benchmark in 800V super junction technologies and combines best-in-class performance with state of the art ease-of-use, resulting from Infineon’s over 18 years pioneering super junction technology innovation.
Applications
- Recommended for hard and soft switching flyback topologies for LED Lighting, low power Chargers and Adapters, Audio, AUX power and Industrial power.
- Also suitable for PFC stage in Consumer applications and Solar.
Key features
- Best-in-class FOM RDS(on) * Eoss; reduced Qg, Ciss, and Coss
- Best-in-class DPAK Rds(on)
- Best-in-class V(GS)th of 3V and smallest V(GS)th variation of ±0.5V
- Integrated Zener Diode ESD protection
- Fully qualified acc. JEDEC for Industrial Applications
- Fully optimized portfolio
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPU80R900P7#C531230Infineon · TO-251-3 | Infineon | TO-251-3 | 13 | ₹199.47 · 13 in stock | View |
 | MMIS90R1K4PTH#C51902204MagnaChip Semicon · TO-251 | MagnaChip Semicon | TO-251 | 2 | ₹88.64 · 2 in stock | View |
 | IPU80R600P7#C531228Infineon · TO-251-3 | Infineon | TO-251-3 | 41 | ₹795.49 · 41 in stock | View |
 | CS4N80A3HD-G#C2833626Wuxi China Resources Huajing Microelectronics · TO-251 | Wuxi China Resources Huajing Microelectronics | TO-251 | 1 | ₹74.48 · 1 in stock | View |
 | XCH4N80N#C53155323XCH · TO-251 | XCH | TO-251 | 980 | ₹21.71 · 980 in stock | View |
