InfineonDatasheet (PDF)

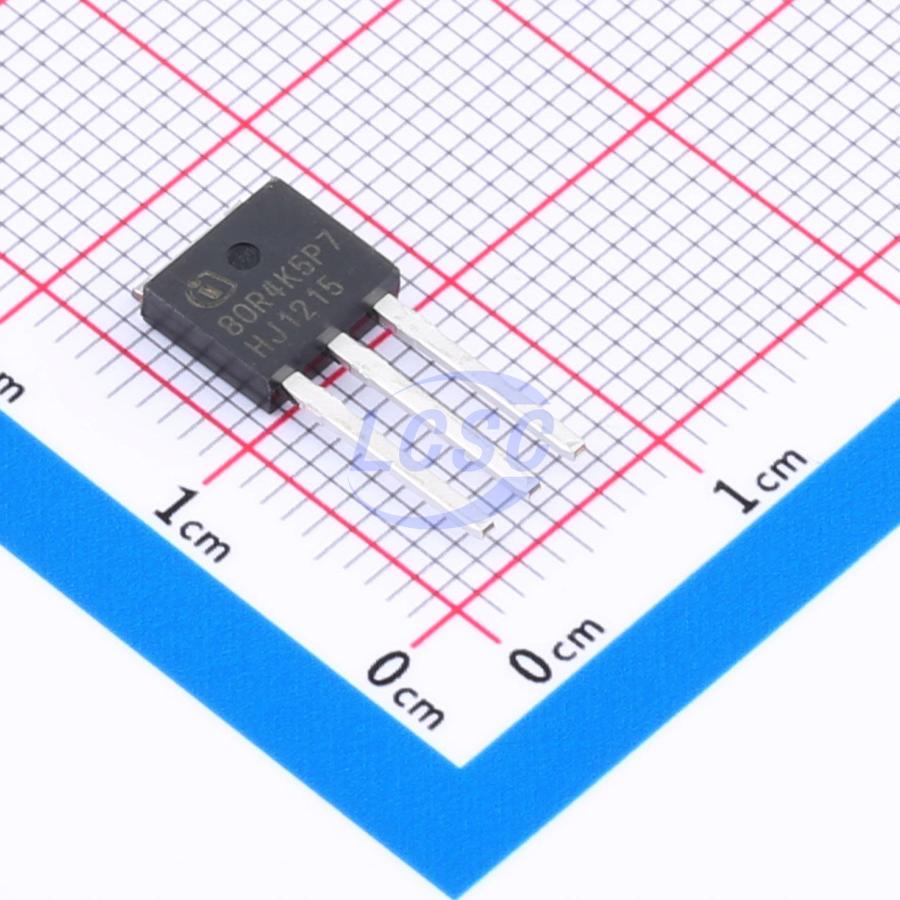

IPU80R4K5P7AKMA1
N-Channel 800V 1.5A 13W Through Hole TO-251-3-21
TO-251-3-21ROHS3 CompliantActive
MOSFET N-CH 800V 1.5A TO-251-3-21
- Manufacturer
- Infineon
- Manufacturer part #
- IPU80R4K5P7AKMA1
- Store part #
- C3289109
- Package / case
- TO-251-3-21
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C3289109
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.14 | ₹90.14 |
| 10+ | ₹72.06 | ₹720.60 |
| 30+ | ₹63.13 | ₹1,893.90 |
| 100+ | ₹54.22 | ₹5,422.00 |
| 500+ | ₹48.77 | ₹24,385.00 |
| 1,000+ | ₹45.93 | ₹45,930.00 |
1 × ₹90.14
₹90.14
excl. GST
₹106.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
IPU80R4K5P7AKMA1
₹90.14 for 1 + GST
Specifications
- Drain to Source Voltage
- 800V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 3pF
- Current - Continuous Drain(Id)
- 1.5A
- Ciss-Input Capacitance
- 80pF
- Pd - Power Dissipation
- 13W
- Reverse Transfer Capacitance (Crss)
- 3pF
- RDS(on)
- 4.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.1 g
Overview
The latest 800V CoolMOS™ P7 series sets a new benchmark in 800V super junction technologies and combines best-in-class performance with state of the art ease-of-use, resulting from Infineon’s over 18 years pioneering super junction technology innovation.
Applications
- Hard and soft switching flyback topologies for LED Lighting, low power Chargers and Adapters, Audio, AUX power and Industrial power
- PFC stage in Consumer applications and Solar
Key features
- Best-in-class FOM RDS(on) * Eoss; reduced Qg, Ciss, and Coss
- Best-in-class DPAK Rds(on)
- Best-in-class V(GS)th of 3V and smallest V(GS)th variation of ±0.5V
- Integrated Zener Diode ESD protection
- Fully qualified acc. JEDEC for Industrial Applications
- Fully optimized portfolio
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMU3N90A#C55387894Cmos · TO-251 | Cmos | TO-251 | 160 | ₹43.67 · 160 in stock | View |
 | STU2N80K5#C377965ST · IPAK | ST | IPAK | 2 | ₹117.36 · 2 in stock | View |
 | STD3NK80Z-1#C2844918ST · IPAK | ST | IPAK | 5 | ₹285.09 · 5 in stock | View |
 | CS4N80A3HD-G#C2833626Wuxi China Resources Huajing Microelectronics · TO-251 | Wuxi China Resources Huajing Microelectronics | TO-251 | 1 | ₹74.48 · 1 in stock | View |
 | IPU80R1K4P7#C531223Infineon · TO-251-3 | Infineon | TO-251-3 | 16 | ₹388.95 · 16 in stock | View |
