XBLWDatasheet (PDF)

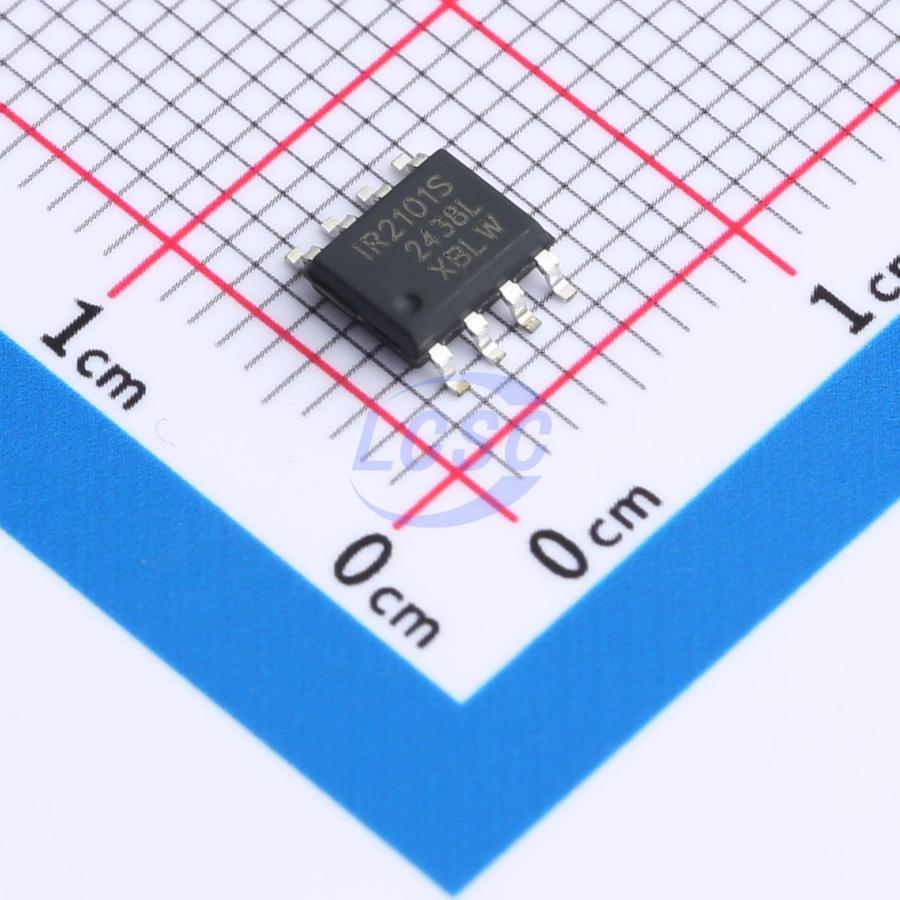

IR2101STRPBF(XBLW)
13V~17.5V 380mA 220mA SOP-8 Gate Drivers RoHS
SOP-8ROHS CompliantActive
High & Low Side Driver
- Manufacturer
- XBLW
- Manufacturer part #
- IR2101STRPBF(XBLW)
- Store part #
- C42395630
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,865 in stock
#C42395630
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.05 | ₹260.25 |
| 50+ | ₹40.99 | ₹2,049.50 |
| 150+ | ₹36.44 | ₹5,466.00 |
| 500+ | ₹30.57 | ₹15,285.00 |
| 3,000+ | ₹27.98 | ₹83,940.00 |
| 6,000+ | ₹26.24 | ₹1,57,440.00 |
5 × ₹52.05
₹260.25
excl. GST
₹307.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IR2101STRPBF(XBLW)
₹260.25 for 5 + GST
Specifications
- Low Level Delay Time
- 450ns
- High Level Delay Time
- 420ns
- Voltage - Supply
- 13V~17.5V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 380mA
- Rise Time
- 82ns
- Fall Time
- 46ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 220mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.294 g
Overview
IR2101S is half-bridge pre-driver IC and capable of driving a pair of power devices (IGBT/N-MOSFET). IR2101S applies to typical bootstrap architecture with an external bootstrap diode for each phase. The UVLO prevents abnormal behaviors once VCC or VBS drops lower than the specific threshold voltage. The cross-conduction prevention protects the power devices from simultaneous turn-on due to noise or ficker of control logic.
Applications
- Motor control
- Air conditioning
- Washing machines
- Inverter Drive
- General purpose inverter
- High-power home appliances
- Hair Dryer
Key features
- Floating high side up to +600V
- Gate drive supply ranging from 10V to 20V
- Under-voltage lockout protection
- Built-in cross-conduction prevention
- Compatible with 3.3V/5V logic
- Outputs in phase with inputs
- Lead-Free (ROHS Compliant)
