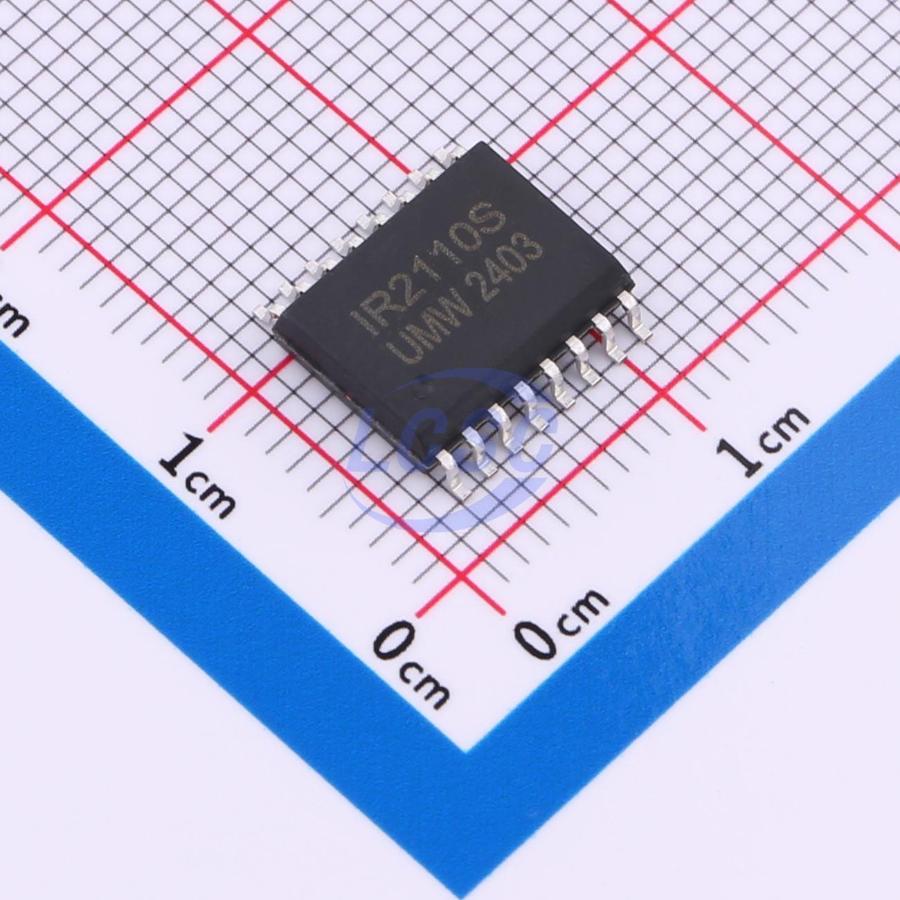

IR2110STR(UMW)

UMW IR2110STR is a high-voltage, high-speed power MOSFET driver featuring independent high-side and low-side referenced output channels. It employs proprietary HVIC and latch-up immune CMOS technology to achieve a robust monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output drivers incorporate high-pulse-current buffer stages designed to minimize cross-conduction in the drive stage. The floating channel can be used to drive N-channel power MOSFETs in high-side configurations at operating voltages up to 600V.

Applications

• General-purpose UPS inverters
• Half-bridge and full-bridge converters in AC/DC power supplies
• High-density switching power supplies for server, telecom, IT, and industrial infrastructure
• Solar inverters and motor drives

Key features

• Floating channel designed for bootstrap operation
• Full operating voltage up to +600V
• Compatible with 3.3V, 5V, and 15V input logic
• Tolerant of negative transient voltage, dV/dt immune
• Allowable negative VS capability: -9V
• Gate drive supply range: 10V to 20V
• Independent logic supply range: 3.3V to 20V
• ±5V offset between logic ground and power ground
• Dual-channel undervoltage lockout
• Cycle-by-cycle edge-triggered shutdown logic
• Matched propagation delay for both channels
• Wide operating temperature range: -40°C to 125°C
• Typical output source/sink current capability: 4A/4A
