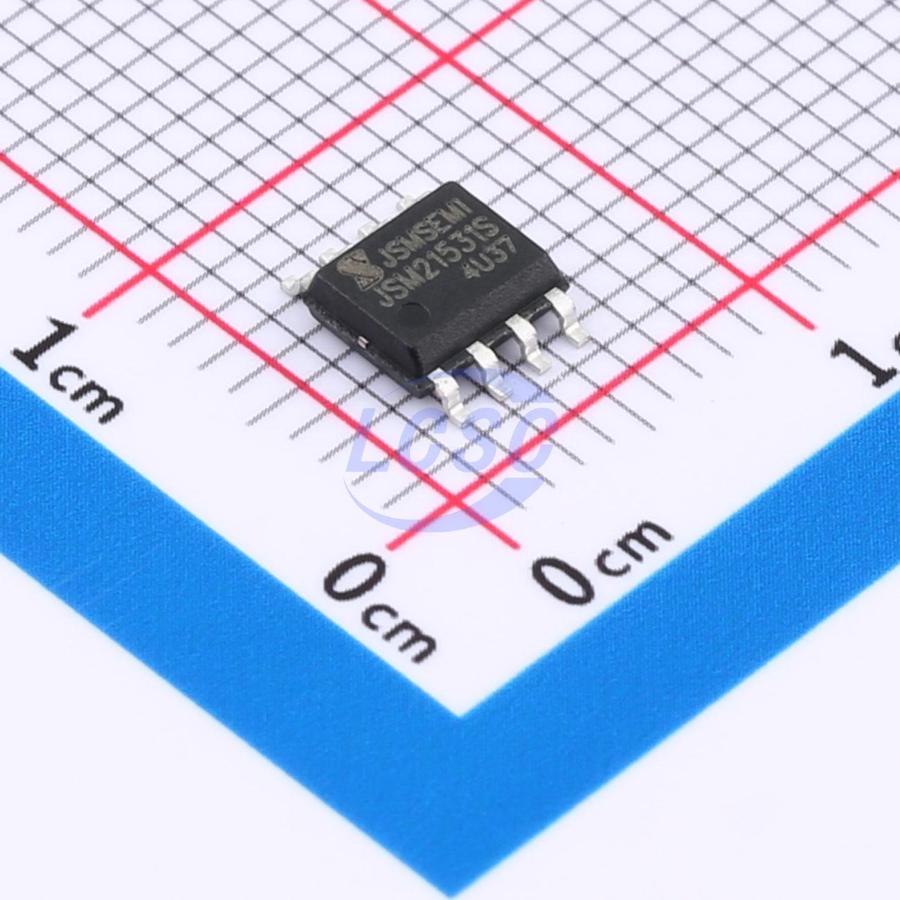

IR21531STRPBF-JSM
Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
600V self-oscillating half-bridge driver with integrated bootstrap diode
- Manufacturer
- JSMSEMI
- Manufacturer part #
- IR21531STRPBF-JSM
- Store part #
- C41421804
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,878 in stock
#C41421804
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.41 | ₹65.41 |
| 10+ | ₹57.59 | ₹575.90 |
| 30+ | ₹53.67 | ₹1,610.10 |
| 100+ | ₹49.77 | ₹4,977.00 |
| 500+ | ₹47.38 | ₹23,690.00 |
| 1,000+ | ₹46.08 | ₹46,080.00 |
1 × ₹65.41
₹65.41
excl. GST
₹77.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IR21531STRPBF-JSM
₹65.41 for 1 + GST
Specifications
- Quiescent Current
- 300uA
- Voltage - Supply
- 12.5V~15.6V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 60ns
- Fall Time
- 50ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.109 g
Overview
IR2153(1)S is a 600V half-bridge gate driver with an integrated 50% duty cycle oscillator, capable of driving N-channel MOSFET or IGBT devices. The CT pin of IR2153(1)S simultaneously shuts down both high- and low-side outputs at low voltage (1/6th VCC). When VCC drops below the undervoltage threshold, IR2153(1)S pulls the CT pin low and disables both high- and low-side outputs. IR2153(1)S features strong output drive capability, with peak output source/sink current pulses up to +1.2A/-1.5A. IR2153(1)S incorporates built-in dead-time logic to prevent shoot-through in high- and low-side power MOSFETs or IGBTs. In addition, IR2153(1)S integrates a bootstrap diode for high-side bootstrap charging. Available in SOP8 package, it operates over a temperature range of -40°C to 125°C.
Applications
- Electronic ballasts
- High-voltage power supplies
- Motor control and drives
- Robotics and automation
- Power tools
Key features
- Integrated 50% duty cycle oscillator and half-bridge driver
- CT, RT programmable oscillator
- 15.6V Zener clamp between VCC and COM
- Micro-power startup
- CT pin non-latching shutdown (1/6th VCC)
- Half-bridge floating channel maximum operating voltage +600V
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Under-voltage lockout (rise/fall):
- VCC: 11/9V
- VBS: 9/8V
- Output source/sink current capability +1.2A/-1.5A
- Integrated dead time:
- IR2153: 1.1us
- IR21531: 0.6us
- Integrated bootstrap diode
- RoHS compliant
