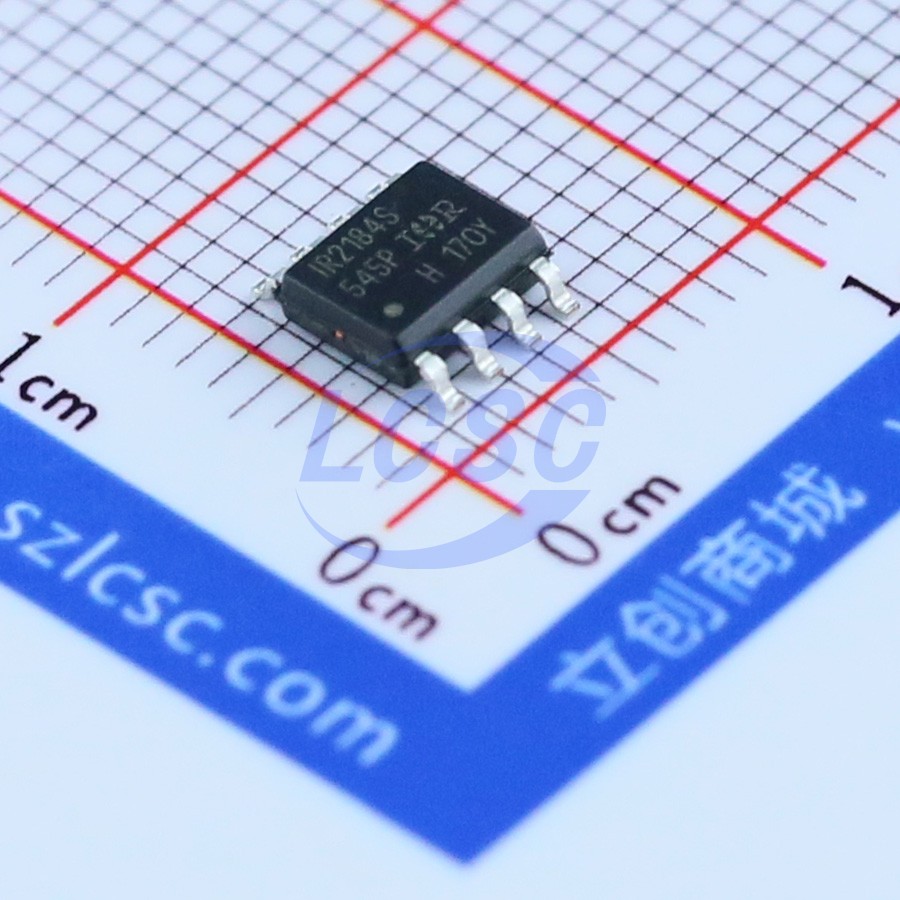

IR2184STRPBF
10V~20V 1.8A 1.4A SOIC-8 Gate Drivers RoHS
HALF-BRIDGE DRIVER
- Manufacturer
- Infineon
- Manufacturer part #
- IR2184STRPBF
- Store part #
- C2995
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,341 in stock
#C2995
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹656.90 | ₹656.90 |
| 10+ | ₹590.19 | ₹5,901.90 |
| 30+ | ₹550.63 | ₹16,518.90 |
| 100+ | ₹474.59 | ₹47,459.00 |
| 500+ | ₹456.12 | ₹2,28,060.00 |
| 1,000+ | ₹447.85 | ₹4,47,850.00 |
1 × ₹656.90
₹656.90
excl. GST
₹775.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IR2184STRPBF
₹656.90 for 1 + GST
Specifications
- Low Level Delay Time
- 680ns
- High Level Delay Time
- 270ns
- Quiescent Current
- 1mA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1.8A
- Rise Time
- 40ns
- Fall Time
- 20ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 1.4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
The IR2184(4)(S) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.
Key features
- Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune
- Gate drive supply range from 10 to 20V
- Undervoltage lockout for both channels
- 3.3V and 5V input logic compatible
- Matched propagation delay for both channels
- Logic and power ground +/-5V offset
- Lower di/dt gate driver for better noise immunity
- Output source/sink current capability 1.4A/1.8A
- Also available LEAD-FREE (PbF)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IR2184SPBF#C537610Infineon · SOIC-8 | Infineon | SOIC-8 | 42 | ₹624.30 · 42 in stock | View |
 | DGD2184MS8-13#C2677193DIODES · SO-8 | DIODES | SO-8 | 9 | ₹304.34 · 9 in stock | View |
 | IR2183STRPBF#C2653806Infineon · SOIC-8 | Infineon | SOIC-8 | 410 | ₹200.78 · 410 in stock | View |
 | IRS2183STRPBF#C538305Infineon · SOIC-8 | Infineon | SOIC-8 | 16 | ₹168.89 · 16 in stock | View |
 | IR2181STRPBF#C37524Infineon · SOIC-8 | Infineon | SOIC-8 | 3,556 | ₹227.23 · 3,556 in stock | View |
