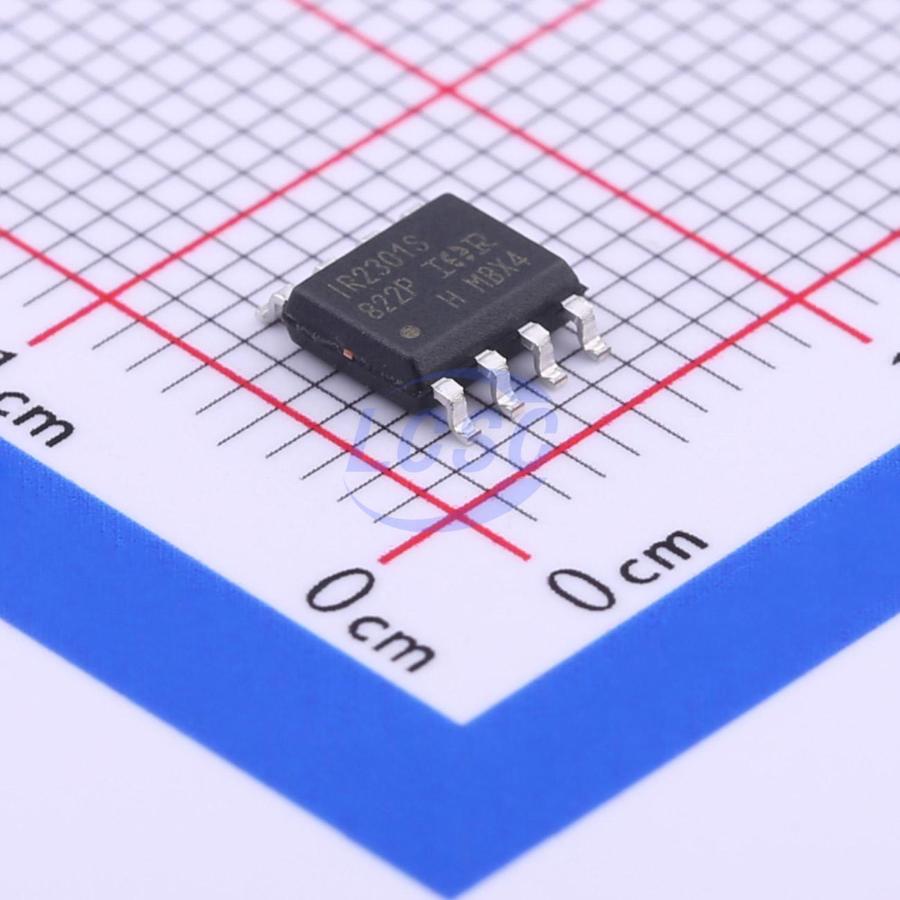

IR2301STRPBF
5V~20V 350mA 200mA SOIC-8 Gate Drivers RoHS
High and Low Side Driver
- Manufacturer
- Infineon
- Manufacturer part #
- IR2301STRPBF
- Store part #
- C413500
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,252 in stock
#C413500
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.82 | ₹85.82 |
| 10+ | ₹69.52 | ₹695.20 |
| 30+ | ₹61.49 | ₹1,844.70 |
| 100+ | ₹53.45 | ₹5,345.00 |
| 500+ | ₹42.38 | ₹21,190.00 |
| 1,000+ | ₹39.98 | ₹39,980.00 |
1 × ₹85.82
₹85.82
excl. GST
₹101.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IR2301STRPBF
₹85.82 for 1 + GST
Specifications
- Quiescent Current
- 120uA
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 350mA
- Rise Time
- 130ns
- Fall Time
- 50ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 200mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.817 g
Overview
The IR2301(S) are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.
Key features
- Floating channel designed for bootstrap operation Fully operational to +600V
- Tolerant to negative transient voltage dV/dt immune
- Gate drive supply range from 5 to 20V
- Undervoltage lockout for both channels
- 3.3V, 5V and 15V input logic compatible
- Matched propagation delay for both channels
- Logic and power ground +/-5V offset
- Lower di/dt gate driver for better noise immunity
- Outputs in phase with inputs
- Also available LEAD-FREE (PbF)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IR2301SPBF#C537624Infineon · SOIC-8 | Infineon | SOIC-8 | 5 | ₹378.97 · 5 in stock | View |
 | XJNG2103#C43244363WXNSIC · SOP-8 | WXNSIC | SOP-8 | 4,005 | ₹25.07 · 4,005 in stock | View |
 | G2022#C41414475WXNSIC · SOP-8 | WXNSIC | SOP-8 | 1,675 | ₹18.16 · 1,675 in stock | View |
| XJNG2103C#C52975878WXNSIC · SOP-8 | WXNSIC | SOP-8 | 1,220 | ₹22.08 · 1,220 in stock | View | |
 | G2022#C53436224NCE · SOP-8 | NCE | SOP-8 | 3,900 | ₹20.00 · 3,900 in stock | View |
