IR44273LTRPBF

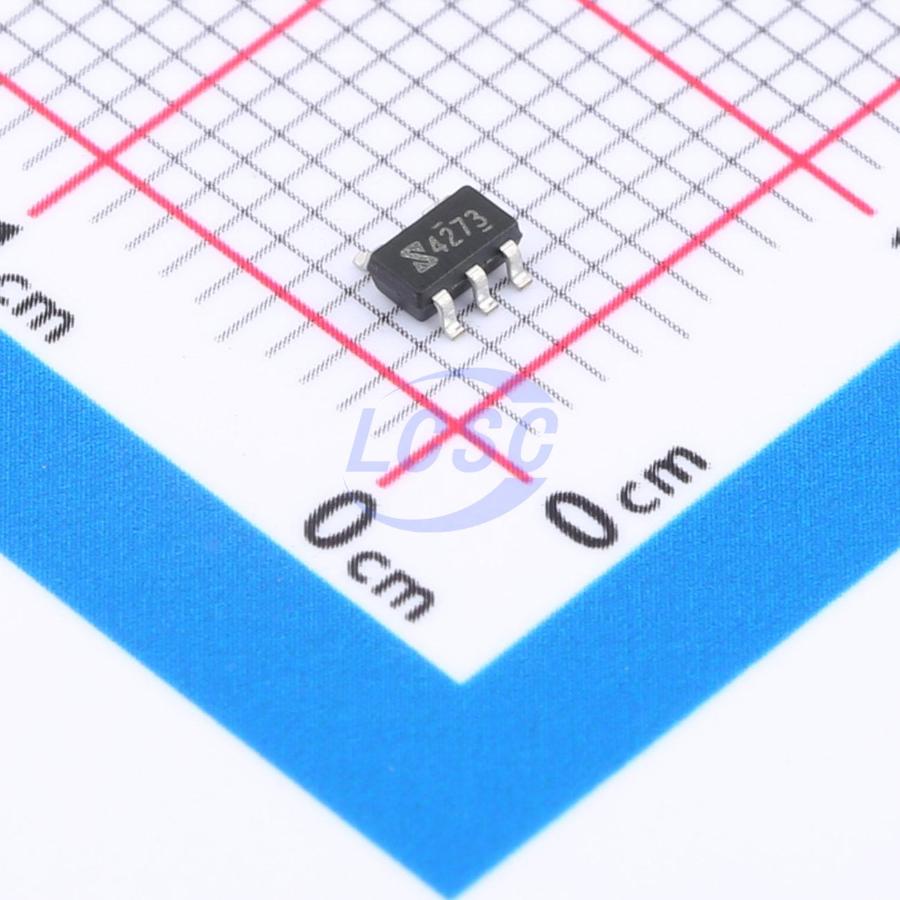

Gate Driver IC MOSFET IGBT SOT-23-5
SOT-23-5ROHS CompliantSold out at source
2A single-channel low-side non-inverting gate driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- IR44273LTRPBF
- Store part #
- C5804635
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,094 in stock
#C5804635
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.08 | ₹48.08 |
| 10+ | ₹42.43 | ₹424.30 |
| 30+ | ₹39.72 | ₹1,191.60 |
| 100+ | ₹36.79 | ₹3,679.00 |
| 500+ | ₹35.11 | ₹17,555.00 |
| 1,000+ | ₹34.28 | ₹34,280.00 |
1 × ₹48.08
₹48.08
excl. GST
₹56.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IR44273LTRPBF
₹48.08 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 180uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 2A
- Rise Time
- 25ns
- Fall Time
- 25ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
IR44273L is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-immune CMOS technology enables a highly robust monolithic structure. Logic input levels are compatible with CMOS or LSTTL logic outputs down to 3.3V. The output driver features a wide VCC range, UVLO with hysteresis, and output current buffer stage. Operates over a temperature range of -40°C to 125°C.
Applications
- Switching power supplies
- Universal gate driver for switching converters
- Drives MOSFETs and IGBTs
Key features
- CMOS Schmitt trigger input
- Non-inverting input/output
- 3.3V input logic compatible
- Operating range: 5V~25V
- High capacitive load drive capability: switching time < 100ns at 1nF load
- Wide temperature range: -40°C~125°C
- Undervoltage lockout (UVLO)
- UVLO positive-going threshold: 4.0V
- UVLO negative-going threshold: 3.9V
- Turn-on/turn-off propagation delay: Ton/Toff = 50ns/50ns
- Drive current capability: source/sink = 2A/2A
- RoHS compliant
- SOT23-5
