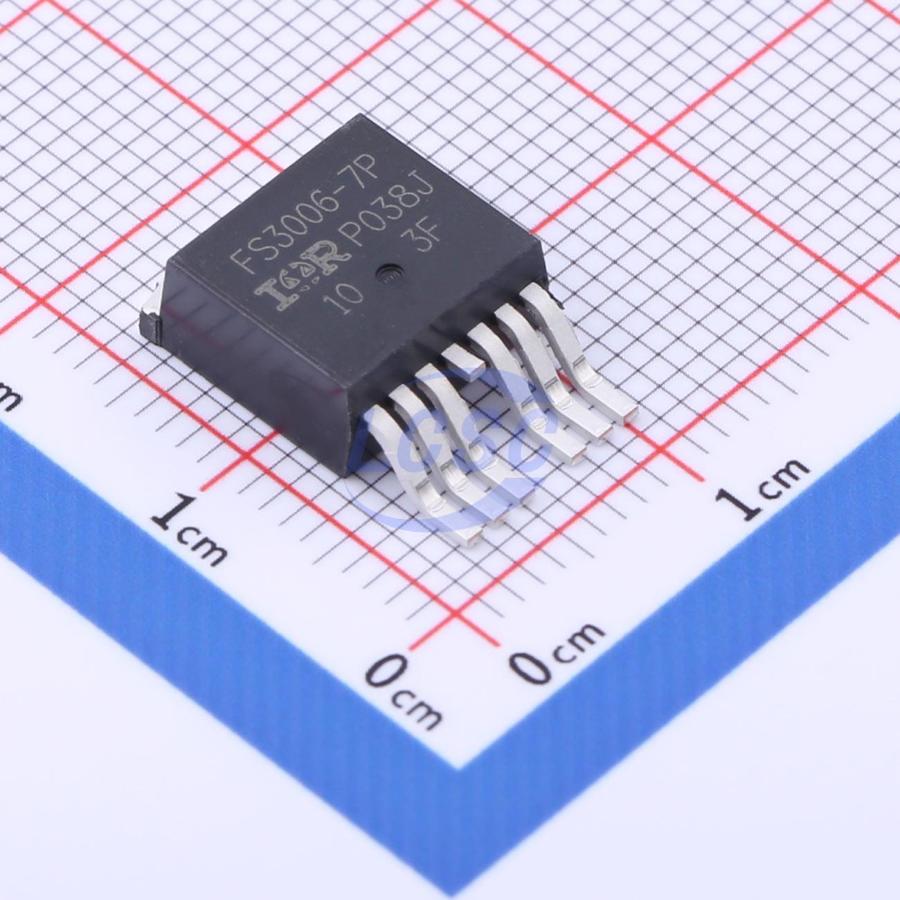

IRFS3006TRL7PP
N-Channel 60V 240A 375W Surface Mount D2PAK-7
D2PAK-7ROHS3 CompliantActive
MOSFET N-CH 60V 240A D2PAK-7
- Manufacturer
- Infineon
- Manufacturer part #
- IRFS3006TRL7PP
- Store part #
- C538002
- Package / case
- D2PAK-7
- Category
- Single FETs, MOSFETs
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
92 in stock
#C538002
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹405.06 | ₹405.06 |
| 10+ | ₹346.20 | ₹3,462.00 |
| 30+ | ₹309.29 | ₹9,278.70 |
| 100+ | ₹271.70 | ₹27,170.00 |
| 500+ | ₹254.56 | ₹1,27,280.00 |
| 800+ | ₹247.16 | ₹1,97,728.00 |
1 × ₹405.06
₹405.06
excl. GST
₹477.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRFS3006TRL7PP
₹405.06 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.007nF
- Ciss-Input Capacitance
- 8.85nF
- Pd - Power Dissipation
- 375W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 240A
- Reverse Transfer Capacitance (Crss)
- 525pF
- RDS(on)
- 2.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 300nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.77 g
Overview
Applications
- High Efficiency Synchronous Rectification in SMPS
- Uninterruptible Power Supply
- High Speed Power Switching
- Hard Switched and High Frequency Circuits
Key features
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dl/dt Capability
- Lead-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB025N10N3G(TOKMAS)#C21547647Tokmas · TO-263-7L | Tokmas | TO-263-7L | 755 | ₹226.01 · 755 in stock | View |
 | IRFS7530TRL7PP#C445669Infineon · TO-263-7 | Infineon | TO-263-7 | 2,204 | ₹220.61 · 2,204 in stock | View |
 | IPB015N08N5ATMA1#C3289284Infineon · TO-263-7 | Infineon | TO-263-7 | 56 | ₹329.16 · 56 in stock | View |
 | IPF019N12NM6ATMA1#C20191600Infineon · PG-TO263-7 | Infineon | PG-TO263-7 | 40 | ₹845.94 · 40 in stock | View |
 | IPF015N10N5ATMA1#C20191598Infineon · TO-263-7-1 | Infineon | TO-263-7-1 | 10 | ₹1,907.37 · 10 in stock | View |
