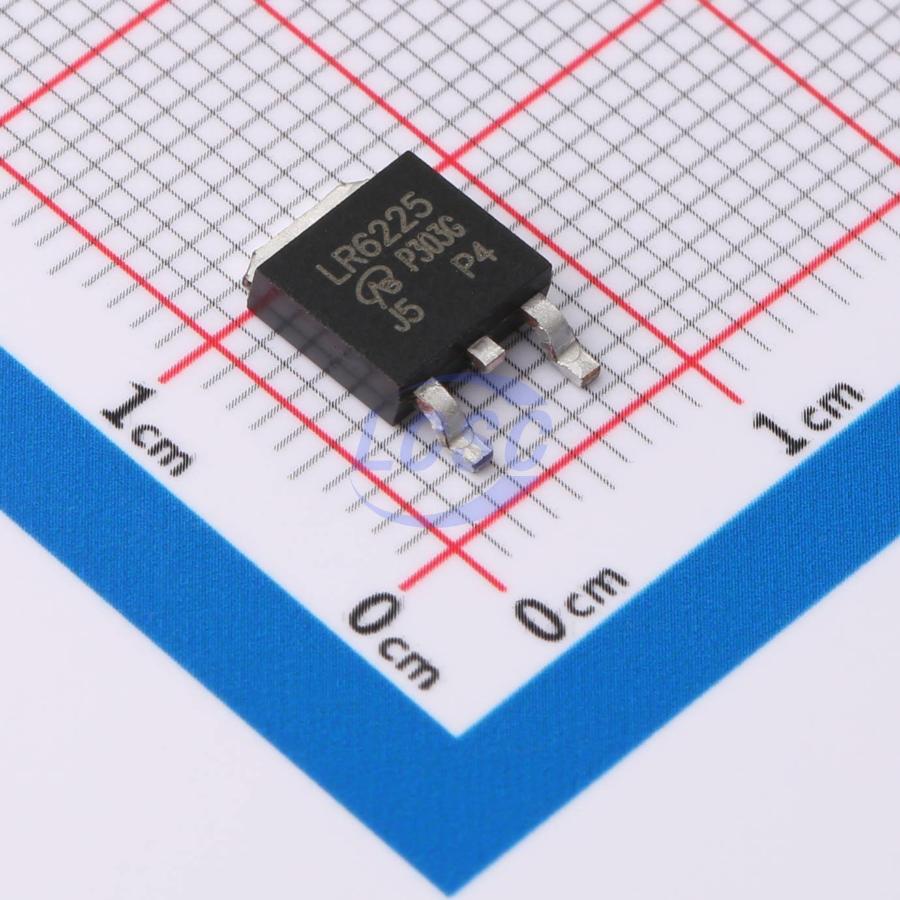

IRLR6225TRPBF-VB
N-Channel 20V 120A 3.75W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 20V 120A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRLR6225TRPBF-VB
- Store part #
- C7463569
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C7463569
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.66 | ₹84.66 |
| 10+ | ₹68.69 | ₹686.90 |
| 30+ | ₹60.71 | ₹1,821.30 |
| 100+ | ₹52.73 | ₹5,273.00 |
| 500+ | ₹47.89 | ₹23,945.00 |
| 1,000+ | ₹45.38 | ₹45,380.00 |
1 × ₹84.66
₹84.66
excl. GST
₹99.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRLR6225TRPBF-VB
₹84.66 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 6.201nF
- Pd - Power Dissipation
- 3.75W
- Reverse Transfer Capacitance (Crss)
- 970pF
- Number
- 1 N-channel
- Gate Charge(Qg)
- 171nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.391 g
Overview
Applications
- OR Gate Application - Server - DC-DC Conversion
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBE1202#C516940VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 38 | ₹85.92 · 38 in stock | View |
 | IRLR3717TRPBF-VB#C5355690VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 8 | ₹84.66 · 8 in stock | View |
 | VBZE100N02#C700617VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹85.29 · 40 in stock | View |
 | IRFR3711TRPBF-VB#C19626839VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 27 | ₹68.28 · 27 in stock | View |
 | IRLR7843TRPBF&-2-VB#C5137453VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 44 | ₹134.93 · 44 in stock | View |
