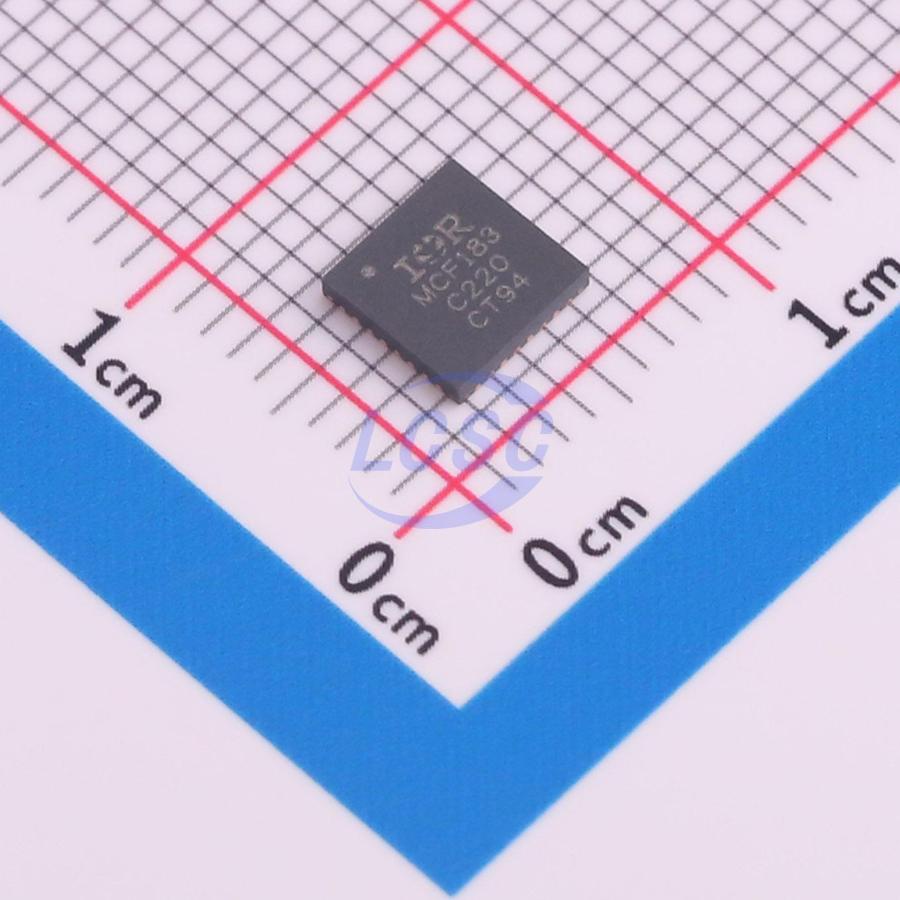

IRMCF183MTR
3V~3.6V QFN-32-EP(5x5) Motor Drivers, Controllers RoHS
High-performance sensorless motor control IC
- Manufacturer
- Infineon
- Manufacturer part #
- IRMCF183MTR
- Store part #
- C538206
- Package / case
- QFN-32-EP(5x5)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C538206
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹536.29 | ₹536.29 |
| 10+ | ₹474.15 | ₹4,741.50 |
| 30+ | ₹435.25 | ₹13,057.50 |
| 100+ | ₹395.27 | ₹39,527.00 |
| 500+ | ₹377.23 | ₹1,88,615.00 |
| 1,000+ | ₹369.41 | ₹3,69,410.00 |
1 × ₹536.29
₹536.29
excl. GST
₹632.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRMCF183MTR
₹536.29 for 1 + GST
Specifications
- Voltage - Supply
- 3V~3.6V
- Interface
- UART
- Operating Temperature
- -40℃~+125℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
IRMCF183M is a high performance Flash based motion control IC designed and optimized for low cost appliance control which contains two computation engines integrated into one monolithic chip. One is the Flexible Motion Control Engine (MCETM) for sensorless control of permanent magnet motors or induction motors; the other is an 8-bit high-speed microcontroller (8051). The user can program a motion control algorithm by connecting these control elements using a graphic compiler. Key components of the complex sensorless control algorithms, such as the Angle Estimator, are provided as complete pre-defined control blocks. A unique analog/digital circuit and algorithm fully supports single shunt or leg shunt current reconstruction. IRMCF183M comes in a 32 pin 5x5 QFN package.
Key features
- MCETM (Flexible Motion Control Engine) - Dedicated computation engine for high efficiency sinusoidal sensorless motor control
- Built-in hardware peripheral for single or two shunt current feedback reconstruction and analog circuits
- Embedded 8-bit high speed microcontroller (8051) for flexible I/O and man-machine control
- JTAG programming port for emulation/debugger
- Serial communication interface (UART)
- Watchdog timer with independent internal clock
- Internal 64Kbyte Flash
- 3.3V single supply
