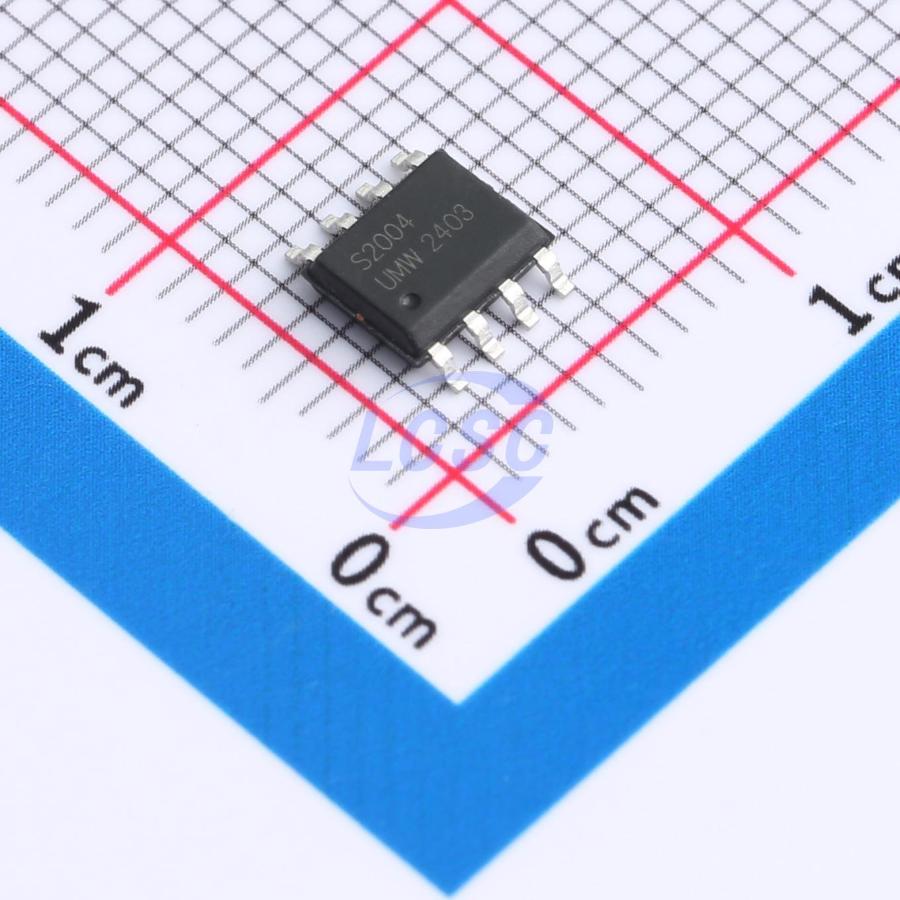

IRS2004STR(UMW)
10V~20V 600mA 290mA SOP-8 Gate Drivers RoHS
250V Half Bridge MOSFET/IGBT Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- IRS2004STR(UMW)
- Store part #
- C20623199
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,450 in stock
#C20623199
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.27 | ₹131.35 |
| 50+ | ₹22.95 | ₹1,147.50 |
| 150+ | ₹21.53 | ₹3,229.50 |
| 500+ | ₹19.76 | ₹9,880.00 |
| 2,500+ | ₹18.96 | ₹47,400.00 |
| 5,000+ | ₹18.49 | ₹92,450.00 |
5 × ₹26.27
₹131.35
excl. GST
₹154.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS2004STR(UMW)
₹131.35 for 5 + GST
Specifications
- Low Level Delay Time
- 680ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 300uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 30ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.209 g
Overview
The IRS2004S is a high voltage, high speed power MOSFET drivers with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET in the high-side configuration which operates up to 250 V.
Applications
- Motor Control
- Air Conditioners
- Washing Machines
- General Purpose Inverters
- Micro/Mini Inverter Drives
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +250 V
- 3.3V, 5V and 15V input logic compatible
- dV/dt noise Immunity ±50 V/nsec
- Allowable negative Vs capability: -9V
- Gate drive supply range from 10V to 20V
- Undervoltage lockout for both channels --UVLO forward 8.9V --UVLO reverse 8.2V
- Cross-conduction prevention logic --Deadtime 520ns
- Propagation delay --Ton/Toff =680ns/150ns
- Wide operating temperature range -40°C~125°C
- Typically output Source/Sink current capability: 290mA/600mA
