InfineonDatasheet (PDF)

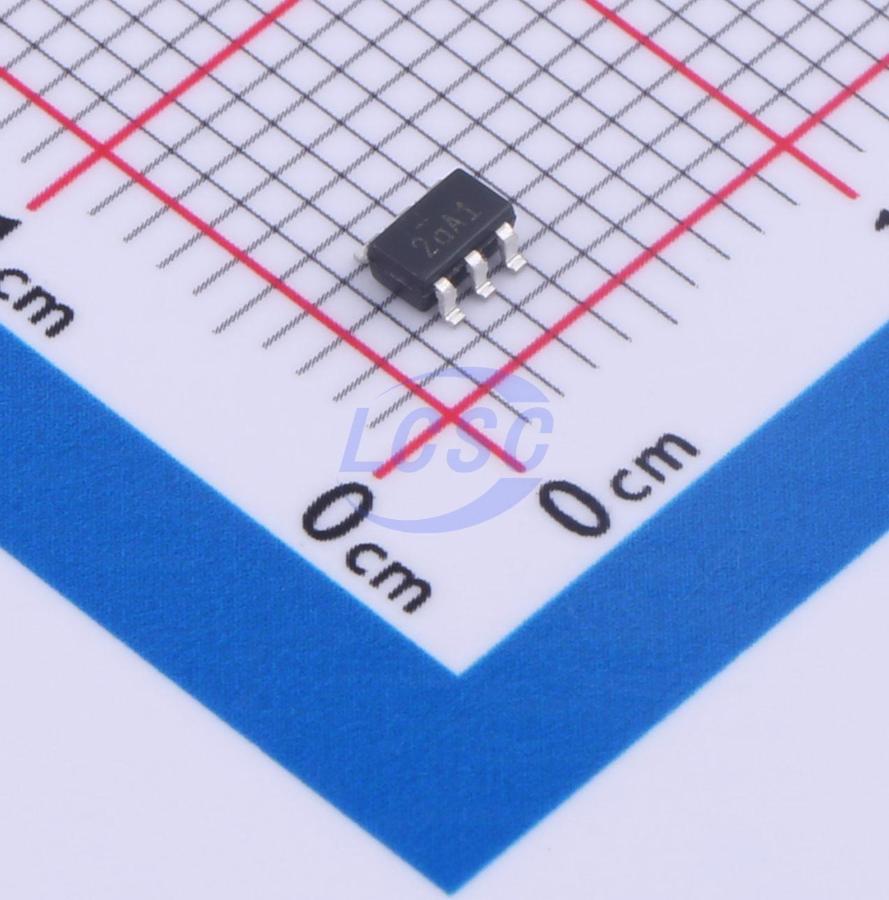

IRS20752LTRPBF
10V~18V 240mA 160mA SOT-23-6L Gate Drivers RoHS
SOT-23-6LROHS3 CompliantActive
High-Side Gate Driver IC
- Manufacturer
- Infineon
- Manufacturer part #
- IRS20752LTRPBF
- Store part #
- C495818
- Package / case
- SOT-23-6L
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C495818
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.89 | ₹111.89 |
| 10+ | ₹89.55 | ₹895.50 |
| 30+ | ₹78.49 | ₹2,354.70 |
| 100+ | ₹67.43 | ₹6,743.00 |
| 500+ | ₹60.94 | ₹30,470.00 |
| 1,000+ | ₹57.46 | ₹57,460.00 |
1 × ₹111.89
₹111.89
excl. GST
₹132.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRS20752LTRPBF
₹111.89 for 1 + GST
Specifications
- Low Level Delay Time
- 140ns
- High Level Delay Time
- 215ns
- Quiescent Current
- 100uA
- Voltage - Supply
- 10V~18V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side
- Current - Output Low(IOL)
- 240mA
- Rise Time
- 85ns
- Fall Time
- 40ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 160mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
Applications
- High-side gate drive control
- Pulse transformer replacement
- General-purpose switch-mode power supply electronics
Key features
- Floating gate driver designed for bootstrap operation
- Operating voltage up to +200V
- Excellent dv/dt immunity
- Excellent negative VS transient immunity
- Wide VCC range
- UVLO protection for both low-side and high-side
- Schmitt-trigger inputs with internal pull-down resistors
- Non-inverting output
- Excellent latch immunity on all inputs and outputs
- RoHS-compliant 6-pin SOT-23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRS10752LTRPBF#C126923Infineon · SOT-23-6 | Infineon | SOT-23-6 | 167 | ₹119.52 · 167 in stock | View |
 | IRS25752LTRPBF#C538346Infineon · SOT-23-6 | Infineon | SOT-23-6 | 160 | ₹144.07 · 160 in stock | View |
| LTC4440IS6#TRPBF#C688555ADI · TSOT-23-6L | ADI | TSOT-23-6L | On request | ₹487.02 · 0 in stock | View | |
 | LTC4440ES6#TRMPBF#C360774ADI · TSOT-23-6L | ADI | TSOT-23-6L | On request | ₹759.35 · 0 in stock | View |
| LTC4440ES6#TRPBF#C688550ADI · TSOT-23-6L | ADI | TSOT-23-6L | On request | ₹458.66 · 0 in stock | View | |
