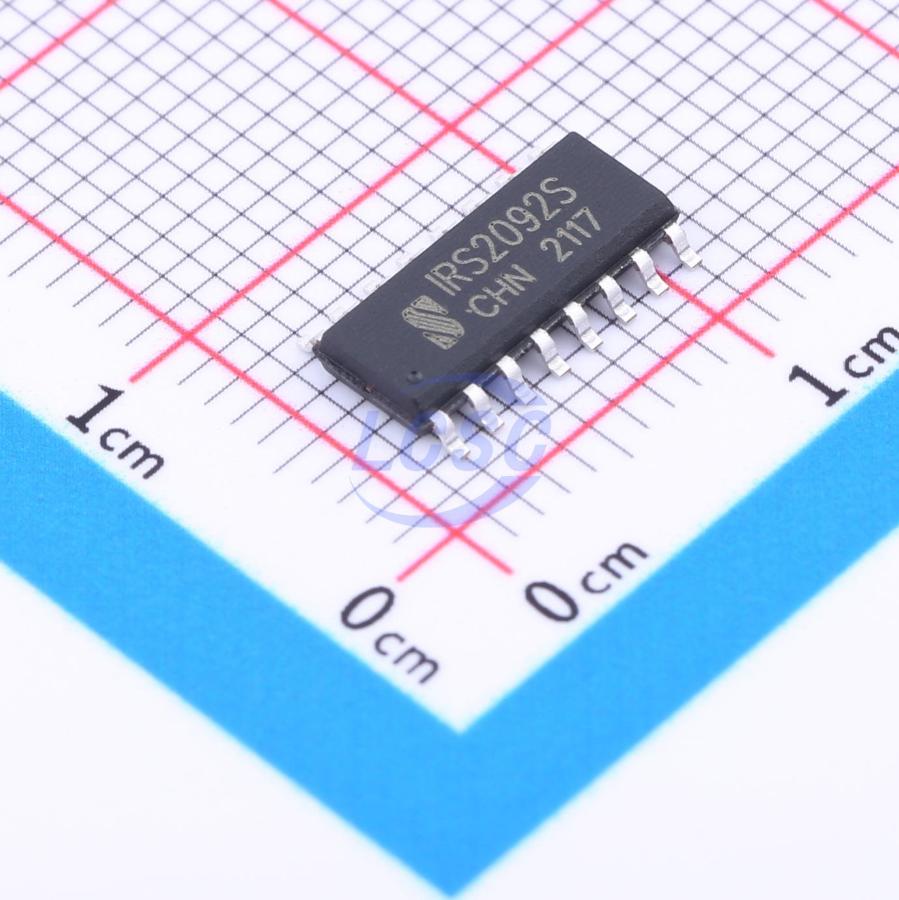

IRS2092STRPBF-JSM

3mA 10V~18V 1-Channel 1W Class D SOP-16 Audio Amplifiers RoHS

SOP-16ROHS CompliantActive

2A 300V digital audio power amplifier with integrated protection function

Manufacturer: JSMSEMI
Manufacturer part #: IRS2092STRPBF-JSM
Store part #: C2900592
Package / case: SOP-16
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,313 in stock

#C2900592

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹195.35	₹195.35
10+	₹160.45	₹1,604.50
30+	₹141.38	₹4,241.40
100+	₹119.69	₹11,969.00
500+	₹109.93	₹54,965.00
1,000+	₹105.59	₹1,05,590.00

Quantity (min 1)

1 × ₹195.35

₹195.35

excl. GST

₹230.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

IRS2092STRPBF-JSM

₹195.35 for 1 + GST

Specifications

Quiescent Current: 3mA
Voltage - Supply: 10V~18V
Features: Enable/shutdown function;Overvoltage protection;Automatic mute/no-noise switch
Operating Temperature: -40℃~+125℃
Speaker Channels: 1-Channel
Output Power: 1W
Class: Class D
Power Supply Rejection Ratio (PSRR): 60dB

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.26 g

Overview

The IRS2092S is a high voltage, high performance Class D audio amplifier driver with PWM modulator and protection, Design of Class D audio amplifier system for large output power. Integrated analog power amplifier, PWM wave modulation circuit, high and low voltage side overcurrent protection function (for high and low voltage side two power devices), anti- straight- through dead zone logic and three voltage domains (VAA~VSS / VCC~COM / VB~VS), The product adopts flexible and open topology structure to realize PWM modulation function. IRS2092S Integrated "click" sound cancellation during startup and shutdown to suppress unnecessary auditory noise during PWM signal startup and shutdown. A complete Class D audio power amplifier can be realized with a power bridge circuit and a few passive components. It can work in the temperature range of - 40℃ to 125℃.

Applications

Motor Control
Air Conditioners/ Washing Machines
General Purpose Inverters
Micro/Mini Inverter Drives

Key features

Integrated analog input Class D audio amplifier driver in a small 16 pin package
Error amplifier open loop gain >60dB
Programmable bidirectional over- current protection with self- reset function
External 5V reference voltage output, low voltage side overcurrent protection threshold programmable
Programmable timing of protected signal duration
Programmable preset deadtime for improved THD performances
Start and stop click noise reduction
Integrated multi- voltage domain undervoltage protection and overvoltage clamp protection
High noise immunity: >50V / ns
±150V ratings deliver up to 500 W in output power
Operates up to 800KHz
Wide temperature range: - 40℃ ~ 125℃
High and low side propagation delay: 350/335ns
OC protection delay (max): 500ns
Shutdown propagation delay (max): 250ns
Output high short circuit current (Source/Sink) up to 2A
RoHS compliant
