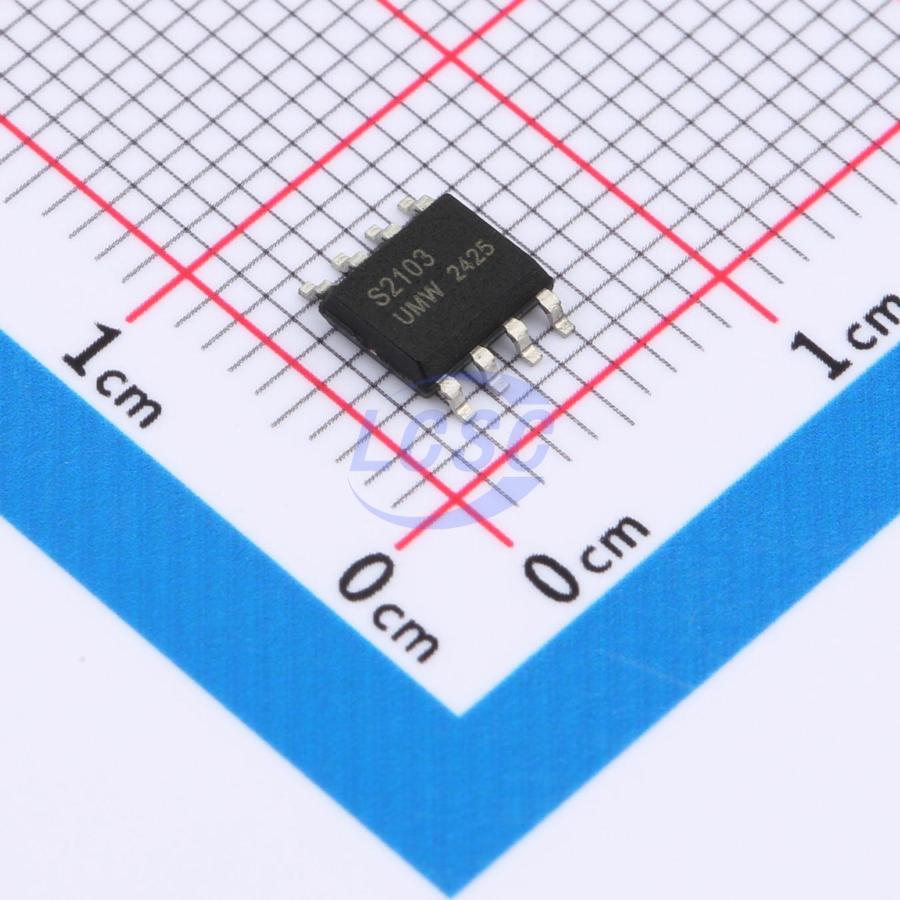

IRS2103STR(UMW)
10V~20V 600mA 300mA SOP-8 Gate Drivers RoHS
700V Highside & Lowside MOSFET/IGBT Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- IRS2103STR(UMW)
- Store part #
- C29780641
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,015 in stock
#C29780641
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹46.40 | ₹46.40 |
| 10+ | ₹40.38 | ₹403.80 |
| 30+ | ₹37.81 | ₹1,134.30 |
| 100+ | ₹34.58 | ₹3,458.00 |
| 500+ | ₹33.08 | ₹16,540.00 |
| 1,000+ | ₹32.23 | ₹32,230.00 |
1 × ₹46.40
₹46.40
excl. GST
₹54.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS2103STR(UMW)
₹46.40 for 1 + GST
Specifications
- Low Level Delay Time
- 650ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.125 g
Overview
The IRS2103 is a high voltage, high speed power MOSFET drivers with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET in the high-side configuration which operates up to 700 V
Applications
- Motor Control
- Air Conditioners/ Washing Machines
- General Purpose Inverters
- Micro/Mini Inverter Drives
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +700 V
- 3.3 V, 5V and 15V logic compatible
- dV/dt noise Immunity ±50 V/nsec
- Allowable negative Vs capability = -9 V
- VCC Undervoltage Lockout circuit
- Undervoltage reset thresholo = 8.9 V
- Undervoltage set thresholo = 8.2 V
- Transmission characteristic
- turn-on/turn-off Propagation delay Ton/Toff = 650ns/130ns
- Delay matching = 50 ns
- Cross-conduction prevention logic
- Deadtime: 520ns
- Wide operating temperature range -40°C ~ 125°C
- Output Source/ Sink current 300mA/600mA
- RoSH compatible
- SOP-8
