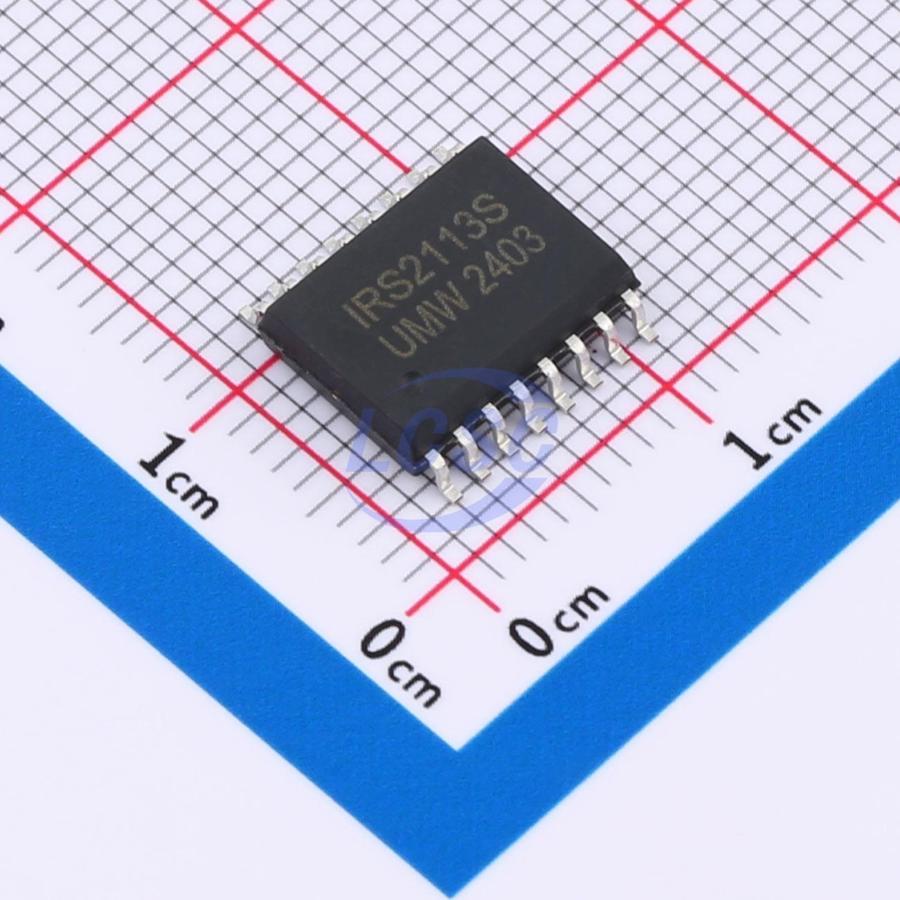

IRS2113STR(UMW)
10V~20V 4A 4A SOP-16-300mil Gate Drivers RoHS
700V 4A Half Bridge MOSFET/IGBT Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- IRS2113STR(UMW)
- Store part #
- C20623178
- Package / case
- SOP-16-300mil
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,080 in stock
#C20623178
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.65 | ₹96.65 |
| 10+ | ₹85.48 | ₹854.80 |
| 30+ | ₹79.90 | ₹2,397.00 |
| 100+ | ₹74.52 | ₹7,452.00 |
| 500+ | ₹71.10 | ₹35,550.00 |
| 1,000+ | ₹69.38 | ₹69,380.00 |
1 × ₹96.65
₹96.65
excl. GST
₹114.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IRS2113STR(UMW)
₹96.65 for 1 + GST
Specifications
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 15uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 4A
- Rise Time
- 25ns
- Fall Time
- 17ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.691 g
Overview
UMW IRS2113STR is a high-voltage, high-speed power MOSFET driver with independent high-side and low-side referenced output channels. Its proprietary high-voltage IC and latch-up immune CMOS technology achieve a robust monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output drivers feature high pulse current buffer stages designed to minimize cross-conduction in the driver. The floating channel can be used to drive N-channel power MOSFETs in high-side configurations, with operating voltages up to +700V.
Applications
- UPS general-purpose inverters
- Half-bridge and full-bridge converters
- High-density switching power supplies
- Solar inverters
- Motor drives
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to +700V
- Compatible with 3.3V, 5V, and 15V input logic
- Tolerant of negative transient voltage, dV/dt immune
- Allowable negative VS capability: -9V
- Gate drive supply range: 10V to 20V
- Independent logic supply range: 3.3V to 20V
- ±5V offset between logic and power ground
