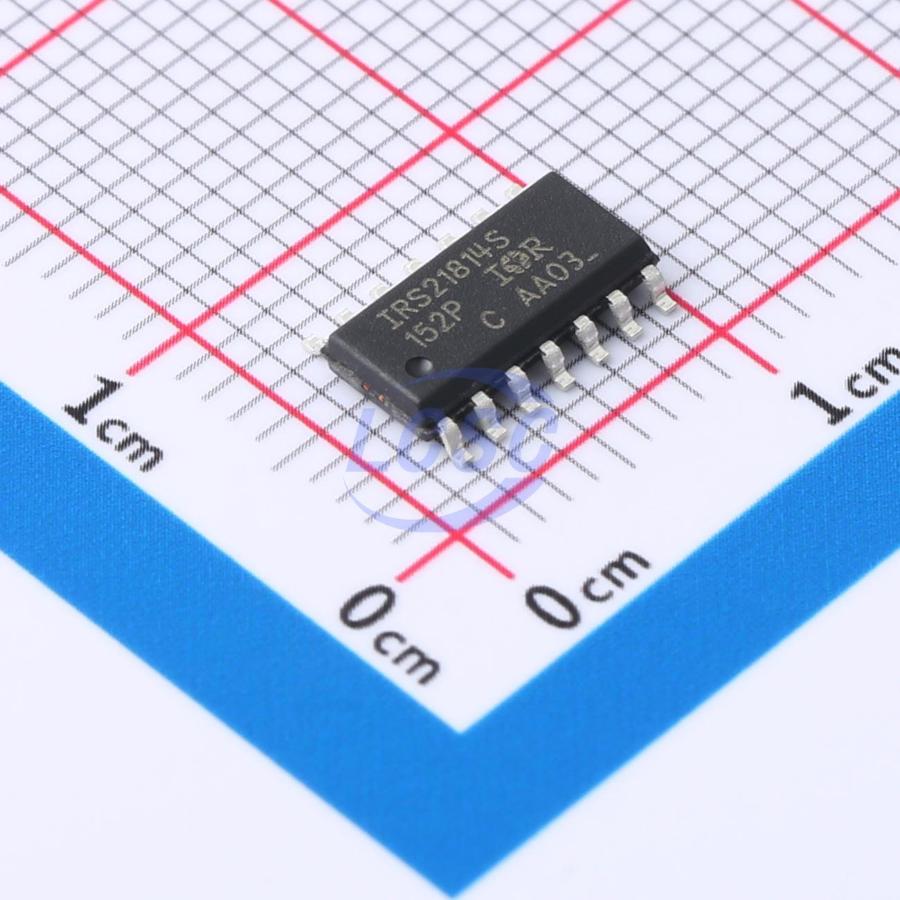

IRS21814STRPBF
10V~20V 1.8A 1.4A SOIC-14 Gate Drivers RoHS
- Manufacturer
- Infineon
- Manufacturer part #
- IRS21814STRPBF
- Store part #
- C538299
- Package / case
- SOIC-14
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,469 in stock
#C538299
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹209.67 | ₹209.67 |
| 10+ | ₹172.16 | ₹1,721.60 |
| 30+ | ₹151.56 | ₹4,546.80 |
| 100+ | ₹128.36 | ₹12,836.00 |
| 500+ | ₹117.96 | ₹58,980.00 |
| 1,000+ | ₹113.39 | ₹1,13,390.00 |
1 × ₹209.67
₹209.67
excl. GST
₹247.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS21814STRPBF
₹209.67 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 180ns
- High Level Delay Time
- 220ns
- Quiescent Current
- 120uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1.8A
- Rise Time
- 40ns
- Fall Time
- 20ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 1.4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.91 g
Overview
The IRS2181/IRS21814 are high voltage, high speed power MOSFET and IGBT drivers with independent high-side and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +600 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 V to 20 V
- Undervoltage lockout for both channels 3.3 V and 5 V input logic compatible
- Matched propagation delay for both channels
- Logic and power ground +/-5 V offset
- Lower di/dt gate driver for better noise immunity
- Output source/sink current capability 1.4 A/1.8 A
- RoHS compliant
