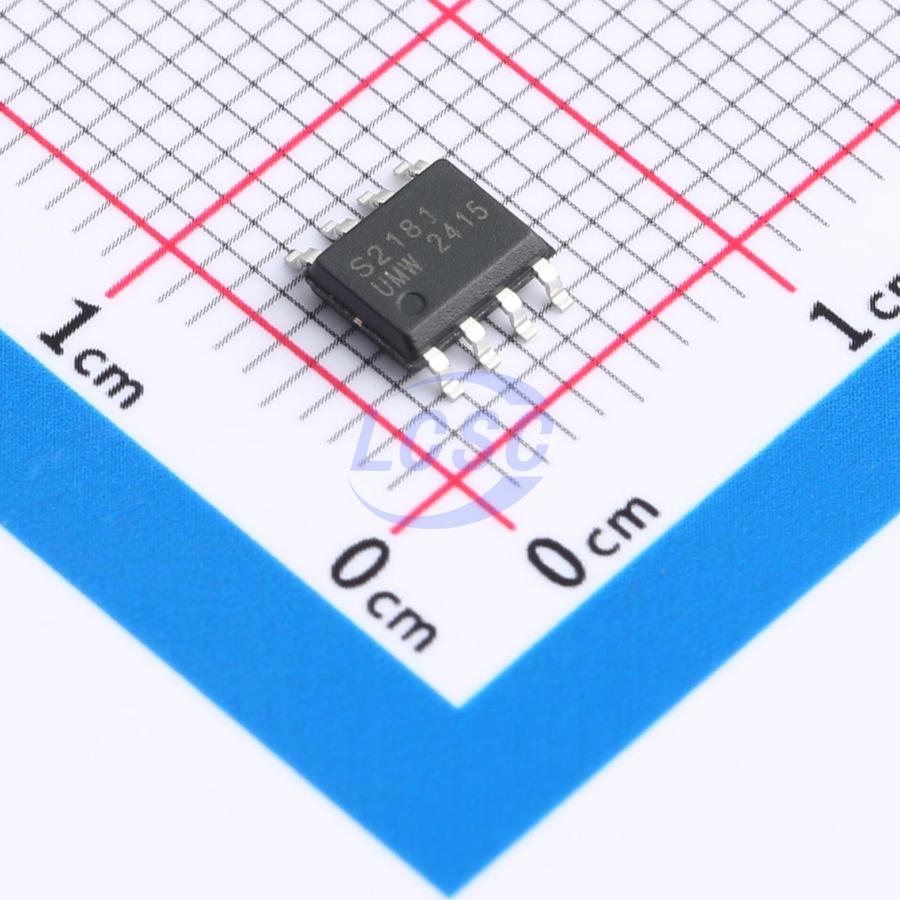

IRS2181STR(UMW)
10V~20V 4A 4A SOP-8 Gate Drivers RoHS
700V Half Bridge MOSFET/IGBT Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- IRS2181STR(UMW)
- Store part #
- C20623180
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,123 in stock
#C20623180
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.43 | ₹88.43 |
| 10+ | ₹70.83 | ₹708.30 |
| 30+ | ₹61.93 | ₹1,857.90 |
| 100+ | ₹53.01 | ₹5,301.00 |
| 500+ | ₹47.80 | ₹23,900.00 |
| 1,000+ | ₹45.19 | ₹45,190.00 |
1 × ₹88.43
₹88.43
excl. GST
₹104.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS2181STR(UMW)
₹88.43 for 1 + GST
Specifications
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 150uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 4A
- Rise Time
- 15ns
- Fall Time
- 10ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.211 g
Overview
UMW IRS2181STR is a high-voltage, high-speed power MOSFET driver with independent high-side and low-side referenced output channels. Its proprietary high-voltage IC and latch-up immune CMOS technology enable a robust monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output drivers feature a high-pulse-current buffer stage designed to minimize cross-conduction in the driver. The floating channel can be used to drive N-channel power MOSFETs in high-side configurations, with operating voltages up to 700V.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro/Mini Inverter Driver
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity: ±50 V/ns
- Allowable negative VS: -9V
- Gate drive supply range: 10V to 20V
- Typical output source/sink current capability: 4A/4A
- Dual-channel UVLO
- Forward UVLO threshold: 8.9V
- Reverse UVLO threshold: 8.2V
- Turn-on/turn-off propagation delay: Ton/Toff = 130ns/130ns
- Matched propagation delay for both channels
