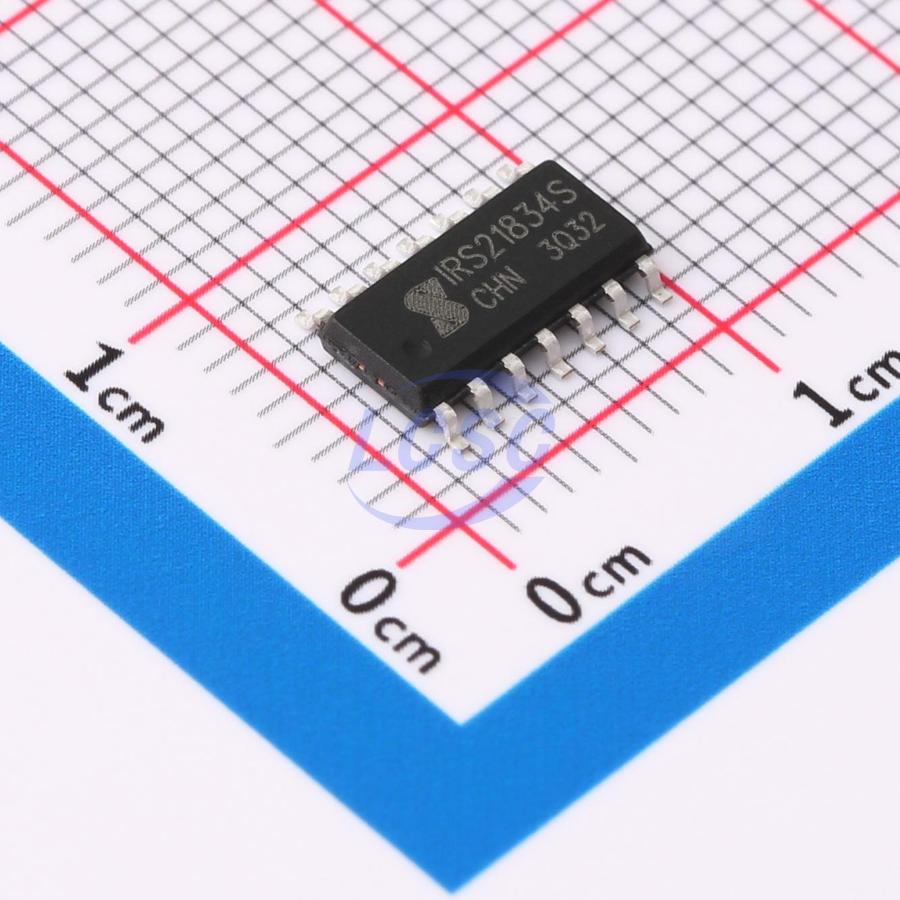

IRS21834STRPBF-JSM

The IRS21834S is a high-voltage, high-speed power MOSFET/IGBT high- and low-side gate driver IC featuring two non-independent propagation channels. It integrates protection circuits including high- and low-side UVLO, overvoltage clamp, and shoot-through lockout. The device offers high-current pulse output capability, with logic inputs compatible with CMOS or LSTTL logic output levels as low as 3.3V, a maximum output current of 4A, and a floating channel maximum operating voltage of 700V. It is suitable for driving N-channel high-voltage power MOSFETs/IGBTs and similar devices. The IRS21834S comes in a SOP-14 package and operates over a temperature range of -40°C to 125°C.

Applications

• Motor Control
• Air Conditioner/Washing Machine
• General-Purpose Inverter
• Micro Inverter Driver

Key features

• Floating channel for bootstrap operation
• Maximum operating voltage up to 700V
• Compatible with 3.3V, 5V, and 15V input logic
• dV/dt immunity up to ±50V/nsec
• Vs negative voltage tolerance down to -9V
• Gate drive voltage: 10V to 20V
• High- and low-side UVLO
• UVLO positive threshold 8.9V
• UVLO negative threshold 8.2V
• Dead time adjustable via external resistor (RDT)
• DT = 400ns@RDT = 0
• DT = 5μs@RDT = 200kΩ
• Propagation delay for turn-on/turn-off
• Ton/Toff = 130ns/130ns
• High- and low-side delay matched
• Output drive current capability
• Source/Sink = 4.0A/4.0A
• RoHS compliant
• SOP-14
