MinosDatasheet (PDF)

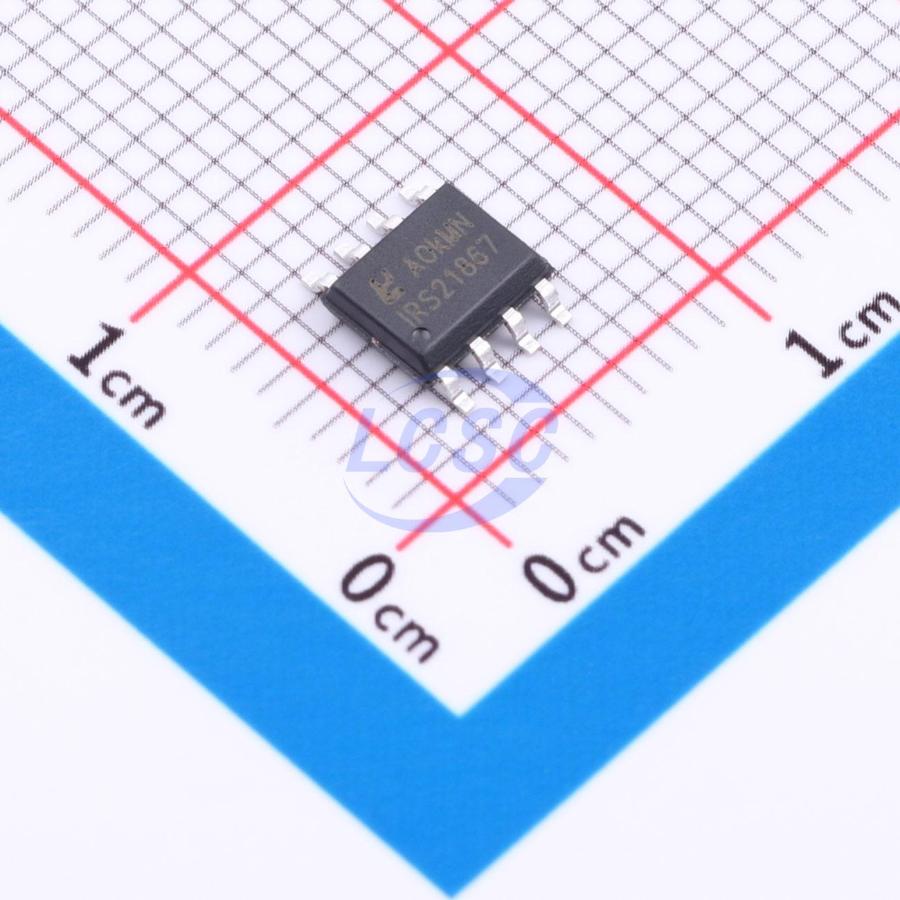

IRS21867-MNS
6.8V~20V 4A 4A SOP-8 Gate Drivers
SOP-8RoHSActive
- Manufacturer
- Minos
- Manufacturer part #
- IRS21867-MNS
- Store part #
- C52941369
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,293 in stock
#C52941369
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.21 | ₹73.21 |
| 10+ | ₹59.26 | ₹592.60 |
| 30+ | ₹52.39 | ₹1,571.70 |
| 100+ | ₹45.51 | ₹4,551.00 |
| 500+ | ₹41.22 | ₹20,610.00 |
| 1,000+ | ₹39.29 | ₹39,290.00 |
1 × ₹73.21
₹73.21
excl. GST
₹86.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRS21867-MNS
₹73.21 for 1 + GST
Specifications
- Quiescent Current
- 65uA
- Voltage - Supply
- 6.8V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 8ns
- Features
- Dead-time control
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The IRS21867 is a dedicated gate driver IC featuring a half-bridge architecture, designed for driving high-power MOSFETs and IGBTs. This IC integrates logic signal processing, dead-time control, undervoltage lockout (UVLO), level shifting, pulse filtering, and output drive circuitry, making it suitable for brushless motor controllers and electric vehicle controller applications.
Applications
- Brushless motor driver
- Industrial applications and drives
- Electric vehicle controller
Key features
- High-side floating bootstrap power supply design, 600 V rated voltage
- Compatible with 5V and 3.3V input logic levels
- Output current capability: 10 ± 4.0 A / 4.0 A
- Gate drive supply voltage range: 6.8 ~ 20 V
- Matched propagation delay between high-side and low-side drive signals
- ±5V voltage offset tolerance between logic ground and power ground
- UV lockout protection for both high-side and low-side supplies
