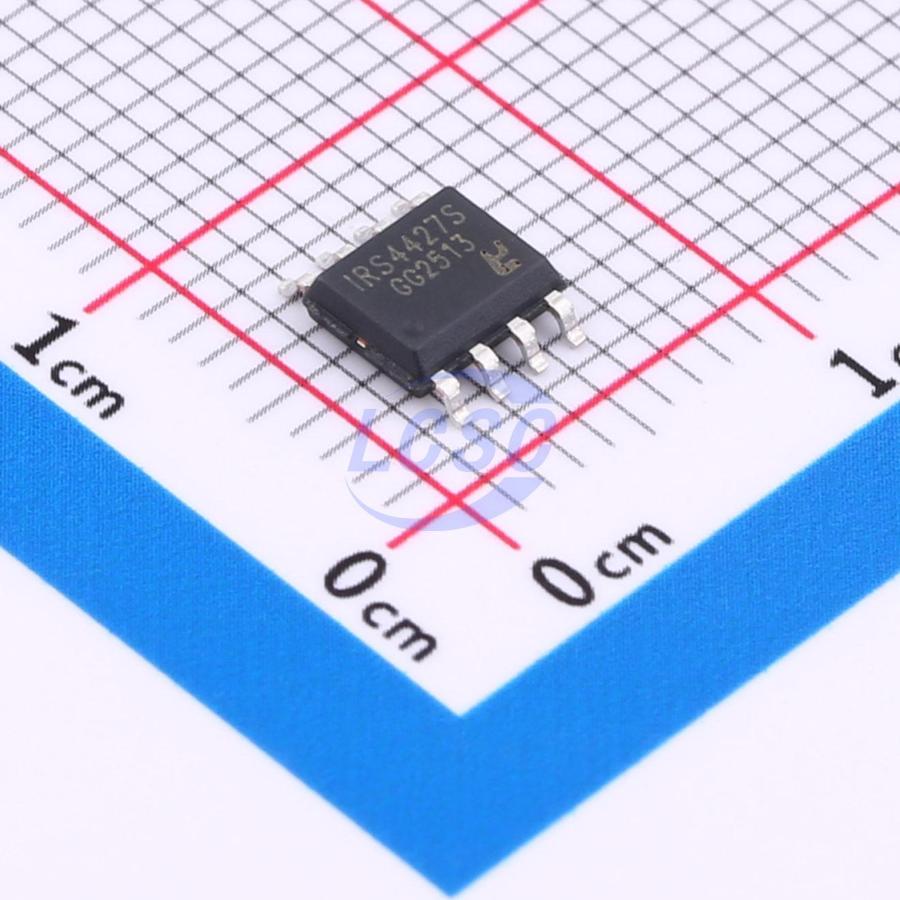

IRS4427S-MNS
Gate Driver IC MOSFET IGBT SOIC-8
Dual-channel 2A ultra-high-speed power switch driver
- Manufacturer
- Minos
- Manufacturer part #
- IRS4427S-MNS
- Store part #
- C47967300
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,075 in stock
#C47967300
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.10 | ₹225.50 |
| 50+ | ₹35.24 | ₹1,762.00 |
| 150+ | ₹31.02 | ₹4,653.00 |
| 500+ | ₹25.75 | ₹12,875.00 |
| 2,500+ | ₹23.40 | ₹58,500.00 |
| 5,000+ | ₹22.00 | ₹1,10,000.00 |
5 × ₹45.10
₹225.50
excl. GST
₹266.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS4427S-MNS
₹225.50 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 40ns
- High Level Delay Time
- 40ns
- Quiescent Current
- 1mA
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 2A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.201 g
Overview
The IRS4427S is a power switch driver. It features matched rise and fall times when charging and discharging the gates of power switches. The device offers high latch-up immunity under any conditions within its rated power and voltage range. Noise spikes up to 5V (either polarity) on the ground pin will not cause damage. It can accept reverse currents up to 500mA forced back into its outputs without damage or logic upset. All terminals are fully protected against ESD up to 2.0kV.
Applications
- Switching power supplies
- Switch-mode converters
- Line drivers
- Pulse transformer drive
- Driving MOSFETs and IGBTs
Key features
- Latch protection: withstands 0.5A reverse current
- Input logic protection down to -10V
- Low output impedance
- Dual-channel driver in single chip
- Peak output current: 2A
- Operating range: 4.5V~25V
- Maximum input voltage up to 5V
- High capacitive load drive capability: switching time < 25ns at 1nF load
- Matched rise/fall times
- Propagation delay: 40ns
- Wide temperature range: -40℃~125℃
- Turn-on/turn-off delay: Ton/Toff = 70ns/70ns
- RoHS-compliant SOIC-8 package
