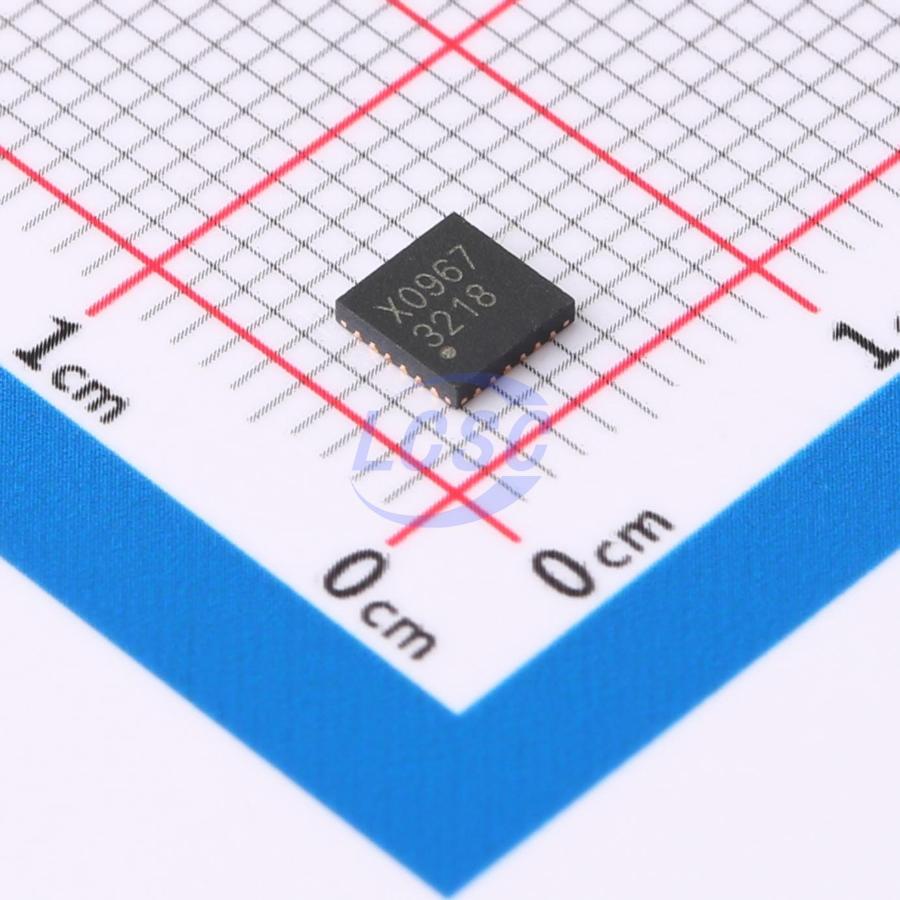

IS31FL3218-QFLS2-TR
38mA 400kHz PWM 18 DC-DC 2.7V~5.5V QFN-24-EP(4x4) LED Drivers RoHS
18 CHANNELS LED DRIVER
- Manufacturer
- ISSI
- Manufacturer part #
- IS31FL3218-QFLS2-TR
- Store part #
- C2940546
- Package / case
- QFN-24-EP(4x4)
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,308 in stock
#C2940546
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.23 | ₹88.23 |
| 10+ | ₹71.06 | ₹710.60 |
| 30+ | ₹62.37 | ₹1,871.10 |
| 100+ | ₹53.90 | ₹5,390.00 |
| 500+ | ₹48.90 | ₹24,450.00 |
| 1,000+ | ₹46.29 | ₹46,290.00 |
1 × ₹88.23
₹88.23
excl. GST
₹104.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IS31FL3218-QFLS2-TR
₹88.23 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 38mA
- Frequency - Switching
- 400kHz
- Dimming
- PWM
- Number of Channels
- 18
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Voltage - Input(DC)
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.184 g
Overview
IS31FL3218 is comprised of 18 constant current channels each with independent PWM control, designed for driving LEDs. The output current of each channel can be set at up to 38mA (Max.) by an external resistor. The average LED current of each channel can be changed in 256 steps by changing the PWM duty cycle through an I2C interface. The chip can be turned off by pulling the SDB pin low or by using the software shutdown feature to reduce power consumption. The slave address is fixed “1010 1000”. IS31FL3218 is available in QFN - 24 (4mm×4mm) and SOP - 24 packages. It operates from 2.7V to 5.5V over the temperature range of -40°C to +85°C.
Applications
- Mobile phones and other hand - held devices for LED display
- LED in home appliances
Key features
- 2.7V to 5.5V supply
- I2C interface, automatic address increment function
- Internal reset register
- Modulate LED brightness with 256 steps PWM
- Each channel can be controlled independently
- -40°C to +85°C temperature range
- QFN - 24 (4mm×4mm), SOP - 24 packages
