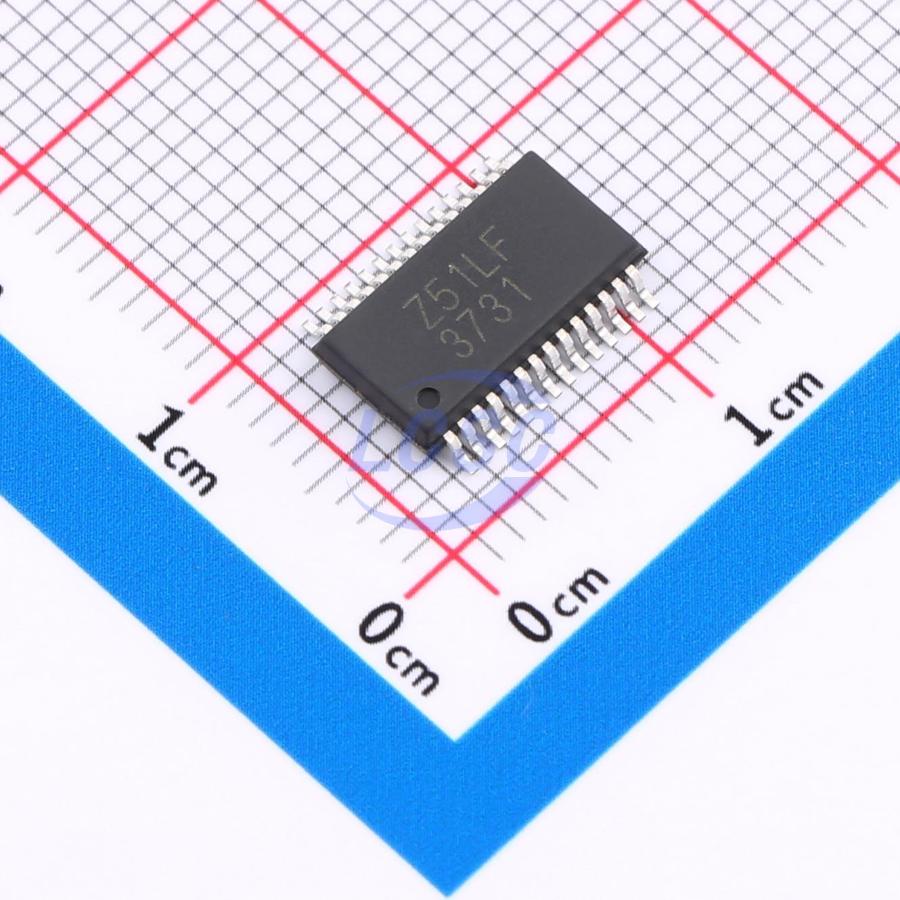

IS31FL3731-SALS2-TR
34mA 400kHz PWM 18 DC-DC 2.7V~5.5V SSOP-28-208mil LED Drivers RoHS
Audio Modulated Matrix LED Driver
- Manufacturer
- ISSI
- Manufacturer part #
- IS31FL3731-SALS2-TR
- Store part #
- C2940545
- Package / case
- SSOP-28-208mil
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,272 in stock
#C2940545
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.73 | ₹128.73 |
| 10+ | ₹116.99 | ₹1,169.90 |
| 30+ | ₹110.47 | ₹3,314.10 |
| 100+ | ₹103.29 | ₹10,329.00 |
| 500+ | ₹100.03 | ₹50,015.00 |
| 1,000+ | ₹98.51 | ₹98,510.00 |
1 × ₹128.73
₹128.73
excl. GST
₹151.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IS31FL3731-SALS2-TR
₹128.73 for 1 + GST
Specifications
- Output Current
- 34mA
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 400kHz
- Dimming
- PWM
- Number of Channels
- 18
- Type
- DC-DC
- Switch tube (built-in/external)
- External
- Voltage - Input(DC)
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.502 g
Overview
The IS31FL3731 is a compact LED driver for 144 single LEDs. The device can be programmed via an I2C compatible interface. The IS31FL3731 offers two blocks each driving 72 LEDs with 1/9 cycle rate. The required lines to drive all 144 LEDs are reduced to 18 by using the cross-plexing feature optimizing space on the PCB. Additionally each of the 144 LEDs can be dimmed individually with 8-bit allowing 256 steps of linear dimming. To reduce CPU usage up to 8 frames can be stored with individual time delays between frames to play small animations automatically. LED frames can be modulated with audio signal. IS31FL3731 is available in QFN-28 (4mm×4mm) and SSOP-28 package. It operates from 2.7V to 5.5V over the temperature range of -40°C to +85°C.
Applications
- Mobile phones and other hand-held devices for LED display
- LED in home appliances
Key features
- Supply voltage range: 2.7V to 5.5V
- 400kHz I2C-compatible interface
- 144 LEDs in dot matrix
- Individual blink control
- 8 frames memory for animations
- Picture mode and animation mode
- Auto intensity breathing during the switching of different frames
- LED frames displayed can be modulated with audio signal intensity
- LED light intensity can be modulated with audio signal intensity
- QFN-28 (4mm×4mm) and SSOP-28 package
