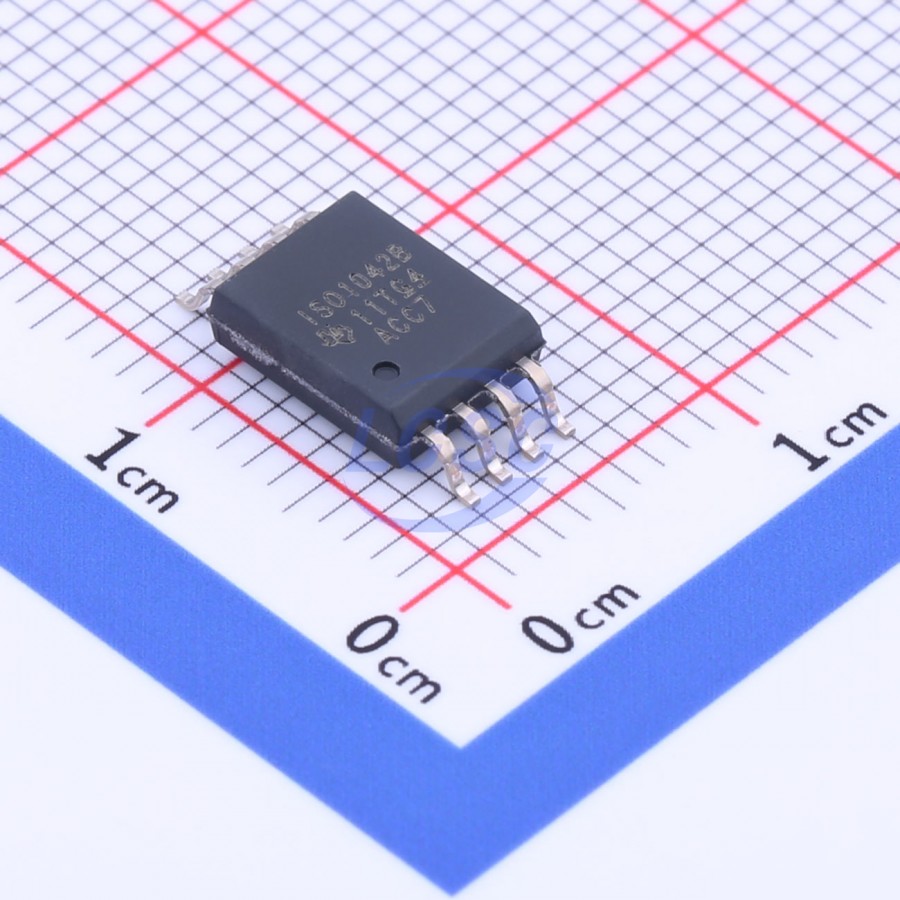

ISO1042BDWVR

CAN FD Transceiver 5Mbps SOIC-8-300mil Drivers, Receivers, Transceivers RoHS

SOIC-8-300milROHS3 CompliantActive

Galvanically-isolated CAN transceiver

Manufacturer: TI
Manufacturer part #: ISO1042BDWVR
Store part #: C484409
Package / case: SOIC-8-300mil
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,993 in stock

#C484409

Stock & price checked 46 h ago

Quantity	Unit price	Pack price
1+	₹335.21	₹335.21
10+	₹283.23	₹2,832.30
30+	₹250.81	₹7,524.30
100+	₹217.53	₹21,753.00
500+	₹202.30	₹1,01,150.00
1,000+	₹195.78	₹1,95,780.00

Quantity (min 1)

1 × ₹335.21

₹335.21

excl. GST

₹395.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

ISO1042BDWVR

₹335.21 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 1.71V~5.5V;4.5V~5.5V
Type: CAN FD Transceiver
number of channels: 1
Data Rate: 5Mbps
Operating Temperature: -40℃~+125℃
Features: Bus fault protection;ESD protection;TXD dominant timeout;Undervoltage Protection;Thermal shutdown protection
Supply Current: 73.4mA
Quiescent Supply Current: 2.1mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.957 g

Overview

The ISO1042 device is a galvanically-isolated controller area network (CAN) transceiver that meets the specifications of the ISO11898-2 (2016) standard. The ISO1042 device offers ±70-V DC bus fault protection and ±30-V common-mode voltage range. The device supports up to 5-Mbps data rate in CAN FD mode allowing much faster transfer of payload compared to classic CAN. This device uses a silicon dioxide (SiO₂) insulation barrier with a withstand voltage of 5000 V_RMS and a working voltage of 1060 V_RMS. Electromagnetic compatibility has been significantly enhanced to enable system-level ESD, EFT, surge, and emissions compliance. Used in conjunction with isolated power supplies, the device protects against high voltage, and prevents noise currents from the bus from entering the local ground. The ISO1042 device is available for both basic and reinforced isolation. The ISO1042 device supports a wide ambient temperature range of -40°C to +125°C. The device is available in the SOIC-16 (DW) package and a smaller SOIC-8 (DWV) package.

Applications

AC and servo drives
Solar inverters
PLC and DCS communication modules
Elevators and escalators
Industrial power supplies
Battery charging and management

Key features

Meets the ISO 11898-2:2016 physical layer standard Supports classic CAN up to 1 Mbps and FD (Flexible Data Rate) up to 5 Mbps
Low loop delay: 152 ns
Protection features:
DC bus fault protection voltage: ±70 V
HBM ESD tolerance on bus pins: ±16 kV
Driver Dominant Time Out (TXD DTO)
Undervoltage protection on V_CC1 and V_CC2
Common-Mode Voltage Range: ±30 V
Ideal passive, high impedance bus terminals when unpowered
High CMTI: 100 kV/μs
V_CC1 voltage range: 1.71 V to 5.5 V
Supports 1.8-V, 2.5-V, 3.3-V and 5.0-V logic interface to the CAN controller
V_CC2 Voltage Range: 4.5 V to 5.5 V
Robust Electromagnetic Compatibility (EMC):
System-level ESD, EFT, and surge immunity
Low emissions
Ambient Temperature Range: -40°C to +125°C
16-SOIC and 8-SOIC package options
Automotive version available: ISO1042-Q1
Safety-related certifications:
7071 V_PK and 1500 V_PK V_IORM (Reinforced and Basic Options) per DIN VDE V 0884-11:2017-01
5000-V_RMS Isolation for 1 Minute per UL 1577
IEC 60950-1, IEC 60601-1 and EN 61010-1 certifications
CQC, TUV and CSA certifications
