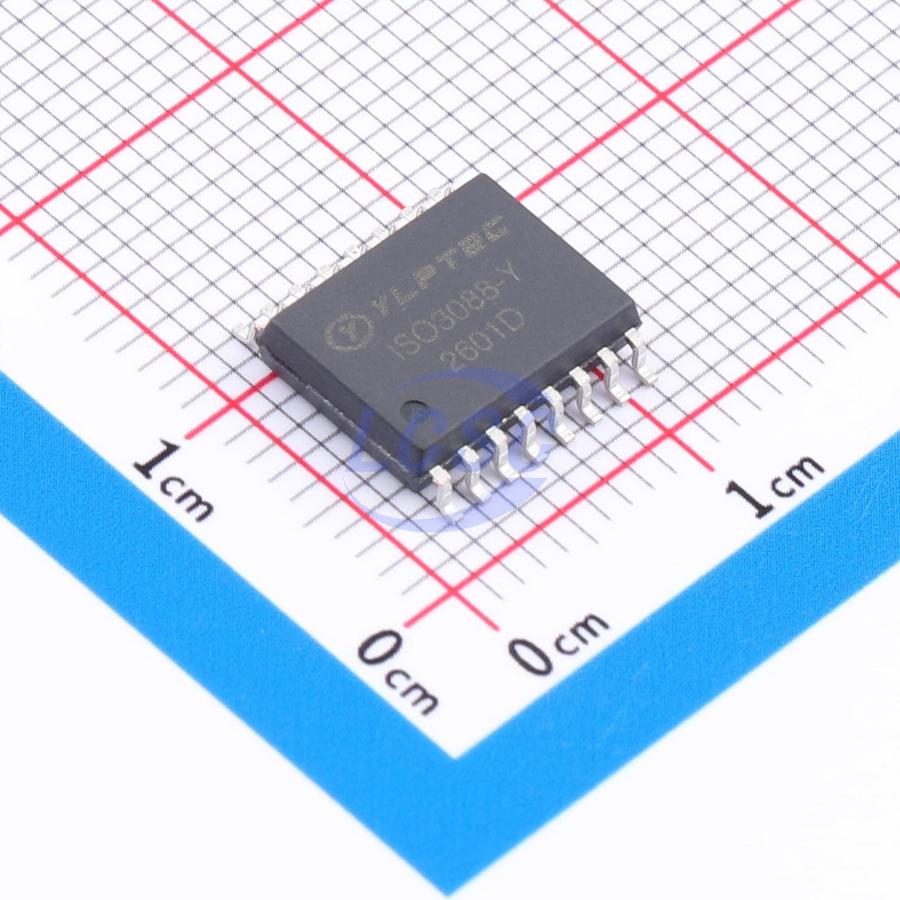

ISO3088-Y

ISO308X is a high-reliability half-duplex transceiver based on CMOSTEK digital isolation technology, compliant with UL1577 safety certification, supporting 5kVrms isolation voltage RS-485, with low EMI, low power consumption, and strong EMI immunity. The bus pins on the bus side of the ISO308X provide ±12kV system-level ESD protection to ground. This device features fail-safe protection, ensuring a logic high output when the receiver input is open or shorted. With a 1/8 unit load receiver input impedance, it allows up to 256 transceivers to be connected on the bus. The ISO308X supports data rates of 500Kbps and 12Mbps, reduces EMI on incorrectly terminated transmission lines, and is available in a wide-body SOIC-16 package.

Applications

• Industrial automation systems
• Isolated RS-485 communication systems
• Smart electricity and water meters
• Security and surveillance systems

Key features

• Safety certifications: VDE (DIN VDE V 0884-11: 2017-01), UL1577 (1-minute 5000Vrms), CSA (Component Acceptance 5A), CQC (GB4943.1-2022)
• Up to 5000Vrms isolation voltage
• Bus-side supply voltage: 3.0V ~ 5.5V
• VDD1 supply voltage: 2.5V ~ 5.5V
• High CMTI: ±200 kV/us
• Enhanced system-level EMC performance: bus pins compliant with IEC61000-4-2 ±12 kV ESD
• Operating temperature: -40°C ~ 125°C
• Fail-safe receiver
• Isolation barrier lifetime: over 40 years
• Supports 256 transceivers
• RoHS-compliant SOIC 16 (wide-body) package
