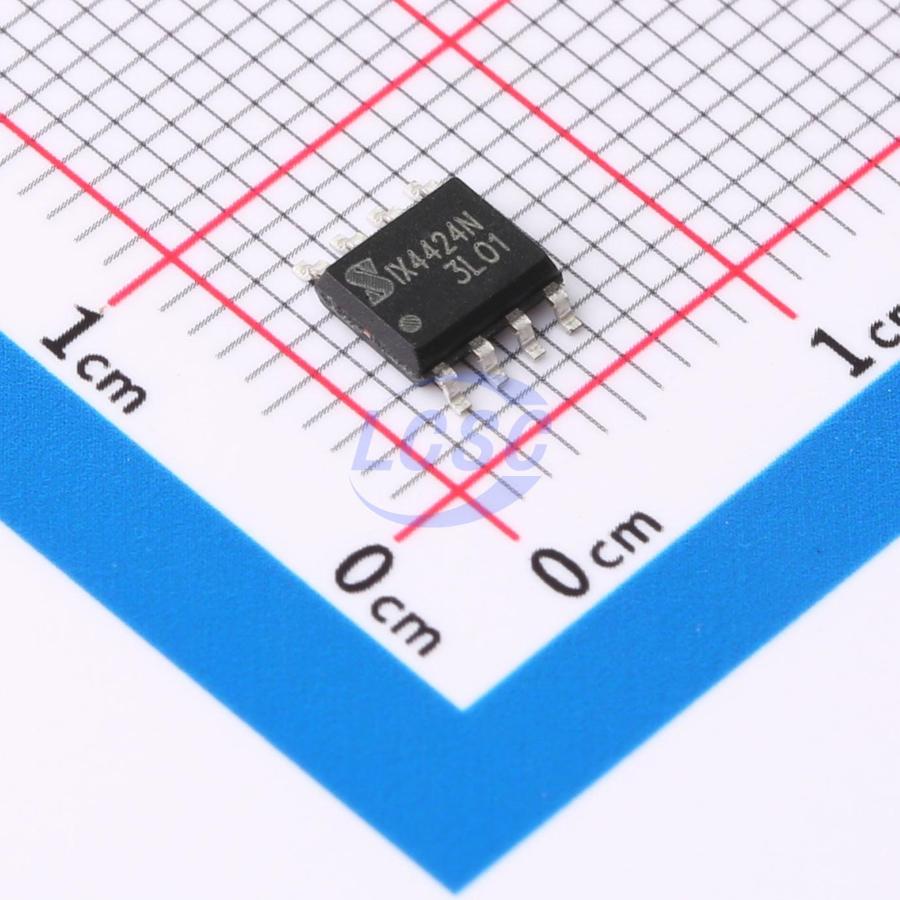

IX4424NTR-JSM

IX4424N is a power switch driver featuring matched rise and fall times when charging and discharging the gates of power switches. IX4424N exhibits high latch-up immunity under any conditions within its rated power and voltage range. IX4424N will not be damaged when noise spikes of up to 5V (either polarity) appear on the ground pin. IX4424N can accept reverse currents of up to 500mA forced back into its output without damage or logic upset. All terminals are fully protected against ESD up to 2.0kV. IX4424N is available in an SOP-8 package and operates over a temperature range of -40°C to 125°C.

Applications

• Switching power supplies
• Switching converters
• Line drivers
• Pulse transformer drive
• Driving MOSFETs and IGBTs
• Motor control
• Pulse generators
• Power switches
• DC-DC converters
• Class D switching amplifiers
• High-frequency power supplies

Key features

• Latch protection: withstands 0.5A reverse current
• Input logic protection down to -10V
• Low output impedance
• Dual-channel driver in a single chip
• Independent enable port control for each channel
• Peak output current: 4A
• Operating range: 4.5V~25V
• High capacitive load drive capability: switching time < 25ns at 1nF load
• Matched rise/fall times
• Propagation delay: 40ns
• Wide temperature range: -40℃～125℃
• Turn-on/turn-off delay: Ton/Toff = 70ns/70ns
• RoHS compliant
• SOP-8
