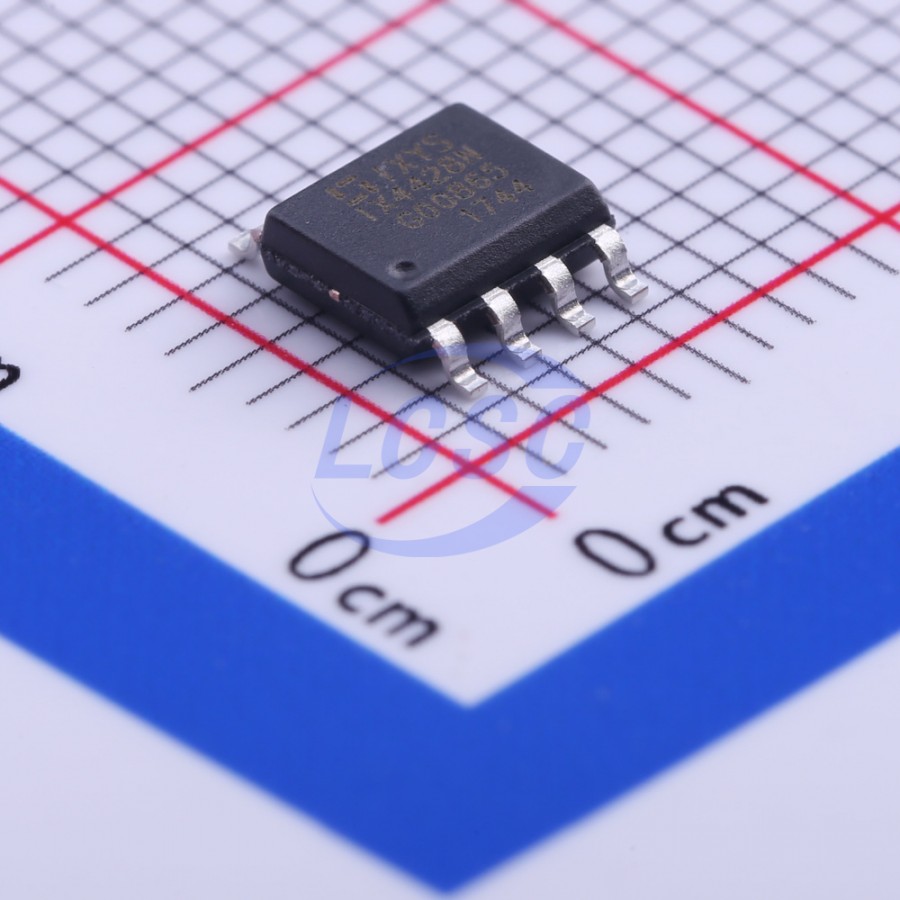

IX4428NTR
4.5V~30V 1.5A 1.5A SOIC-8 Gate Drivers RoHS
1.5-Ampere Dual Low-Side Ultrafast MOSFET Drivers
- Manufacturer
- Littelfuse/IXYS
- Manufacturer part #
- IX4428NTR
- Store part #
- C171846
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,481 in stock
#C171846
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.40 | ₹138.40 |
| 10+ | ₹114.93 | ₹1,149.30 |
| 30+ | ₹102.11 | ₹3,063.30 |
| 100+ | ₹87.34 | ₹8,734.00 |
| 500+ | ₹77.34 | ₹38,670.00 |
| 1,000+ | ₹74.52 | ₹74,520.00 |
1 × ₹138.40
₹138.40
excl. GST
₹163.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IX4428NTR
₹138.40 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 35ns
- High Level Delay Time
- 35ns
- Quiescent Current
- 600uA
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~30V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 10ns
- Fall Time
- 8ns
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.255 g
Overview
The IX4426, IX4427, and IX4428 are dual high-speed, low-side gate drivers. Each of the two outputs can source and sink 1.5A of peak current with rise and fall times of less than 10ns. The inputs of each driver are TTL and CMOS compatible, and are virtually immune to latch-up. Low propagation delay times and fast, matched rise and fall times make the IX4426, IX4427, and IX4428 ideal for high-frequency and high-power applications. The IX4426 is configured as a dual inverting driver; the IX4427 is configured as a dual non-inverting driver; and the IX4428 is configured with one inverting driver and one non-inverting driver. All three devices are available in a standard 8-pin SOIC package (N suffix) and an 8-pin DFN package (M suffix).
Applications
- MOSFET Driver
- Switching Power Supplies
- Motor Controls
- DC to DC Converters
- Pulse Transformer Driver
Key features
- 1.5A Peak Output Current
- Wide Operating Voltage Range: 4.5V to 35V
- -40°C to +125°C Operating Temperature Range
- Latch-up Protected to 1.5A
- TTL and CMOS Compatible Inputs
- Fast Rise and Fall Times
- Low Power Consumption
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IX4426N#C1549436Littelfuse/IXYS · SOIC-8 | Littelfuse/IXYS | SOIC-8 | 1,066 | ₹157.36 · 1,066 in stock | View |
 | IX4426NTR#C171844Littelfuse/IXYS · SOIC-8 | Littelfuse/IXYS | SOIC-8 | 132 | ₹221.26 · 132 in stock | View |
 | IX4427NTR#C171845Littelfuse/IXYS · SOIC-8 | Littelfuse/IXYS | SOIC-8 | 3,452 | ₹150.35 · 3,452 in stock | View |
| IX4427NTR-TUDI#C55064287Tudi · SOP-8 | Tudi | SOP-8 | 4,000 | ₹57.46 · 4,000 in stock | View | |
 | IX4428NTR-TUDI#C55064288Tudi · SOP-8 | Tudi | SOP-8 | 1,000 | ₹57.46 · 1,000 in stock | View |
