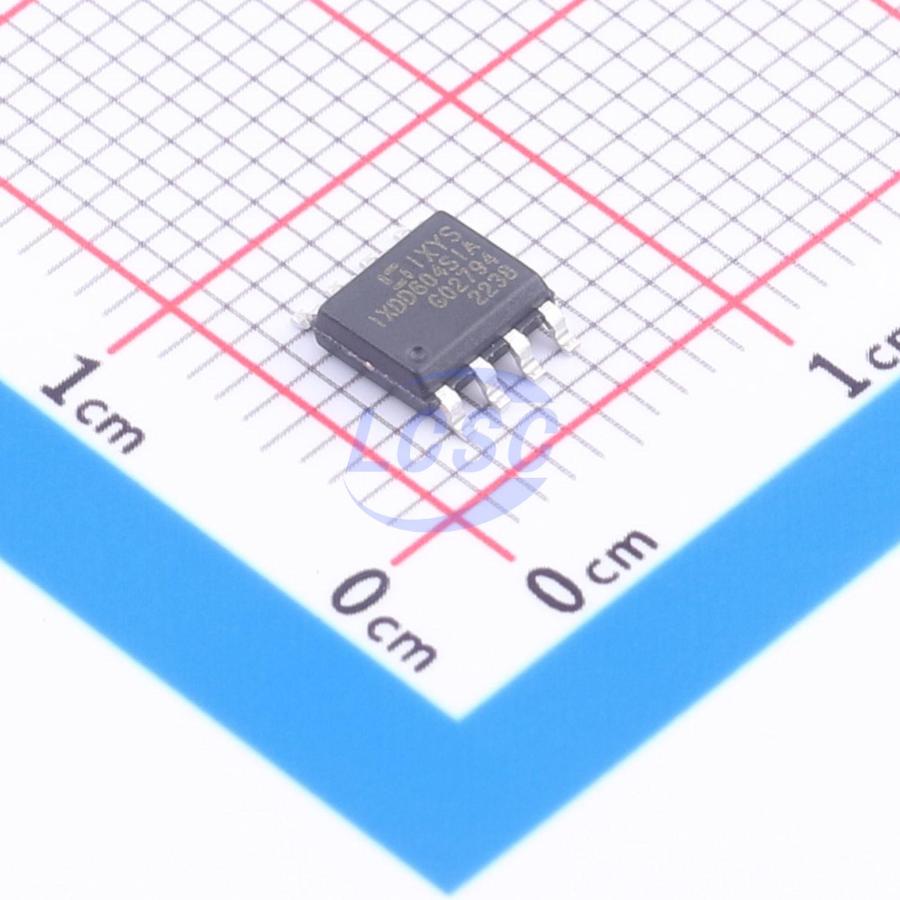

IXDD604SIATR
4.5V~35V 4A 4A SOIC-8 Gate Drivers RoHS
4-Ampere Dual Low-Side Ultrafast MOSFET Drivers
- Manufacturer
- Littelfuse/IXYS
- Manufacturer part #
- IXDD604SIATR
- Store part #
- C2676942
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,899 in stock
#C2676942
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹188.56 | ₹188.56 |
| 10+ | ₹156.48 | ₹1,564.80 |
| 30+ | ₹138.81 | ₹4,164.30 |
| 100+ | ₹118.99 | ₹11,899.00 |
| 500+ | ₹110.15 | ₹55,075.00 |
| 1,000+ | ₹106.18 | ₹1,06,180.00 |
1 × ₹188.56
₹188.56
excl. GST
₹222.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IXDD604SIATR
₹188.56 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 29ns
- High Level Delay Time
- 35ns
- Quiescent Current
- 10uA
- Input Logic Level - High
- 3V
- Voltage - Supply
- 4.5V~35V
- Driven Configuration
- Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 9ns
- Fall Time
- 8ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.387 g
Overview
The dual high-speed gate drivers are especially well suited for driving the latest MOSFETs and IGBTs. Each of the two outputs can source and sink 4A of current while producing voltage rise and fall times of less than 10ns. The input of each driver is virtually immune to latch up, and proprietary circuitry eliminates cross conduction and current “shoot-through.” Low propagation delay and fast, matched rise and fall times make the family ideal for high-frequency and high-power applications.
Applications
- Efficient Power MOSFET and IGBT Switching
- Switch Mode Power Supplies
- Motor Controls
- DC to DC Converters
- Class-D Switching Amplifiers
- Pulse Transformer Driver
Key features
- 4A Source/Sink Drive Current
- Wide Operating Voltage Range: 4.5V to 35V
- -40°C to +125°C Extended Operating Temperature Range
- Logic Input Withstands Negative Swing of up to 5V
- Outputs May be Connected in Parallel for Higher Drive Current
- Matched Rise and Fall Times
- Low Propagation Delay Time
- Low, 10μA Supply Current
- Low Output Impedance
