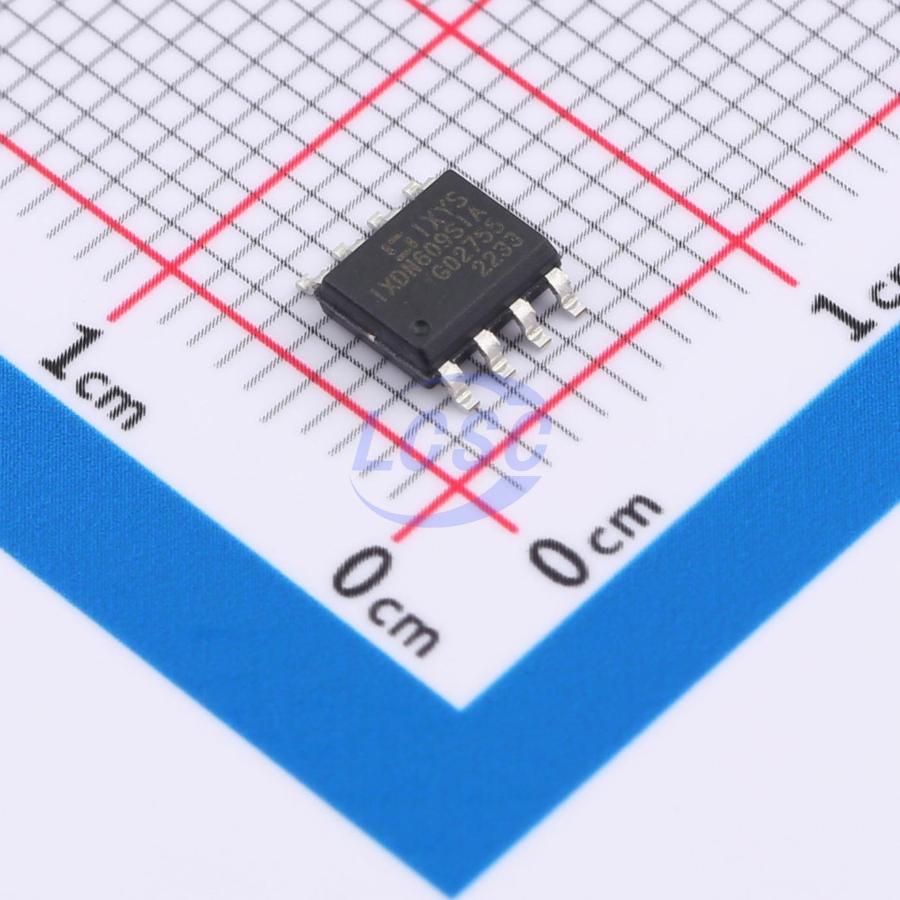

IXDN609SIA
4.5V~35V 2A 2A SOIC-8 Gate Drivers RoHS
9-Ampere Low-Side Ultrafast MOSFET Drivers
- Manufacturer
- Littelfuse/IXYS
- Manufacturer part #
- IXDN609SIA
- Store part #
- C3036216
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,227 in stock
#C3036216
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹251.19 | ₹251.19 |
| 10+ | ₹213.06 | ₹2,130.60 |
| 30+ | ₹189.24 | ₹5,677.20 |
| 100+ | ₹164.90 | ₹16,490.00 |
| 500+ | ₹153.79 | ₹76,895.00 |
| 1,000+ | ₹149.14 | ₹1,49,140.00 |
1 × ₹251.19
₹251.19
excl. GST
₹296.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
IXDN609SIA
₹251.19 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 40ns
- High Level Delay Time
- 42ns
- Quiescent Current
- 10uA
- Input Logic Level - High
- 3V
- Voltage - Supply
- 4.5V~35V
- Driven Configuration
- Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 2A
- Rise Time
- 22ns
- Fall Time
- 15ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.3 g
Overview
The IXDD609/IXDI609/IXDN609 high-speed gate drivers are especially well suited for driving the latest IXYS MOSFETs and IGBTs. The IXD_609 high-current output can source and sink 9A of peak current while producing voltage rise and fall times of less than 25ns. The input is CMOS compatible, and is virtually immune to latch up. Proprietary circuitry eliminates cross-conduction and current “shoot-through.” Low propagation delay and fast, matched rise and fall times make the IXD_609 family ideal for high-frequency and high-power applications.
Applications
- Efficient Power MOSFET and IGBT Switching
- Switch Mode Power Supplies
- Motor Controls
- DC to DC Converters
- Class-D Switching Amplifiers
- Pulse Transformer Driver
Key features
- 9A Peak Source/Sink Drive Current
- Wide Operating Voltage Range: 4.5V to 35V
- -40°C to +125°C Extended Operating Temperature Range
- Logic Input Withstands Negative Swing of up to 5V
- Matched Rise and Fall Times
- Low Propagation Delay Time
- Low, 10μA Supply Current
- Low Output Impedance
