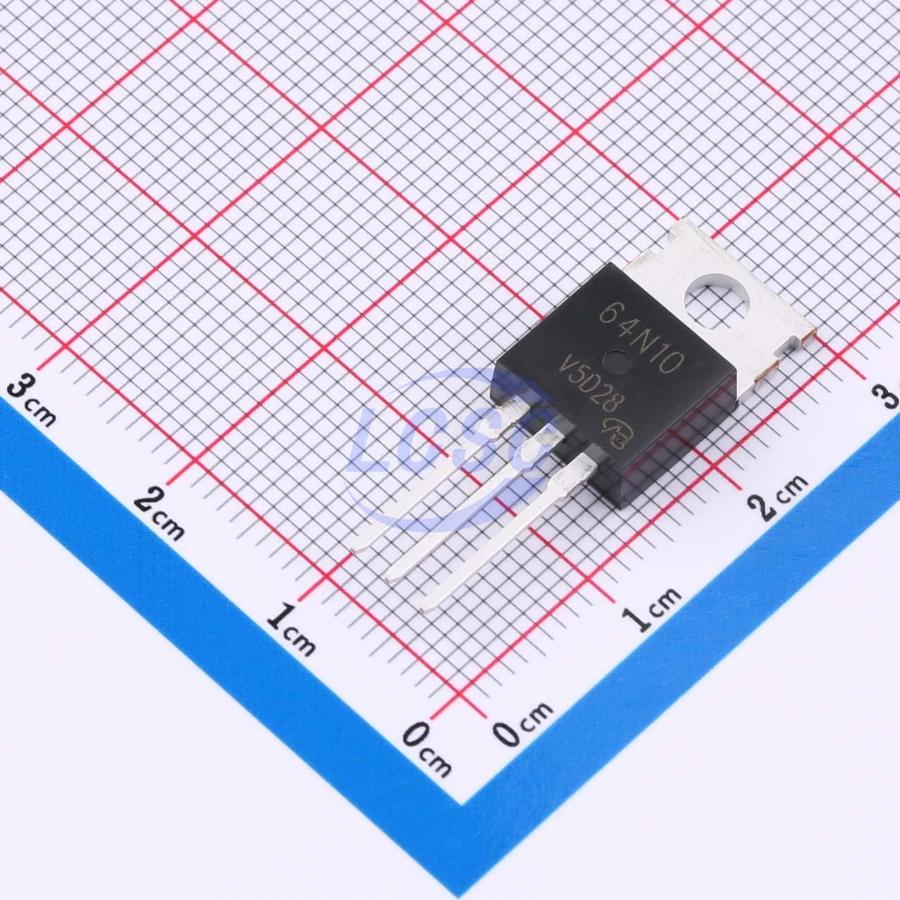

IXTP64N10L2-VB
N-Channel 100V 70A 3.35W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 100V 70A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IXTP64N10L2-VB
- Store part #
- C47993785
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C47993785
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹165.23 | ₹165.23 |
| 10+ | ₹140.20 | ₹1,402.00 |
| 50+ | ₹127.79 | ₹6,389.50 |
| 100+ | ₹83.39 | ₹8,339.00 |
| 500+ | ₹75.98 | ₹37,990.00 |
| 1,000+ | ₹72.28 | ₹72,280.00 |
1 × ₹165.23
₹165.23
excl. GST
₹194.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IXTP64N10L2-VB
₹165.23 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 210pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 3.35W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 17mΩ@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.15 g
Overview
Applications
- Isolated DC/DC Converter
Key features
- Trench power MOSFET
- Junction temperature 175°C
- Low thermal resistance package
- 100% gate resistance (Rg) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P2610BT-VB#C2680759VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 56 | ₹122.17 · 56 in stock | View |
 | NTP6412ANG-VB#C29779107VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹123.52 · 10 in stock | View |
 | AOT414-VB#C29779254VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹123.52 · 10 in stock | View |
 | IPP180N10N3G-VB#C29779672VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹123.52 · 10 in stock | View |
 | AOT2916L-VB#C45350881VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹134.97 · 10 in stock | View |
