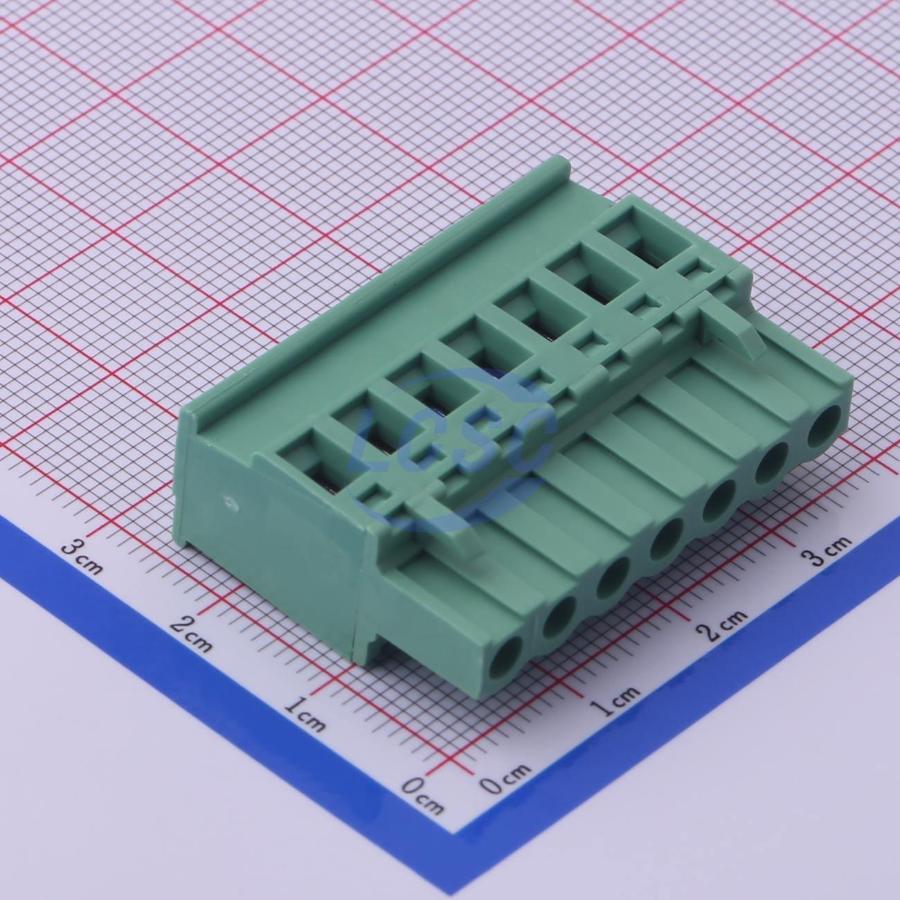

JL2EDGKA-50807G01
7 Position Plug 5.08mm Pitch
P=5.08mmRoHSActive
TERM BLOCK PLUG 7POS 5.08mm
- Manufacturer
- JILN
- Manufacturer part #
- JL2EDGKA-50807G01
- Store part #
- C409132
- Package / case
- P=5.08mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C409132
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.00 | ₹92.00 |
| 10+ | ₹74.13 | ₹741.30 |
| 30+ | ₹65.18 | ₹1,955.40 |
| 100+ | ₹56.25 | ₹5,625.00 |
| 500+ | ₹50.80 | ₹25,400.00 |
| 1,000+ | ₹48.18 | ₹48,180.00 |
1 × ₹92.00
₹92.00
excl. GST
₹108.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 140 per bag
JL2EDGKA-50807G01
₹92.00 for 1 + GST
Specifications
- Current Rating
- 15A
- Wire Gauge - AWG
- 12~28
- Number of Positions or Pins
- 1x7P
- Number of Pins
- 7P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 5.08mm
- Color
- Green
- Connector Type
- Male Plug
- Number of PINs Per Row
- 7
- Termination Style
- Without fixing device
- Mounting Type
- Free-hanging
- Number of Rows
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 140 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 12.6 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | JL2EDGKC-50807G01#C2963014JILN · P=5.08mm | JILN | P=5.08mm | 97 | ₹162.80 · 97 in stock | View |
 | JL2EDGK-50807G01#C409127JILN · P=5.08mm | JILN | P=5.08mm | 16,947 | ₹64.68 · 16,947 in stock | View |
 | JL2EDGKN-50807G01#C5280900JILN · P=5.08mm | JILN | P=5.08mm | 4 | ₹139.13 · 4 in stock | View |
