MSKSEMIDatasheet (PDF)

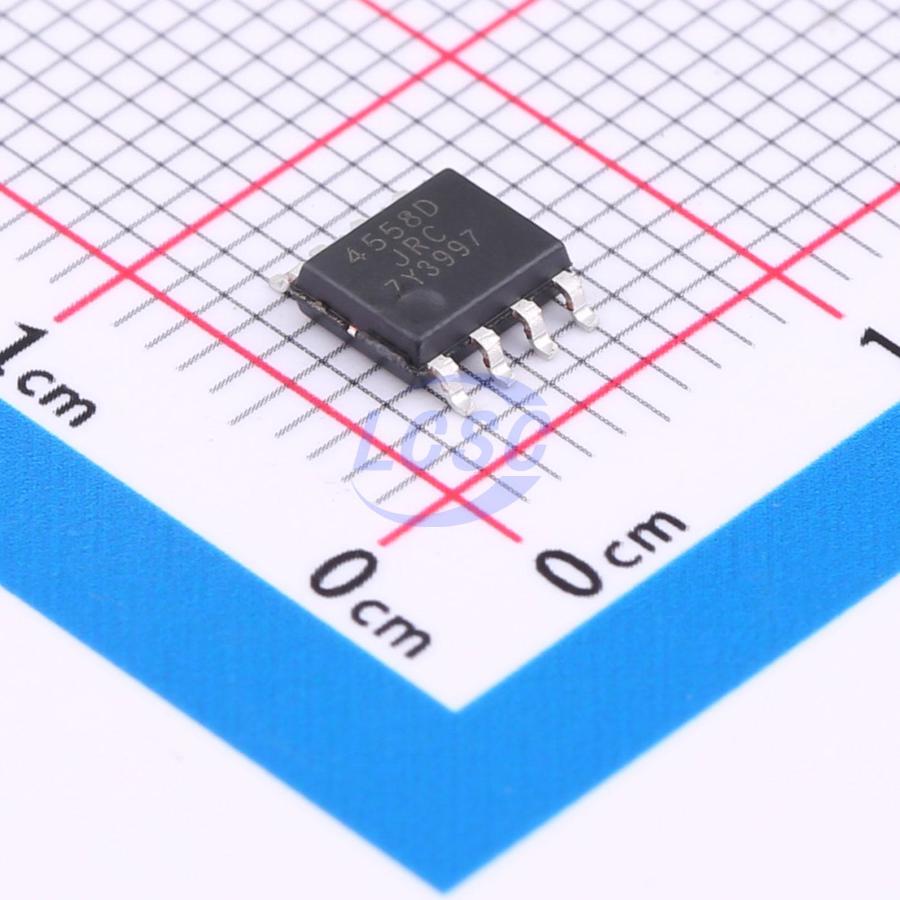

JRC4558D(MS)
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8RoHSActive
Dual low-power differential operational amplifier
- Manufacturer
- MSKSEMI
- Manufacturer part #
- JRC4558D(MS)
- Store part #
- C20538863
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C20538863
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.96 | ₹69.60 |
| 100+ | ₹5.49 | ₹549.00 |
| 300+ | ₹4.75 | ₹1,425.00 |
| 2,500+ | ₹4.19 | ₹10,475.00 |
| 5,000+ | ₹3.75 | ₹18,750.00 |
| 10,000+ | ₹3.53 | ₹35,300.00 |
10 × ₹6.96
₹69.60
excl. GST
₹82.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
JRC4558D(MS)
₹69.60 for 10 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 50nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 1.2MHz
- Features
- Built-in compensation
- Dual Supply
- -15V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.171 g
Overview
JRC4558D(MS) is a dual low-power differential operational amplifier that operates from either single or dual power supplies. It features high open-loop gain, internal compensation, wide common-mode range, excellent temperature stability, and output short-circuit protection. Widely used in audio amplifier circuits and conventional op-amp circuits.
Applications
- Sensor signal amplifier
- DC gain
- Audio amplifier
Key features
- Internal frequency compensation
- Short-circuit protection
- Low power consumption: typical 500uA @ VCC = 5V
- Package: DIP8, SOP8
- Single supply voltage range: 3V ~ 30V
- Dual supply voltage range: ±15V
- Unity gain bandwidth: up to 1.2MHz
