JSM2000G

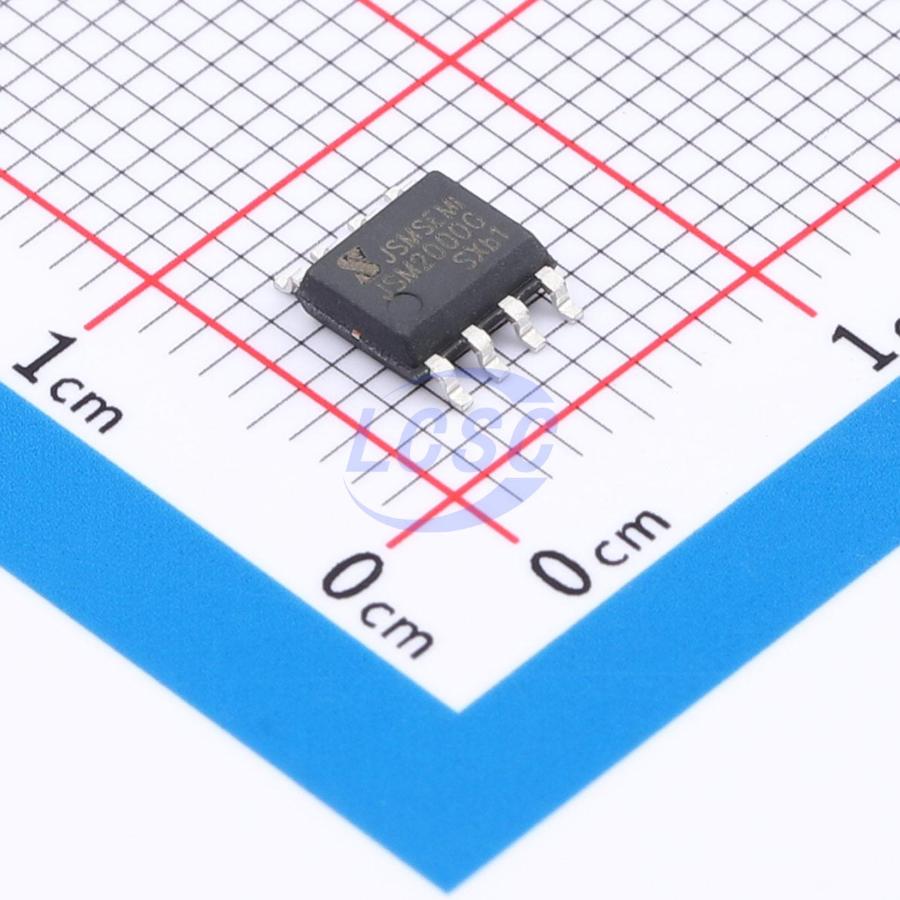

High Side Gate Driver IC MOSFET SOP-8
250V fast high-side NMOS static switch driver
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM2000G
- Store part #
- C7498994
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,433 in stock
#C7498994
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.60 | ₹136.60 |
| 10+ | ₹108.63 | ₹1,086.30 |
| 30+ | ₹94.75 | ₹2,842.50 |
| 100+ | ₹80.87 | ₹8,087.00 |
| 500+ | ₹78.49 | ₹39,245.00 |
| 1,000+ | ₹74.38 | ₹74,380.00 |
1 × ₹136.60
₹136.60
excl. GST
₹161.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
JSM2000G
₹136.60 for 1 + GST
Specifications
- Quiescent Current
- 120uA
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side
- Current - Output Low(IOL)
- 260mA
- Rise Time
- 70ns
- Fall Time
- 30ns
- Features
- Charge pump boost
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.177 g
Overview
JSM2000G is a fast, high-side N-channel MOSFET gate driver capable of operating at input voltages up to 250V. The device employs a charge architecture responsible for fully enhancing an external N-channel MOSFET switch, enabling it to remain in the on-state indefinitely. Its robust driver can easily drive large gate capacitances to achieve extremely short transition times, making it ideal for high-frequency switching applications or static switching applications requiring fast turn-on and/or turn-off times. The device is available in an SOP-8 package and operates over a temperature range of -40°C to 125°C.
Applications
- High-side switch controller
- Static switch driver
- Load and power switch driver
- Electronic valve driver
- High-frequency high-side gate driver
- Photovoltaic shutdown device
Key features
- Wide input voltage range: up to 250V
- Propagation delay of 150ns for fast turn-on and turn-off channels
- Built-in high-side bootstrap circuit for 100% duty cycle operation
- Adjustable turn-on duty cycle
- Gate driver supply voltage range: 4.5V to 20V
- Input overvoltage lockout
- Driver supply undervoltage lockout
- UVLO positive-going threshold: 4.2V
- UVLO negative-going threshold: 4V
- Compatible with 3.3V, 5V, and 15V input logic
- Negative voltage tolerance up to -9V
- Wide operating temperature range: -40℃ ~ 125℃
- Output stage source/sink current capability: 290mA/600mA
- RoHS compliant, SOP-8 package
