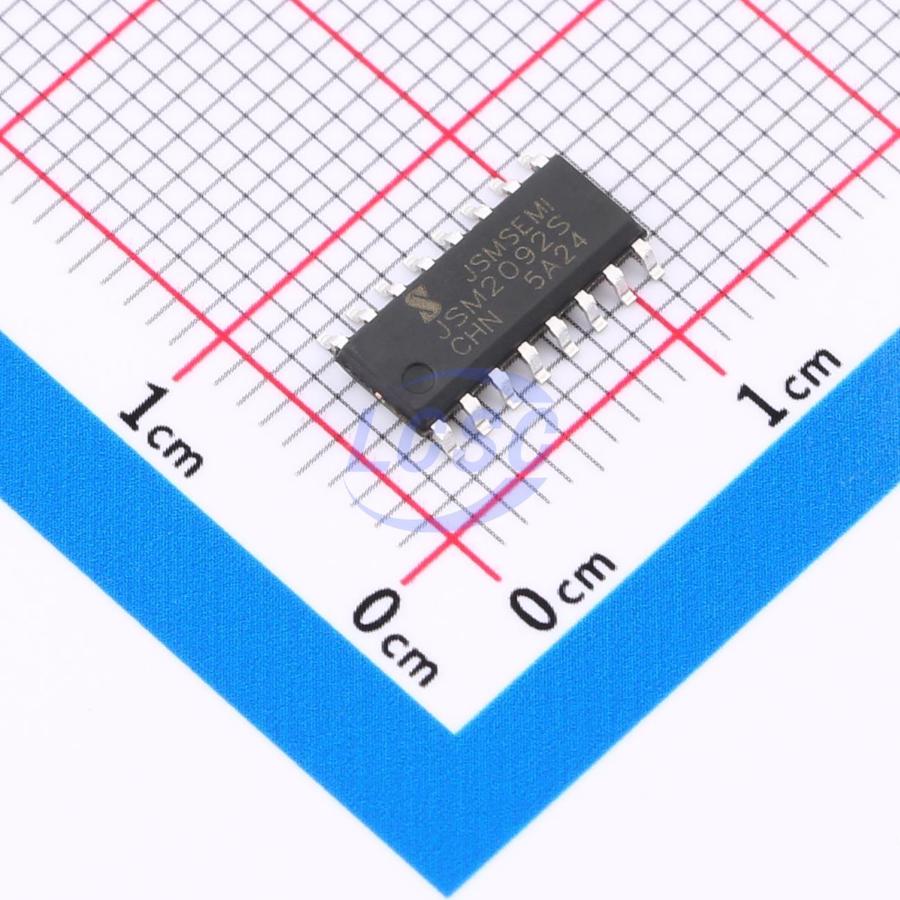

JSM2092STR

JSM2092S is a high-voltage, high-performance Class-D audio amplifier driver integrating a PWM modulator and protection features, designed for high-output-power Class-D audio amplifier systems. The device integrates an analog power amplifier, PWM modulation circuit, high- and low-side overcurrent protection, anti-shoot-through dead-time logic, and three voltage domains. It adopts a flexible open-loop topology for PWM modulation, and integrates pop-click suppression during startup and shutdown to eliminate unwanted audible noise at PWM signal transitions. Combined with a power bridge circuit and a small number of passive components, a complete Class-D audio power amplifier can be realized. Operating temperature range: -40°C ~ 125°C.

Applications

• Motor Control
• Air Conditioner/Washing Machine
• General-Purpose Inverter
• Micro Inverter Driver

Key features

• Compact 16-pin package integrating analog input Class D audio amplifier driver
• Error amplifier open-loop gain greater than 60dB
• Programmable bidirectional overcurrent protection with auto-reset
• External 5V reference output with programmable low-side overcurrent protection threshold
• Programmable protection signal duration
• Programmable preset dead time for improved THD performance
• Click-and-pop noise suppression during start-up and shutdown
• Integrated multi-voltage domain UVLO and overvoltage clamp protection
• High noise immunity: greater than 50 V/ns
• ±150V rating supporting output power up to 500W
• Operating frequency up to 800KHz
• Wide operating temperature range: -40°C ~ 125°C
• High/low-side propagation delay: 350/335ns
• Overcurrent protection delay (maximum): 500ns
• Shutdown propagation delay (maximum): 250ns
• Output high-level short-circuit current (source/sink) up to 1.2A
• RoHS compliant
