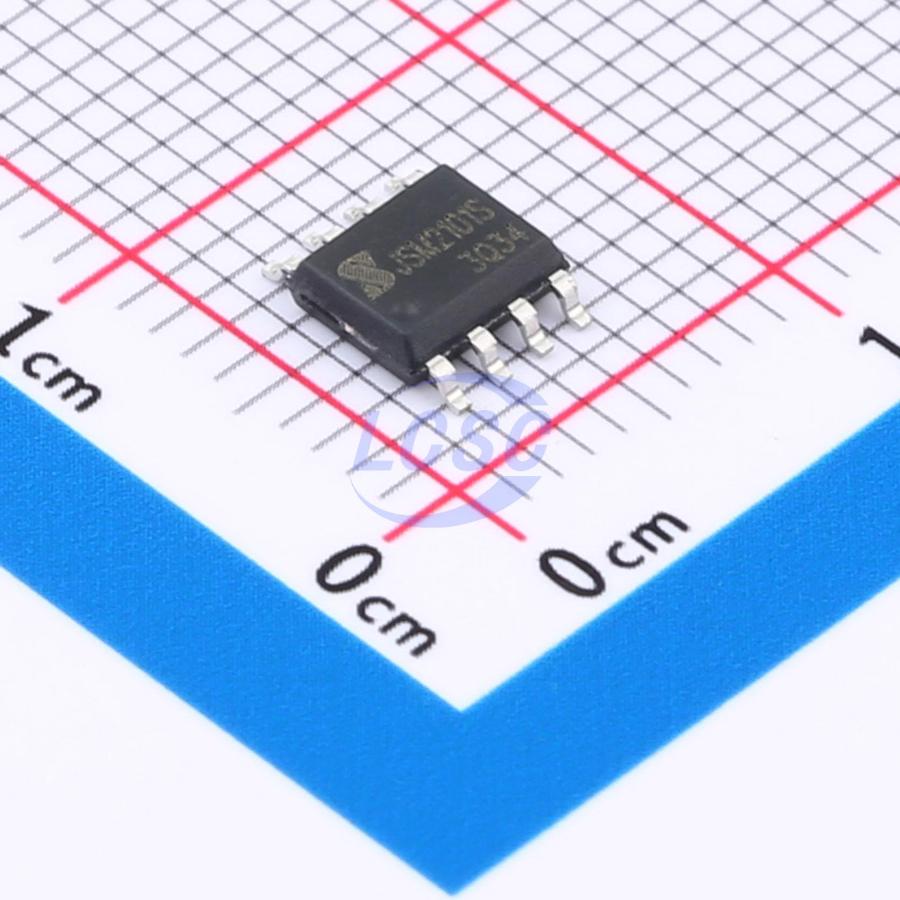

JSM2101STR
10V~20V 600mA 300mA SOP-8 Gate Drivers RoHS
700V single-phase high-side and low-side in-phase gate driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM2101STR
- Store part #
- C19077368
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,280 in stock
#C19077368
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.33 | ₹171.65 |
| 50+ | ₹29.79 | ₹1,489.50 |
| 150+ | ₹27.85 | ₹4,177.50 |
| 500+ | ₹26.57 | ₹13,285.00 |
| 2,500+ | ₹25.48 | ₹63,700.00 |
| 4,000+ | ₹24.83 | ₹99,320.00 |
5 × ₹34.33
₹171.65
excl. GST
₹202.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
JSM2101STR
₹171.65 for 5 + GST
Specifications
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
The JSM2101S is a high voltage, high speed power MOSFET drivers with dependent high- and low- side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross- conduction. The floating channel can be used to drive an N- channel power MOSFET in the high- side configuration which operates up to 700V.
Applications
- Motor Control
- Air Conditioners/Washing Machines
- General Purpose Inverters
- Micro/Mini Inverter Drives
- Home Appliance
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +700V
- 3.3V, 5V and 15V input logic compatible
- dV/dt noise Immunity ±50V / sec
- Allowable negative Vs capability: - 9V
- Gate drive supply range from 10V to 20V
- Undervoltage lockout for both channels
- UVLO forward 8.9V
- UVLO reverse 8.2V
- Propagation delay
- Ton/Toff = 130ns/130ns
- Matching delay time 50ns
- Wide operating temperature range - 40°C ~ 125°C
- Typically output Source/Sink current capability: 300mA/600mA
- Integrated Bootstrap diode
- RoSH compatible
