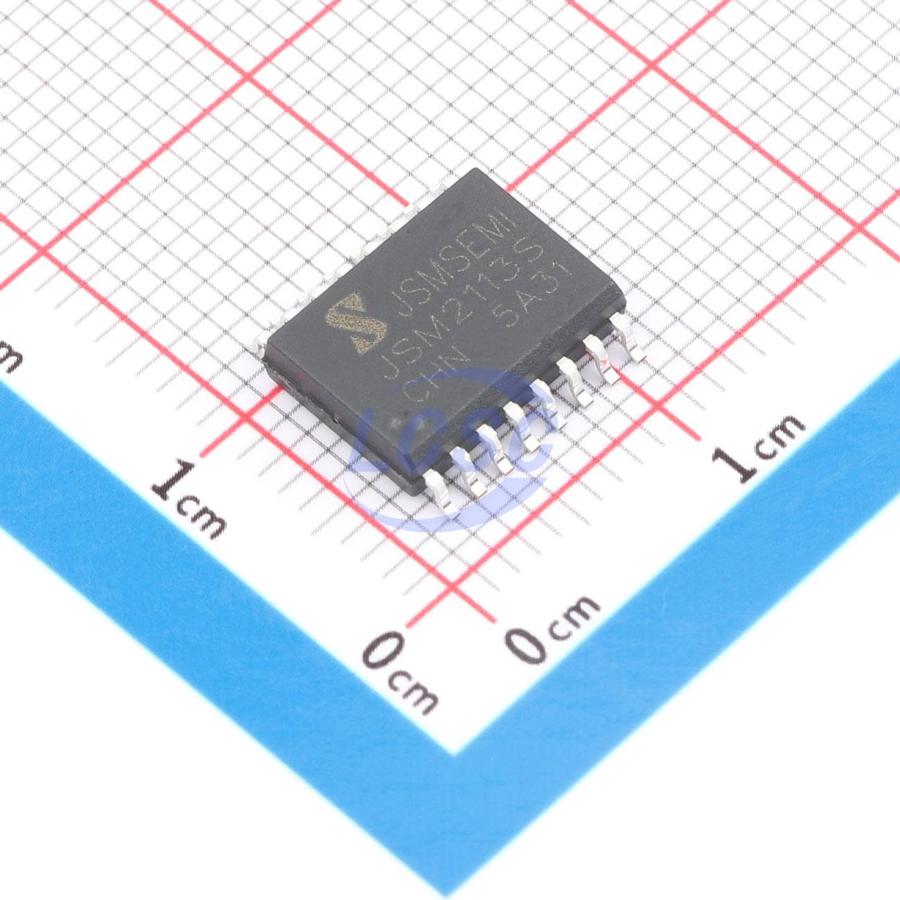

JSM2113STR

JSM2113S is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC, fabricated using a process compatible with both high and low voltages, enabling monolithic integration of high- and low-side gate drive circuits. It features independent high- and low-side signal channels with logic inputs compatible with CMOS or LSTTL logic output levels as low as 3.3V. The outputs are capable of high-current pulse drive. The floating channel can be used to drive a high-side N-channel power MOSFET, with the floating supply offset voltage rating up to 700V. An integrated high- and low-side shutdown logic function supports on/off control under fault conditions. Offered in a wide-body SOP-16(W) package, it operates over a temperature range of -40°C to 125°C.

Applications

• General-purpose inverters
• Half-bridge and full-bridge converters in AC and DC power supplies
• High-density switching power supplies for server, telecom, IT, and industrial infrastructure
• Solar inverters, motor drives, and UPS

Key features

• Floating channel designed for bootstrap operation
• Maximum operating voltage up to 700V
• Compatible with 3.3V, 5V, and 15V input logic
• dVs/dt immunity up to ±50V/nsec
• Vs negative bias capability down to -9V
• Gate drive supply range 10V - 20V
• Wide temperature range -40~125°C
• Integrated undervoltage lockout
• Cycle-by-cycle edge-triggered shutdown logic
• Input/output in-phase
• Logic and power ground ±5V offset
• Propagation delay characteristics:
• Ton/Toff = 130ns/130ns
• High/low side delay matched
• Output drive current capability:
• Source/Sink = 4.0A/4.0A
• High and low side UVLO:
• UVLO positive-going threshold 8.9V
• UVLO negative-going threshold 8.2V
• RoHS compliant
• SOP-16 (W)
