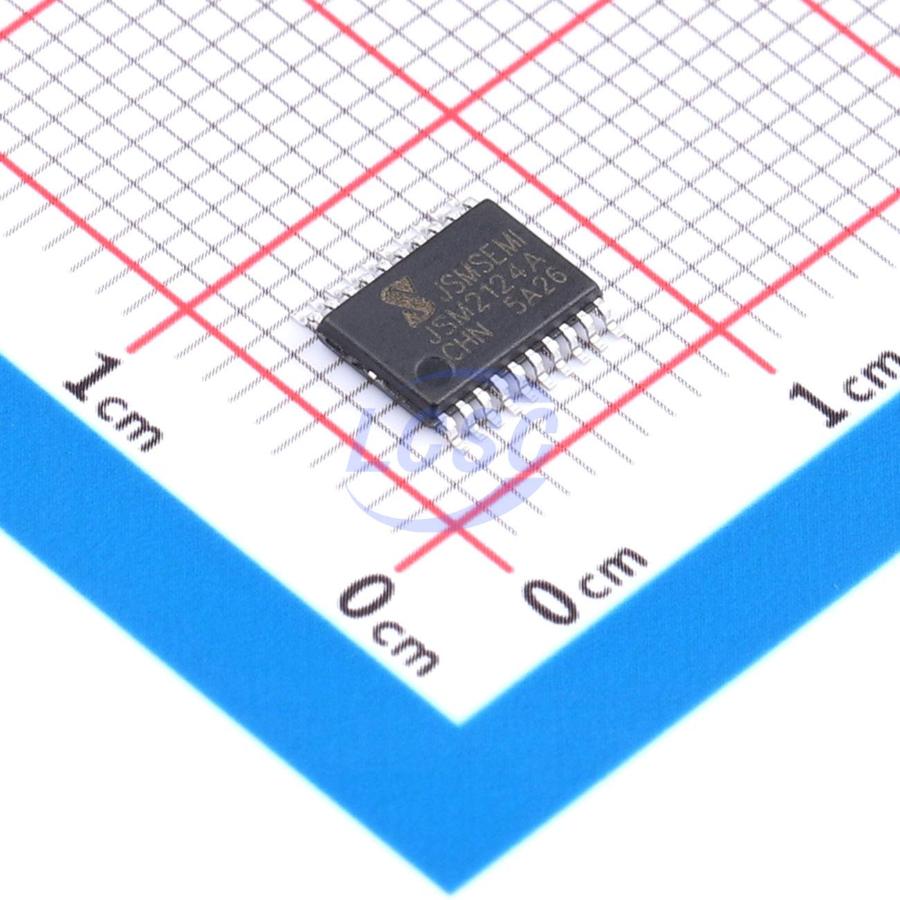

JSM2124AT
5V~20V 1.2A 1A TSSOP-20 Gate Drivers RoHS
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM2124AT
- Store part #
- C50202099
- Package / case
- TSSOP-20
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,180 in stock
#C50202099
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.86 | ₹219.30 |
| 50+ | ₹33.72 | ₹1,686.00 |
| 150+ | ₹29.38 | ₹4,407.00 |
| 500+ | ₹23.97 | ₹11,985.00 |
| 2,500+ | ₹21.55 | ₹53,875.00 |
| 4,000+ | ₹20.11 | ₹80,440.00 |
5 × ₹43.86
₹219.30
excl. GST
₹258.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
JSM2124AT
₹219.30 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 150ns
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase
- Current - Output Low(IOL)
- 1.2A
- Rise Time
- 40ns
- Fall Time
- 15ns
- Features
- Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 1A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
JSM2124 is a three-phase high-voltage power MOSFET and IGBT gate driver for driving the gates of high-side and low-side power transistors. Its floating channel drive design supports bus voltages up to 250V. The device output delivers strong drive capability with source and sink currents of 1.0A/1.4A. JSM2124 operates over a wide supply voltage range, with independently optimizable high-side and low-side gate drive voltages for maximum drive efficiency. Internal shoot-through protection and dead-time circuitry prevent simultaneous conduction of both transistors, further reducing switching losses. The undervoltage lockout (UVLO) feature ensures both driver outputs are held low when the supply voltage falls below the threshold. JSM2124 integrates a bootstrap diode to minimize external peripheral components. JSM2124AT is available in a TSSOP20 package and JSM2124Q in a QFN24 package, both operating over a temperature range of -40℃ to 125℃.
Applications
- Motor Control
- General-purpose Inverters
- Micro/Mini Inverter Drives
- Power Tools
- Electric Vehicles
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to +250V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt noise immunity ±50V/sec
- Allowable negative VS capability: -9V
- Gate drive supply range: 5V to 25V
- High-side and low-side undervoltage lockout
- UVLO positive threshold: 4.5V
- UVLO negative threshold: 4.3V
- Cross-conduction prevention logic
- Dead time: 200ns
- Matched propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 150ns/150ns
- Delay matching time < 50ns
- Matched propagation delay for dual channels
- Wide operating temperature range: -40℃ ~ 125℃
- Typical output source/sink current capability: 1.0A/1.2A
- Integrated bootstrap diode
- TSSOP20 and QFN24 packages
- RoHS compliant
