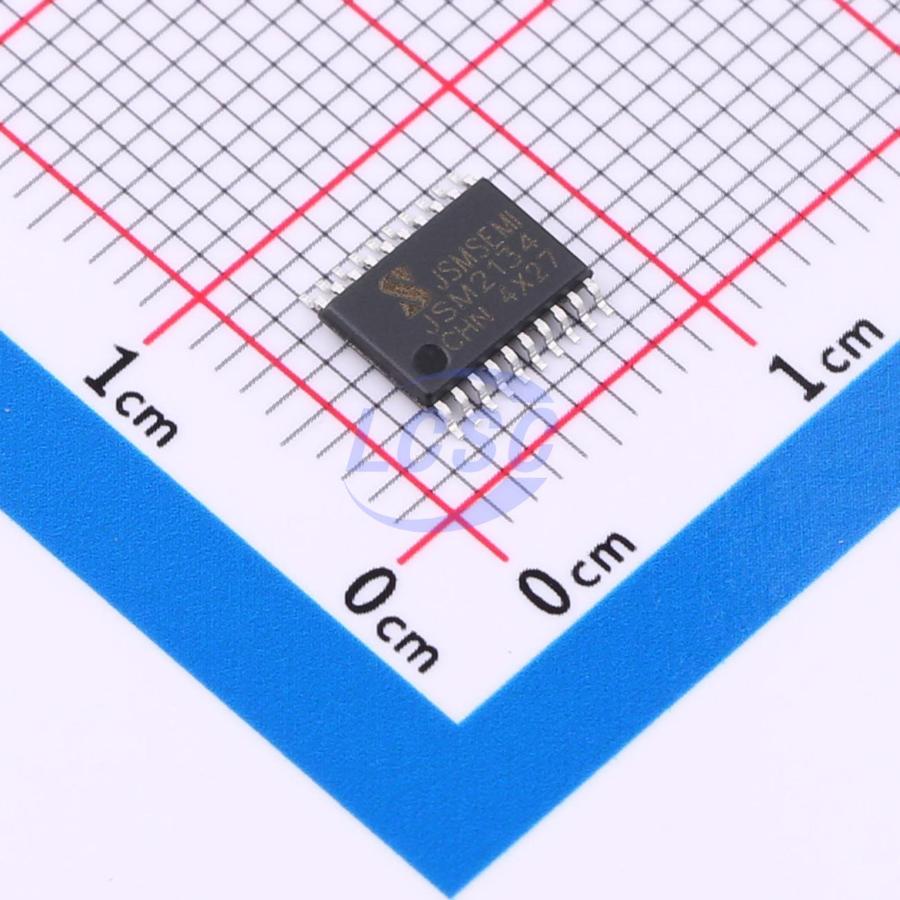

JSM2134

JSM2134 is a three-phase high-voltage, high-speed power MOSFET high- and low-side gate driver IC. Fabricated using a process compatible with both high and low voltages, the high- and low-side gate drive circuits are integrated on a single chip, with independent high-side and low-side referenced output channels. Logic inputs are compatible with CMOS or LSTTL logic output levels as low as 3.3V, and the outputs feature high-current pulse capability with shoot-through-prevention dead-time logic. The floating channels can be used to drive high-side N-channel power MOSFETs, with a maximum floating supply voltage of 250V; these floating channels require additional bootstrap circuitry. In addition, JSM2134 incorporates undervoltage lockout (UVLO) protection on both the high-side and low-side.

Applications

• Motor Control
• Air Conditioner/Washing Machine
• General-Purpose Inverter
• Micro Inverter

Key features

• Maximum operating voltage up to +250V
• Bootstrap-operated floating high-side channel
• Compatible with 3.3V/5V input logic
• dV/dt immunity up to ±50V/ns
• Vs negative bias capability down to -9V
• Gate drive voltage range 8V to 20V
• High-side UVLO positive threshold 7.1V
• High-side UVLO negative threshold 6.9V
• Low-side UVLO positive threshold 7V
• Low-side UVLO negative threshold 6.6V
• Cross-conduction prevention dead-time logic, dead time set to 200ns
• Turn-on/turn-off propagation delay Ton/Toff = 150ns/120ns
• Delay matching time less than 50ns
• Wide temperature range -40~125°C
• Output stage source/sink current capability 1.5A/1.8A
• RoHS compliant
