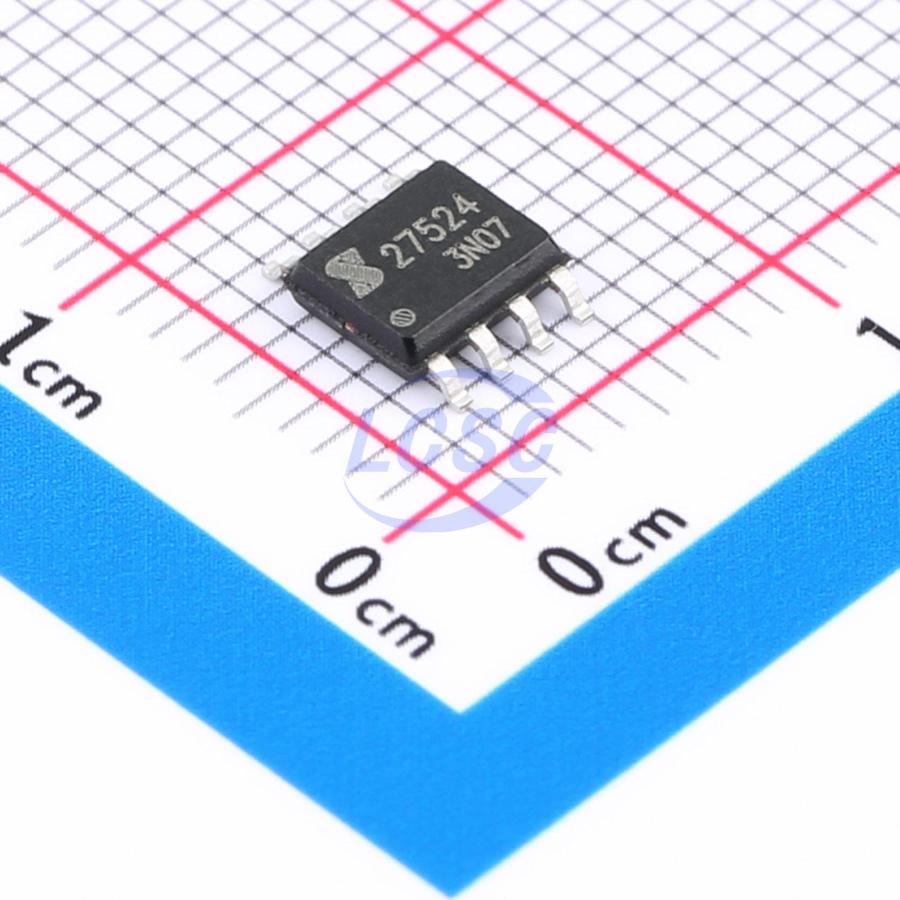

JSM27524STR
2 4A Active High 4.5V~20V Low Side Switch SOP-8 Gate Drivers RoHS
Dual-channel 4A ultra-high-speed power switch driver
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM27524STR
- Store part #
- C19673786
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,175 in stock
#C19673786
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.39 | ₹251.95 |
| 50+ | ₹39.66 | ₹1,983.00 |
| 150+ | ₹34.95 | ₹5,242.50 |
| 500+ | ₹29.16 | ₹14,580.00 |
| 2,500+ | ₹26.59 | ₹66,475.00 |
| 4,000+ | ₹25.08 | ₹1,00,320.00 |
5 × ₹50.39
₹251.95
excl. GST
₹297.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
JSM27524STR
₹251.95 for 5 + GST
Specifications
- Features
- Latch protection;Under-voltage lockout
- number of channels
- 2
- Maximum Continuous Current
- 4A
- Control Input Logic
- Active High
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+125℃
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
The JSM27524 device is a dual-channel, high-speed, low-side, gate-driver device capable of effectively driving MOSFET and IGBT power switches. It has a matching rise and fall time when charging and discharging the gate of the power switch. In addition, JSM27524 has a high degree of latch resistance under all conditions in its rated power and voltage range. JSM27524 is not damaged when noise spikes (any polarity) of up to 5V appear on the ground pin. JSM27524 can accept up to 500mA of reverse current without causing damage or logic confusion. All terminals are fully protected by ESD up to 2.0 kV. It can work in the temperature range of -40℃ to 125℃.
Applications
- line drivers
- Pulse transformer driver
- Driving MOSFETs and IGBTs
- Motor drives
- pulse generator
- Switch-Mode Power Supplies
- DC-to-DC Converters
- class D switching amplifier
Key features
- Latch Protection: withstand 0.5 A reverse current
- Ability to Handle Negative Voltages (-10 V) at inputs
- Low Output Impedance
- Two Independent Gate-Drive Channel
- Independent-Enable Function for Each Output
- 4-A Peak Source and Sink-Drive Current
- 4.5 to 20-V Single-Supply Range
- High Ability of driving capacitive load:
- Switch time at 1nF load < 25ns
- Rise/Fall time matching
- Fast Propagation Delays (40-ns Typical)
- Operating Temperature Range of -40 to 125℃
- Turn on/Turn off Delays:
- Ton/Toff = 70ns/70ns
- The RoSH Standard SOIC8/DFN8
