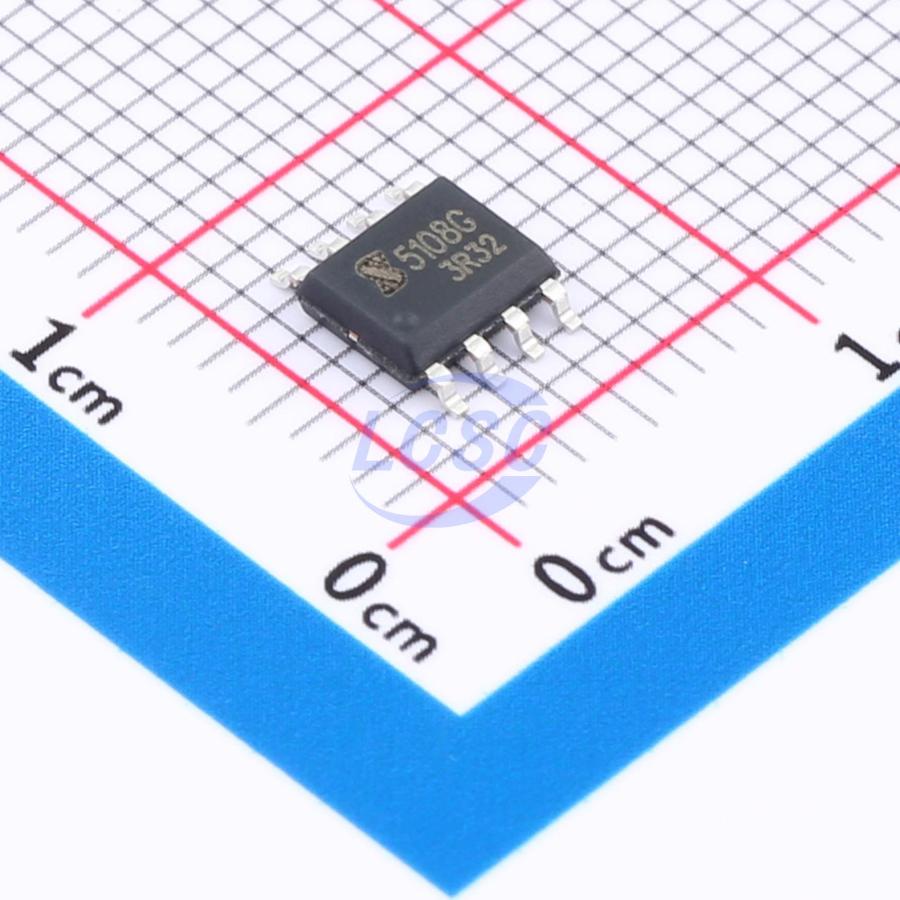

JSM5108G
6V~20V 1.5A 1.2A SOP-8 Gate Drivers RoHS
Single-phase high-level inverting and low-level non-inverting power gate driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM5108G
- Store part #
- C19077360
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,295 in stock
#C19077360
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.90 | ₹109.50 |
| 50+ | ₹17.52 | ₹876.00 |
| 150+ | ₹15.64 | ₹2,346.00 |
| 500+ | ₹13.30 | ₹6,650.00 |
| 2,500+ | ₹12.25 | ₹30,625.00 |
| 4,000+ | ₹11.63 | ₹46,520.00 |
5 × ₹21.90
₹109.50
excl. GST
₹129.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
JSM5108G
₹109.50 for 5 + GST
Specifications
- Quiescent Current
- 190uA
- Voltage - Supply
- 6V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side;High Side
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 50ns
- Fall Time
- 40ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
The JSM5108G is a high voltage, high speed power MOSFET drivers with dependent high- and low- side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross- conduction. The floating channel can be used to drive an N- channel power MOSFET in the high- side configuration which operates up to 200 V.
Applications
- Motor Control
- Air Conditioners/Washing Machines
- General Purpose Inverters
- Micro/Mini Inverter Drives
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +250 V
- 3.3V, 5V and 15V input logic compatible
- dV/dt noise Immunity ±50 V / msec
- Allowable negative Vs capability: - 9V
- Gate drive supply range from 6 V to 20V
- Cross- conduction prevention logic
- Deadtime: 200ns
- Matched propagation delay for both channels
- Wide operating temperature range - 40°C ~ 125°C
- Typically output Source/Sink current capability: 1.2A/1.5A
- RoSH compatible
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | JSM2203STR#C44606289JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | On request | Price on request | Quote |
